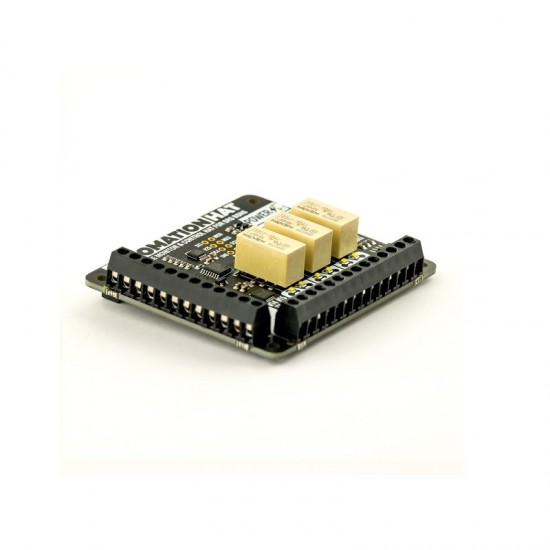

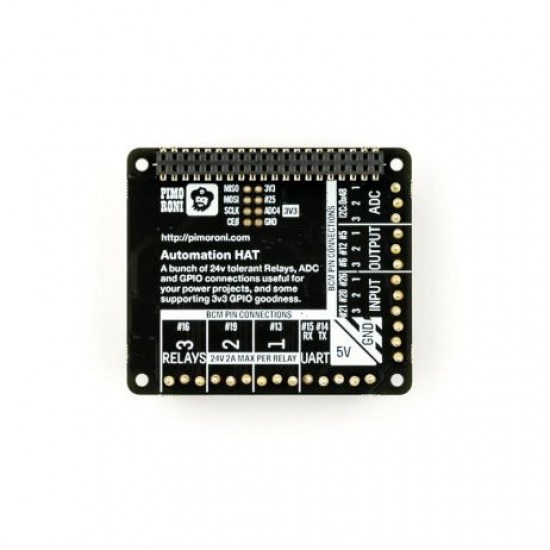

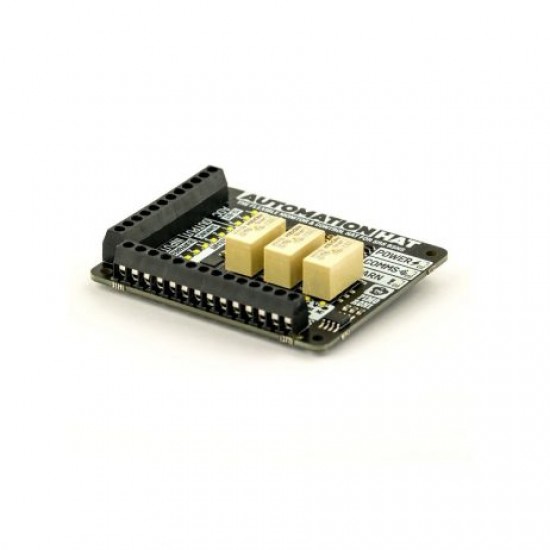

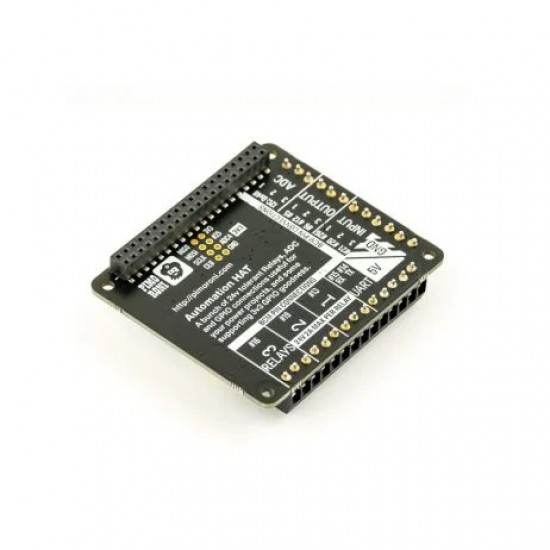

This Pimoroni Automation HAT comes with relays, analog channels, powered outputs, and buffered inputs (all 24V tolerant) you can now hook up a plethora of goodies to your Raspberry Pi all at once.

Better still each channel has indicator LEDs which means at a glance you can see what’s happening with your setup. Even the analog channels have dimming LEDs that allow you to see the value they are currently sensing – swish!

Ideal for smart home and automation projects, giving your greenhouse intelligent sprinklers, or scheduling your fish feeding!

Notes

We recommend you use a set of brass M2.5 standoffs with Automation HAT to avoid pins contacting the HDMI port if the HAT is pushed down

Loads for the buffered outputs should be switched on the ground side, i.e. 12/24V (from supply) -> load -> output terminal -> ground (from the supply)

The relays can tolerate up to 2A each and should be switched on the high side

The sinking outputs can sink a maximum of 500mA total across the 3 outputs, so if you use a single channel you can sink the whole 500mA across it.

The accuracy of the ADC is ±2%.

Do not use to switch mains voltages!

Features:

  • Three 24V @ 2A relays (NC and NO terminals)
  • Three 12-bit ADC @ 0-24V (±2% accuracy)
  • Three 24V tolerant buffered inputs and 24V tolerant sinking outputs
  • Fifteen channel indicator LEDs
  • One 12-bit ADC @ 0-3.3V
  • 3.5mm screw terminals
  • Power, Comms, and Warn! LED indicators
  • SPI, TX (#14), RX (#15), #25 pins broken out
  • Compatible with all 40-pin header Raspberry Pi models
  • Comes fully assembled (broken out pins require soldering)

Package Includes:

1 x Pimoroni Automation HAT
