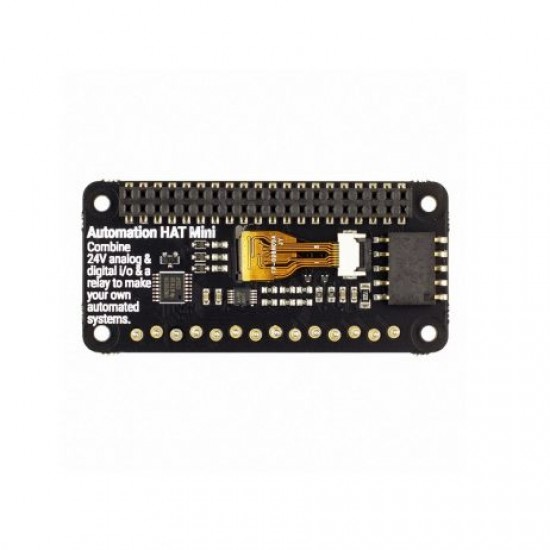

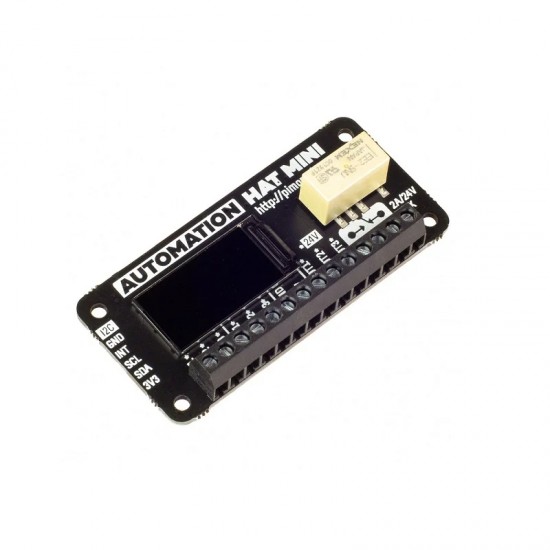

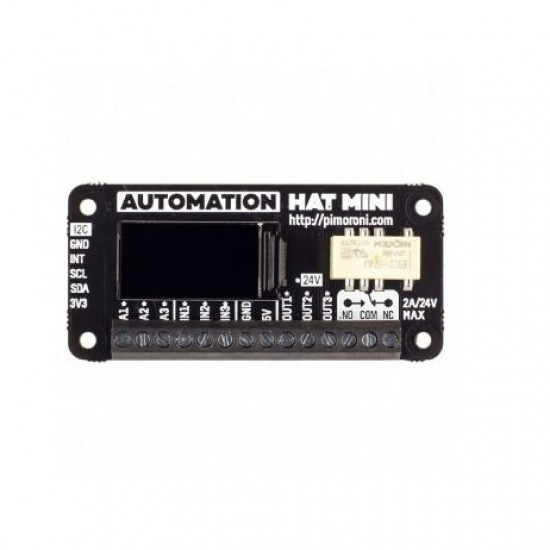

PIMORONI Automation HAT Mini for Raspberry Pi

PIMORONI Automation HAT Mini for Raspberry Pi
PIMORONI Automation HAT Mini for Raspberry Pi
PIMORONI Automation HAT Mini for Raspberry Pi
PIMORONI Automation HAT Mini for Raspberry Pi
PIMORONI Automation HAT Mini for Raspberry Pi
PIMORONI Automation HAT Mini for Raspberry Pi
PIMORONI Automation HAT Mini for Raspberry Pi
Based on 0 reviews. - Write a review
₹1,899.00
Ex GST: ₹1,609.32
  • Stock: In Stock
  • Model: 9480
  • SKU: SAT3650
  • Location: India
PIMORONI PIMORONI
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Automation HAT Mini packs a whole bunch of functionality in. It has a relay, three buffered inputs, three outputs, and three analog inputs, all 24V-tolerant. Last but not least, it has a beautiful 0.96″ full-colour IPS LCD to display the status of your systems.

Automation HAT Mini is perfect for home automation projects, giving your greenhouse intelligent sprinklers, for scheduling your fish feeding, or for controlling low-voltage lighting systems.

Notes:

Loads for the outputs should be switched on the ground side, i.e. 12/24V (from supply) -> load -> output terminal -> ground (from the supply)

The relay can tolerate up to 2A each and should be switched on the high side

The sinking outputs can sink a maximum of 500mA total across the 3 outputs, so if you use a single channel you can sink the whole 500mA across it.

The accuracy of the ADC is ±2%.

Do not use to switch mains voltages!

Features:

  • 0.96″ colour LCD (160×80)
  • One 24V @ 2A relay (NC and NO terminals)
  • Three 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy)
  • Three 24V tolerant buffered inputs and 24V tolerant sinking outputs.
  • 3.5mm screw terminals
  • Pimoroni breakout-compatible pin header
  • Mini HAT-format board
  • Fully-assembled (no soldering required)
  • Compatible with all 40-pin header Raspberry Pi models

Package Includes:

1 x Pimoroni Automation HAT Mini

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
