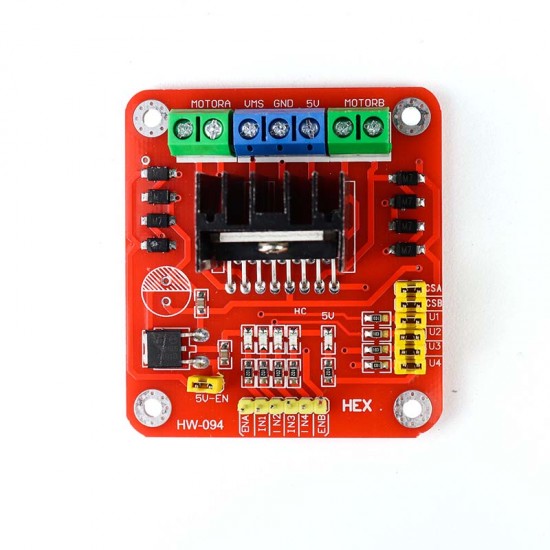

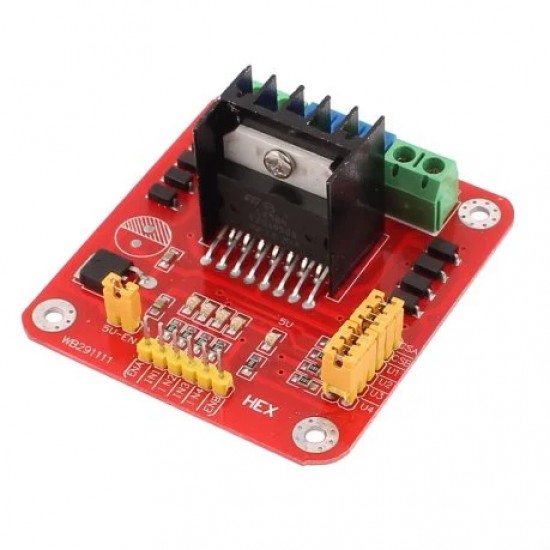

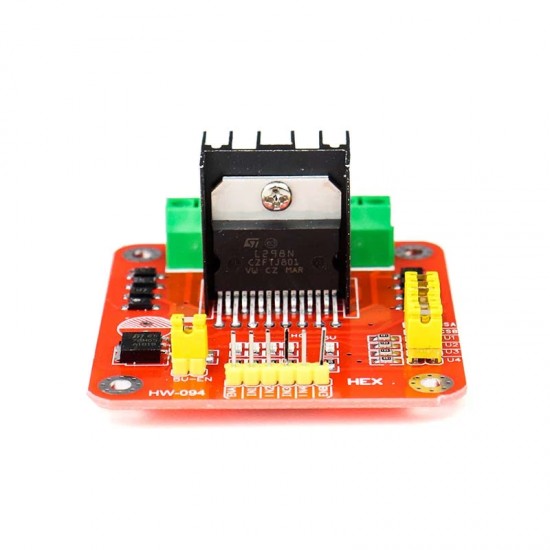

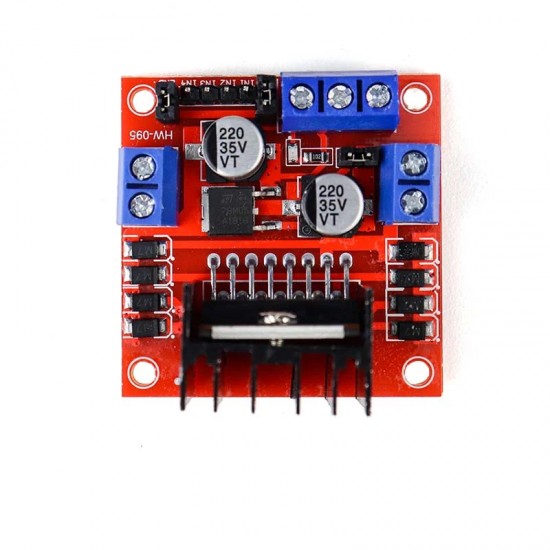

L298N Dual H Bridge DC/Stepper Motor Driver Controller Module

Based on 0 reviews. - Write a review

₹249.00

Ex GST: ₹211.02

Stock: In Stock
Model: 10278
SKU: SAT4448
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

This motor driver for DC Motors and Stepper Motor is widely popular because it uses the famous L298N Dual H Bridge Driver Chip. This motor driver is optimized for maximum performance at a cost everyone can afford.

The L298N Dual H Bridge DC/Stepper Motor Driver Controller Module is for driving two robot motors. It uses the popular L298N Dual H-Bridge Motor Driver chip and is powerful enough to drive motors from 5-35 Volts at up to 2 Amps per channel. The flexible digital input controls allow each motor to be fully independent with complete control over speed direction and braking action.

This board provides a handy 5V regulator that can be used to power other circuitry such as your robot’s microcontroller. Its modular design is easily adapted to a wide variety of robot controllers including the popular Arduino family.

This L298N driver module adopts the original brand new L298N chip from ST company. It uses the SMT process and high-quality aluminum electrolytic capacitor to stabilize the circuit. The module can easily control the DC motor speed and direction, also control the 2 phase stepper motor.

We have the range of Motor Drivers used in Robotic Applications to control Servo’s, Stepper Motors, DC Motors etc., you can check them by clicking on the name below,

Motor Drivers

Features :

Popular L298N Dual H-Bridge Motor Driver chip

Drivers motors from 5-35V at up to 2A per channel

Provides 4 LEDs that reflect the state of the control logic

Independent direction, speed, and braking for each motor

Screw terminals for easy connections to motors and power

Includes a heavy-duty heat sink for maximum performance

Easy to interface with most robot controllers

Supports current sensing

Handy power LED

Package Includes :

1 x L298N Dual H Bridge DC Stepper Motor Driver Controller Module
