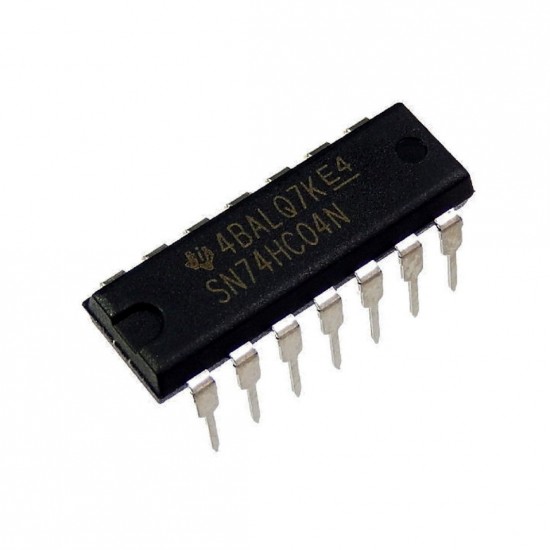

IC 74HC04 Hex Inverter Dip

IC 74HC04 Hex Inverter Dip
IC 74HC04 Hex Inverter Dip
Based on 0 reviews. - Write a review
₹20.06
Ex GST: ₹17.00
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7526
  • SKU: SAT1688
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

74HC04 is Hex Inverter NOT gate IC. It consists of six inverters which perform logical invert action. The output of an inverter is the complement of its input logic state i.e. when input is high its output is low and vice versa. The device contains six independent gates each of which performs logic INVERT function. The operating voltage is 5V, the high-level input voltage is 2V, and the low-level input is 0.8V. It contains absolute maximum ratings over operating free-air temperature range, recommended operating conditions, electrical characteristics over recommended operating free-air temperature range.

Features:-

  • 6 Hex Inverters in a 14-Pin DIP Package
  • Outputs Directly Interface to CMOS, NMOS, and TTL
  • Large Operating Voltage Range
  • Wide Operating Conditions

Specifications:-

  • Type: DIP Bipolar
  • Voltage Rating: 4.75 to 5.25V
  • Current Rating: Max. 16mA Output
  • Temperature Rating: 0 to 70Deg C
  • Number of: 14 Pins
  • Mounting: Through Hole

Package Includes:

1 x IC 74HC04 Hex Inverter Dip

 Product Images are shown for illustrative purposes only and may differ from actual product.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
