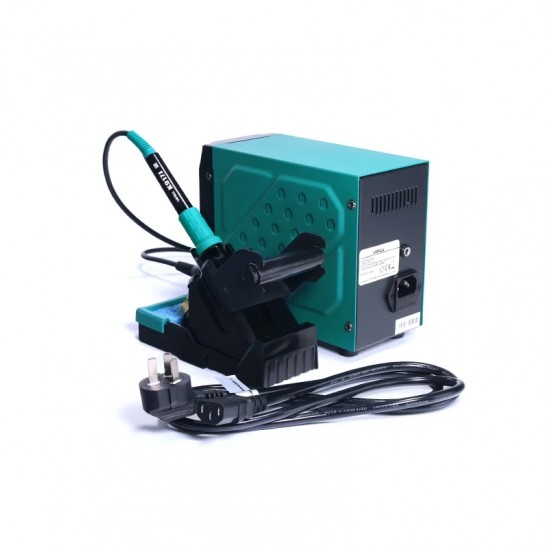

Yihua 939D+ Iv Temperature – Adjustable Soldering Station

Based on 0 reviews. - Write a review

₹6,798.99

Ex GST: ₹5,761.86

Stock: In Stock
Model: 10006
SKU: SAT4176
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

939D+ Iv has a great new feature that will keep it in the ranks of one of the best soldering iron stations. The model 939D+ Iv is digitally controlled by a Dual Core Microcomputer Processor which helps give much more stability, durability, and reliability to this unit. This unit now also features Magic Temperature Compensation technology which is the result of incorporating PID(Proportional, Integral, Derivative) Technology into our product. This allows for quick temperature correction ( in milliseconds ) to maintain tip temperature stability on any IC board you are working on. (“Magic Temperature Technology” sometimes known as Programmable Control Technology is one of the most sophisticated types of heat control systems in the world today. ) This model also has 3 “Preset Memory Functions” that can be used in soldering iron stations. You can also program the soldering iron to go into a “Sleep Mode” after your desired minutes of non-use (0 – 99 minutes), which is very convenient and energy save.

Features:

Rapid heating from room temperatures of 30℃ up to 300 ℃
The station’s performance, precision and stability satisfy the work standards of professional hand soldering, micro- soldering, mobile phone repair, laptop repair, circuit board repair, test lab usage, educational usage and other fields of application.
Rotatable display screen. It is convenient to adjust the display screen position via slight press
Equipped with a ground wire to remove static electricity
X2 type solder holder include a cleaning kit (rosin + brass wool ball), a cleaning sponge, a residue tray with protective edge, a solder spool holder, a row of tip storage slots in a single holder package. It can store, clean, and protect soldering iron.
Specifications:
Model : 939D+-IV
Rated voltage range: 220V-240V/AC ,50HZ
Maximum power: 120W
Rated power: 24W
Dimensions: 200 x 90 x 156mm ±5mm
Operating ambient temperature: 0℃-40℃/32℉-104℉
Temperature range: 200-480℃/392-896℉
Display: LED Nixie
Soldering iron tip to ground resistance: ＜2 ohms
Net weight: 2.83KGS/PC
Gross weight: 18KG/CTN
Q’TY: 6 PCS/CTN
Inner box size: 625.8 x 22.3 x 18CM
Out carton box size: 46 x 27.3 x 59 CM

Packages Includes:

1 x Machine

1 x Iron handle

1 x X-2 type solder iron holder

1 x User Manual

1 x Power cable

1 x Anti-static ground wire

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
