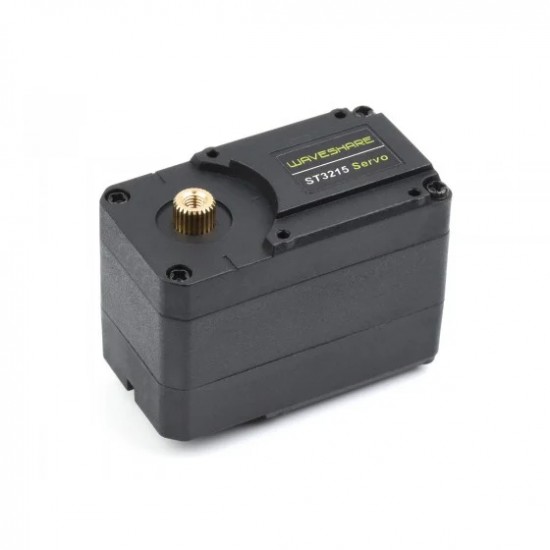

Waveshare 30KG Serial Bus Servo

Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Waveshare 30KG Serial Bus Servo
Based on 0 reviews. - Write a review
₹2,249.00
Ex GST: ₹1,905.93
  • Stock: In Stock
  • Model: 10165
  • SKU: SAT4335
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

30KG Serial Bus Servo, High Precision And Torque, With Programmable 360 Degrees Magnetic Encoder, Two-Way Feedback, Servo/Motor Mode Switchable. Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control.

An ideal choice for building quadruped robots, hexapod walkers, robotic arms, and other robotic projects requiring multiple servos.

Up To 30kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms, And Other Robotic Projects Requiring Multiple Servos Adopts a 12-bit high-precision magnetic encoding angle sensor. Compared with the potentiometer, the angle is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the servo is effectively extended.

Application:

Quadruped Robots

Hexapod Walkers

Robotic Arms

Other Robotic Projects Requiring Multiple Servos

Features:

Dual Modes: Servo Or Motor

Acceleration Start-Stop Function

High Precision And Torque

Programmable 360 Degrees Magnetic Encoder

Up To 30kg.Cm Torque On 12V Voltage

One Button To Calibrate The Middle Position

Adopts 12-bit high-precision magnetic encoding angle sensor

Allows Controlling Up To 253 Serial Bus Servos At The Same Time

The Servos Will Provide Various Feedback Like Position, Load, Speed And Input Voltage In Real Time

Package Includes:

1 x Waveshare 30KG Serial Bus Servo




6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
