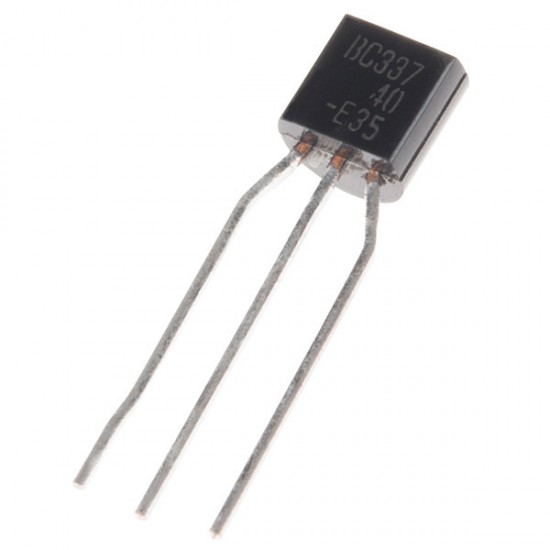

Transistor BC337 | NPN Transistor

Transistor BC337 | NPN Transistor
Transistor BC337 | NPN Transistor
Based on 0 reviews. - Write a review
₹11.80
Ex GST: ₹10.00
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7551
  • SKU: SAT1713
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The BC337 is an NPN transistor with a maximum gain of 630, commonly used in low power audio applications. It can also switch loads up to 45V and 800mA hence also used as general purpose transistor.

Pin Configuration :

Pin Number

Pin Name

Description

1

Collector

Current flows in through collector, normally connected to load

2

Base

Controls the biasing of the transistor, Used to turn ON or OFF the transistor

3

Emitter

Current Drains out through emitter, normally connected to ground

 Features:

  • General Purpose NPN Amplifier Transistor
  • Current Gain (hFE), 100 to 630
  • Continuous Collector current (IC) is 800mA
  • Collector-Emitter voltage (VCEO) is 45 V
  • Collector-Base voltage (VCB0) is 50V
  • Emitter-Base Voltage (VBE0) is 5V
  • Transition Frequency 100MHz
  • Available in To-92 Package


Package Content:

1 x BC337 Transistor
