TM1638 8-Bit Button Digital LED Display Module

TM1638 8-Bit Button Digital LED Display Module
TM1638 8-Bit Button Digital LED Display Module
TM1638 8-Bit Button Digital LED Display Module
TM1638 8-Bit Button Digital LED Display Module
TM1638 8-Bit Button Digital LED Display Module
TM1638 8-Bit Button Digital LED Display Module
TM1638 8-Bit Button Digital LED Display Module
Based on 12 reviews. - Write a review
₹245.00
Ex GST: ₹207.63
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7209
  • SKU: SAT1371
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

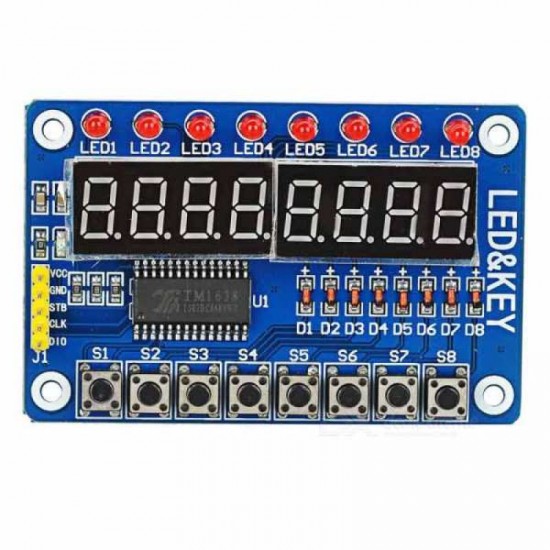

The TM1638 Button Digital LED Display Module is used in chip TM1638, a collection of these three common MCU peripheral circuit, the biggest feature just takes three microcontroller IO port to drive, do not need to scan display and key scanning microcontroller intervention, only need to read the relevant register send display data or test button, save MCU resources.

We usually use an external microcontroller 8 LED, 8 digital tubes, eight keys which will occupy the number of IO ports, far more than three IO mouth it, but with this module can be achieved. The practical application of key sensitive display good results. Wiring: VCC GND connected to 5V power supply, STB CLK DIO connected microcontroller IO port. The module comes with 8 buttons, 8 LED, 8 digital tubes, a common cathode LED digital tube, such as an STC microcontroller can be directly connected.


Features:

  • Use TM1638 digital tube drive chip to drive a common cathode LED digital tube.
  • Can be extended to 3 * 8 buttons, led digital tube, and can be controlled separately.
  • Support 8 brightness control, led digital tube, and use the same brightness.
  • Support cascading up to 6 of the same module.
  • Wiring: VCC GND connected the 5V power supply, STB CLK DIO connected microcontroller IO port.
  • 8 LED, 8-bit digital tube, and 8 buttons, common cathode LED digital tube, such as STC microcontroller can be directly connected.

Package Includes:
1 x TM1638 Button Digital LED Display Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
