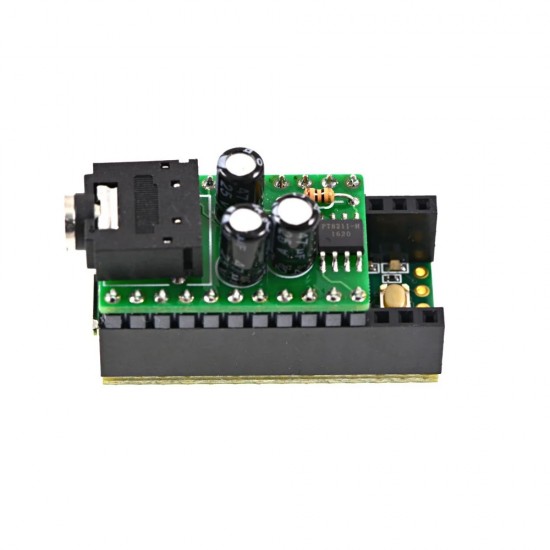

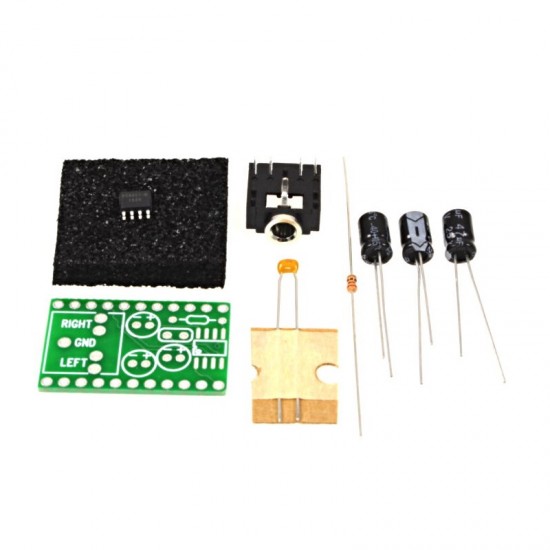

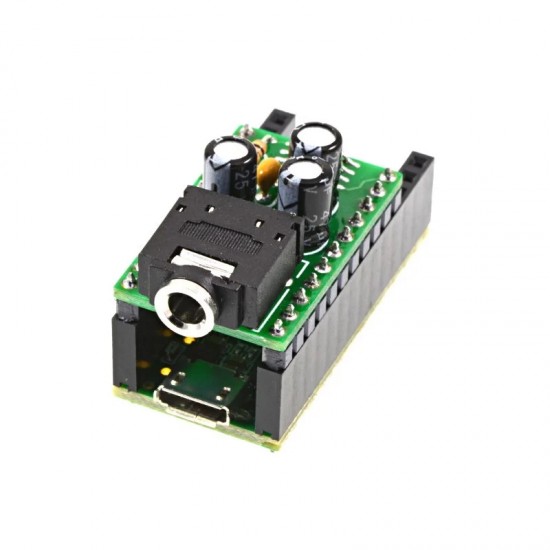

PT8211 Unassembled Audio Kit for Teensy 3.x

Based on 0 reviews. - Write a review

₹249.00

Ex GST: ₹211.02

Stock: In Stock
Model: 9119
SKU: SAT3289
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

PT8211 is a dual channel, 16 bit Digital-to-Analog Converter IC utilizing CMOS technology specially designed for the digital audio applications. The internal conversion architecture is based on an R-2R resister ladder network, an internal circuit is well matched and a 16 bit dynamic range is achieved even in whole supply voltage range.

PT8211 also enhanced the performance of timing responsibility in a digital serial bus, in a company with the fast switching R-2R network that makes 8X oversampling audio signal is also supported. PT8211 can be supported by a wide range of sample frequency, it is compatible with TDA1311 by functionally. Its digital input timing format is Least Significant Bit Justified(LSBJ), or so-called Japanese input format. Digital code format is two’s complement and MSB first. PT8211 is available in 8-pin SO or DIP package.

Application:

Digital Audio Equipment

CD ROM/VCD

Multimedia Sound Card

MPEG Decoder Card

Pin Configuration:

Signal	Teensy Pin	PT8211 Pin
BCK	9 1	1
DIN	22	3
WS	23	2
+3.3V	3.3V	5
GND	GND	4
