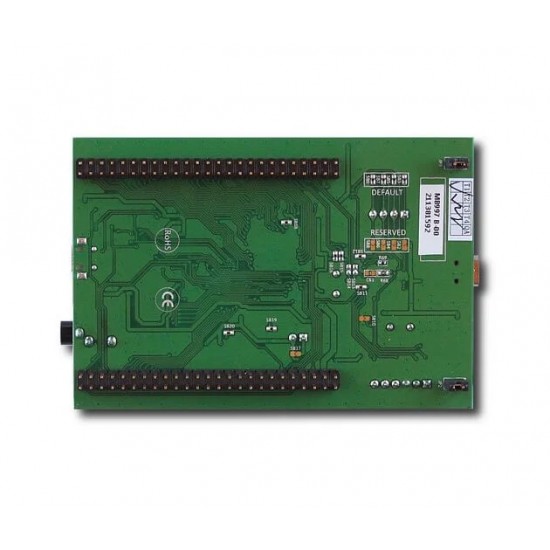

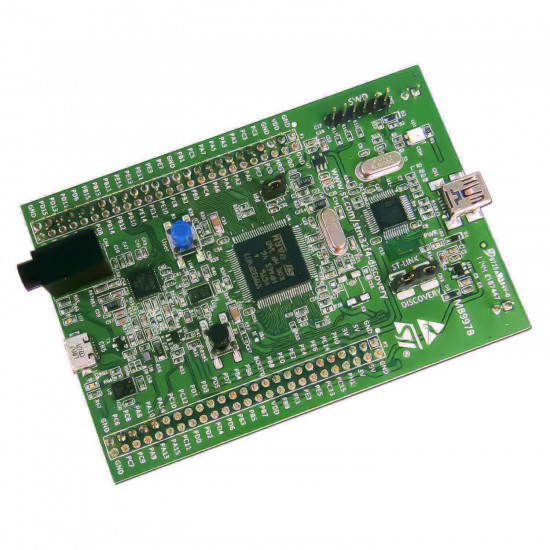

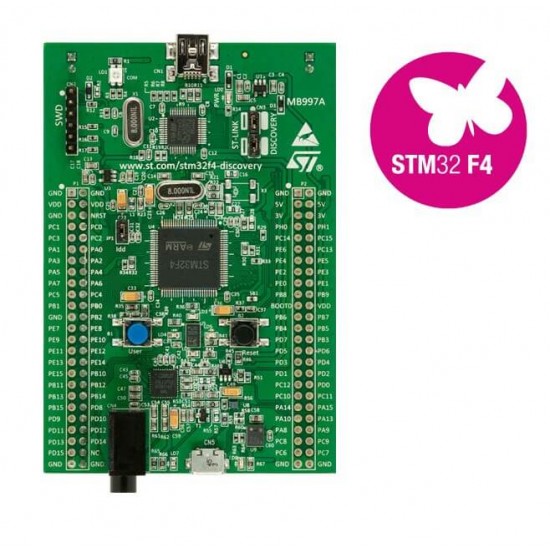

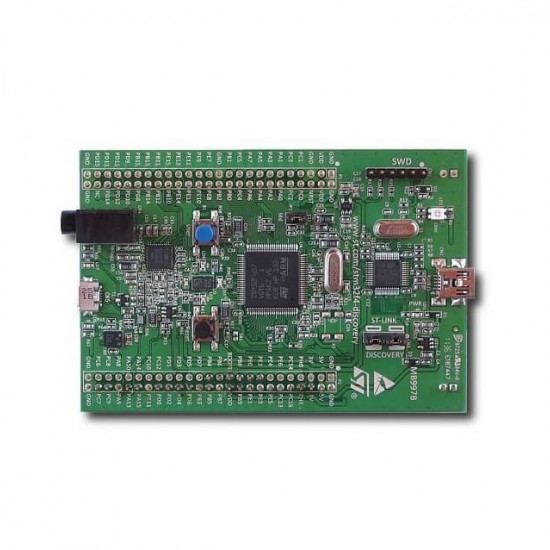

STM32F407 Discovery Kit

Based on 0 reviews. - Write a review

₹3,456.00

Ex GST: ₹2,928.81

Stock: In Stock
Model: 9111
SKU: SAT3281
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

The STM32F407 Discovery Kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to easily develop applications featuring audio. It includes an ST-LINK embedded debug tool, one ST-MEMS digital accelerometer, a digital microphone, one audio DAC with the integrated class D speaker driver, LEDs, push-buttons, and a USB OTG micro-AB connector.

To expand the functionality of the STM32F4 DISCOVERY kit with Ethernet connectivity, LCD display, and more, visit the www.st.com/stm32f4dis-expansion webpage. With the latest board enhancement, the new order code STM32F407G-DISC1 has replaced the old reference STM32F4 DISCOVERY.

Features:

STM32F407VGT6 microcontroller featuring 32-bit ARM® Cortex® -M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
On-board ST-LINK/V2 on STM32F4 DISCOVERY (old reference) or ST-LINK/V2-A on STM32F407G-DISC1 (new order code)
USB ST-LINK with re-enumeration capability and three different interfaces:
Debug port
Virtual Com port (with new order code only)
Mass storage (with new order code only)
Board power supply: through USB bus or from an external 5 V supply voltage
External application power supply: 3 V and 5 V
LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
MP45DT02 ST-MEMS audio sensor omnidirectional digital microphone
CS43L22 audio DAC with integrated class D speaker driver
Eight LEDs:
LD1 (red/green) for USB communication
LD2 (red) for 3.3 V power on
Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
Two push-buttons (user and reset)
USB OTG FS with micro-AB connector
Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 to use legacy standard libraries.

Package Includes:

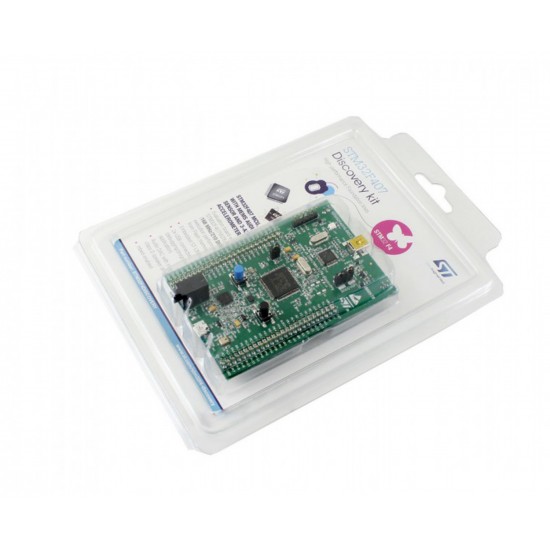

1 x STM32F407 Discovery Kit
