- Stock: In Stock
- Model: 10229
- SKU: SAT4399
- Location: India

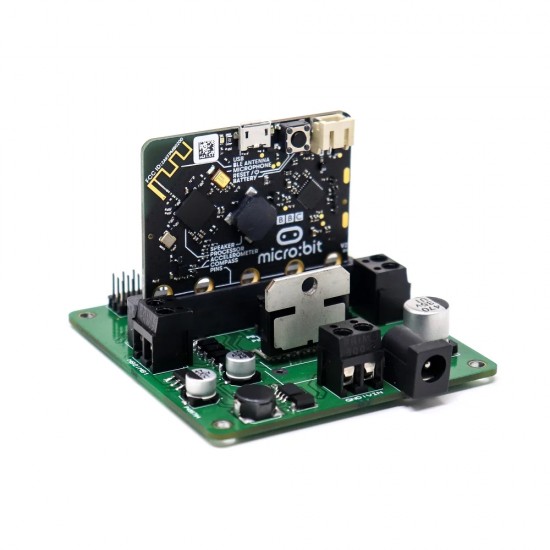

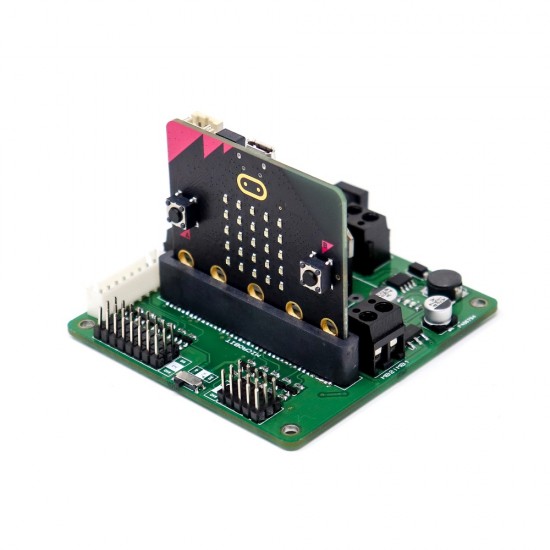

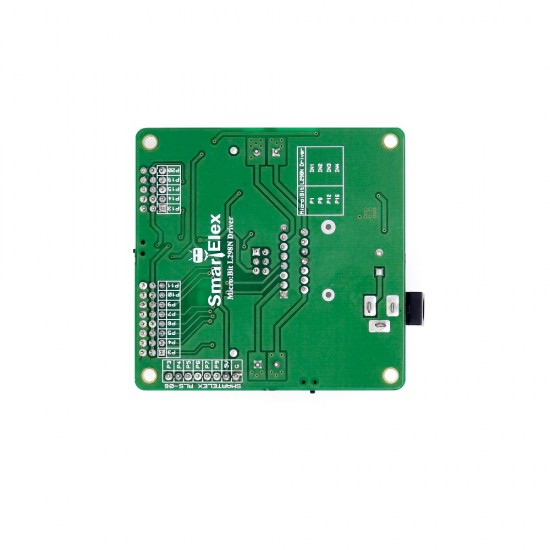

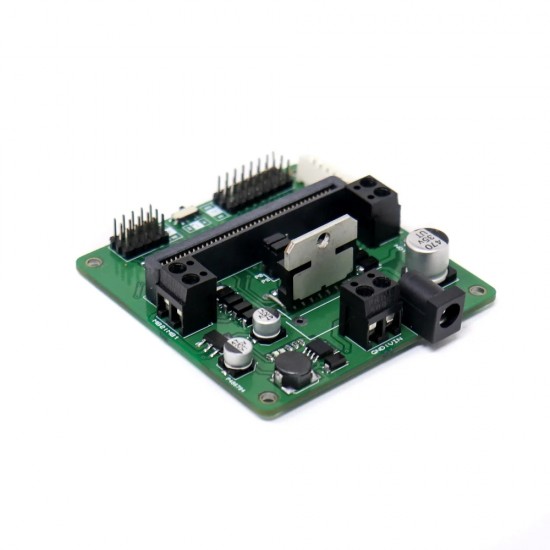

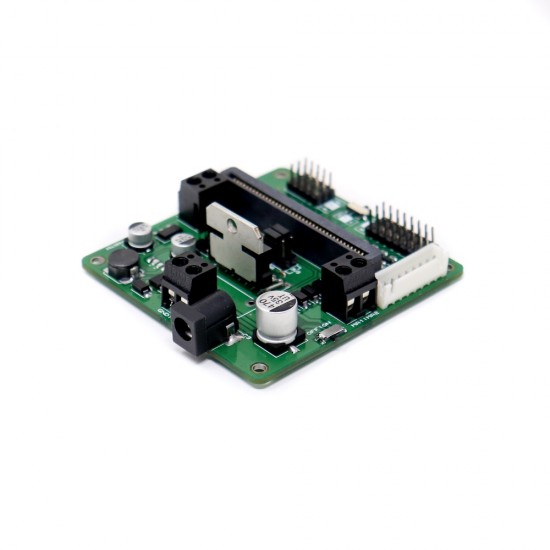

SmartElex Micro:Bit L298n Driver is a motor driver based on micro:bit. It is integrated with L298n motor driving chip, which is used to drive two motors with a 2A peak DC single-channel current.
It has also integrated 13 SVG ports and 1 I2C communication port, These ports allow you to extend with various sensors and electric modules. On the board, P3-P7, P9-P11 are IO ports for directly driving 3.3V devices; P13-P15(SPI port), P19-P20(I2C port) support 3.3V/5V voltage switch. Sliding the voltage switch onboard, it is available to drive 3.3V or 5V devices.
The ‘SmartElex’ holds a varied product range like Motor Divers, Development Boards, Sheilds and Hats for Arduino & Raspberry Pi, Smart Battery Chargers, and many wireless communication devices. These are designed & manufactured in India with Assured Quality and 6 months of manufacturing warranty provided. This motor driver is highly reliable, robust, and made available at a very cheap price for makers of INDIA.
SmartElex Micro:Bit L298N Motor Driver is one more addition to SmartElex’s product portfolio to provide more smartness to your application..!
Pin Diagram:
SmartElex Micro:Bit L298n Driver
Applications:
In robotics
Wipers
Versatile electronic devices
Electronics DIY projects
Note: Micro:Bit is not included in the package you have to buy it Separately. Below is the link for BBC Micro: Bit v2
BBC Micro Bit V2 Pocket Sized Single Board Computer
Features:
- Wide 7 V to 24 V motor operating voltage.
- Continuous 1A maximum current without a heat sink.
- Two brushed DC motor bidirectional control.
- PWM frequency up to 20 kHz.
- Supports 5v and 3v Sensors
- Power Status LED.
- 5 mm standard DC plug-in jack for Input supply.
- On-Board DC motor Driver L298N.
- For more detailed Specifications, Programming Code, and User Manual refer to the datasheets in the Attachment section.
Package Includes:
1 x SmartElex Micro:Bit L298N Motor Driver (without Mico:Bit)
