SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing

SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing
Based on 0 reviews. - Write a review
₹2,339.00
Ex GST: ₹1,982.20
  • Stock: In Stock
  • Model: 9898
  • SKU: SAT4068
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

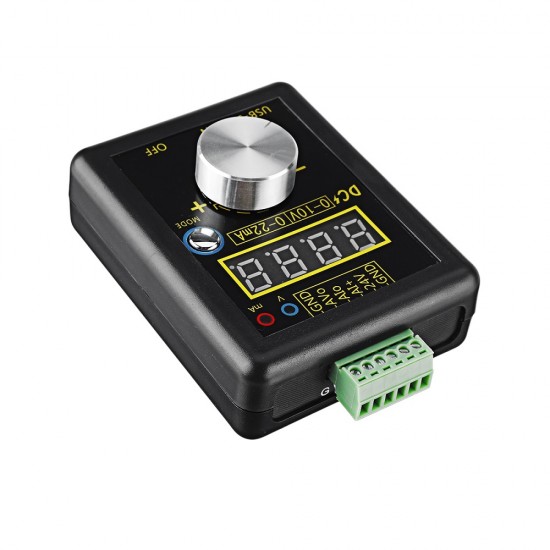

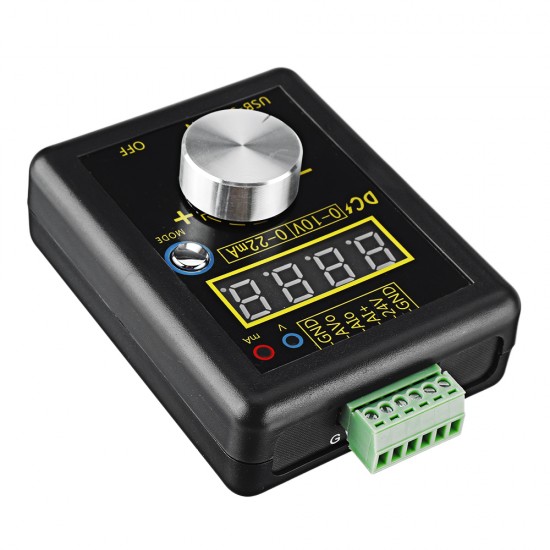

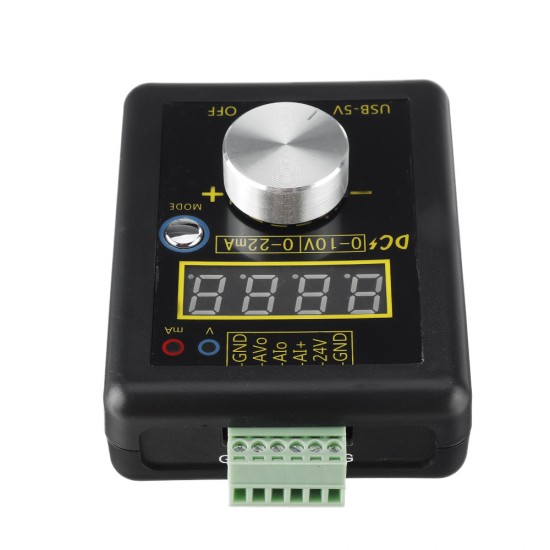

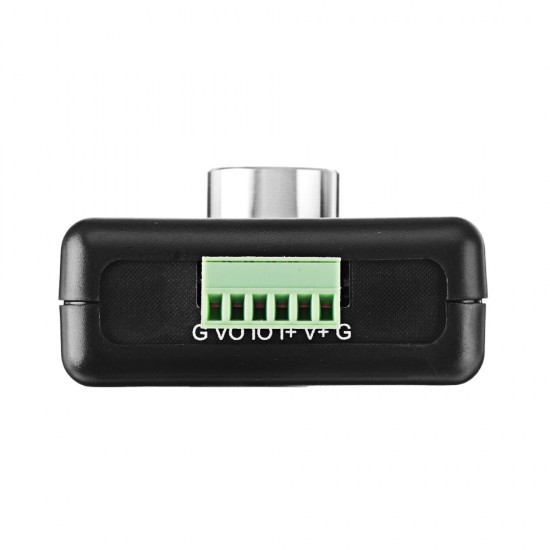

SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing is designed to simulate 0-12V voltage signal and 0-24mA current signal for PLC and panel Debugging, Device Testing, Frequency Converter, Flow Valve, etc. Very easy to use, it can be connected with micro USB 5V power supply. What’s more, it can display 4 different types of digits, 0-12V voltage, 0-24mA current, 0-100 percent, and 0-50HZ. It plays an important role in your electronics work.

Features:

  • Power Supply: external micro USB-5V.
  • Voltage Output: 0-12V, precision is 0.01V, rotate the encoder knob to adjust the output voltage, can be calibrated.
  • Current Output: 0-22mA, precision is 0.01mA, rotate the encoder knob to adjust output current, can be calibrated.
  • Multiple Display: just push the small button to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display.

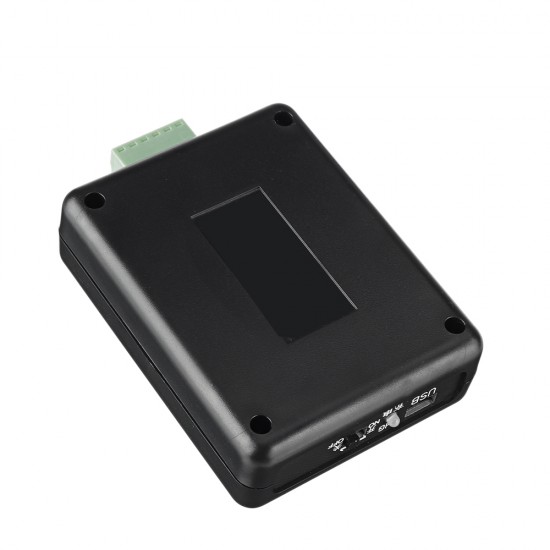

  • Product Dimension: 3.94” x 2.36” x 0.98” (100mm x 60mm x 25mm), portable and convenient. Note: optional 803040 battery expansibility (battery not included).

Package Includes:

1 x SG-002 Analog 0-12V 4-20mA Signal Generator for PLC and Panel Debugging & Device Testing

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
