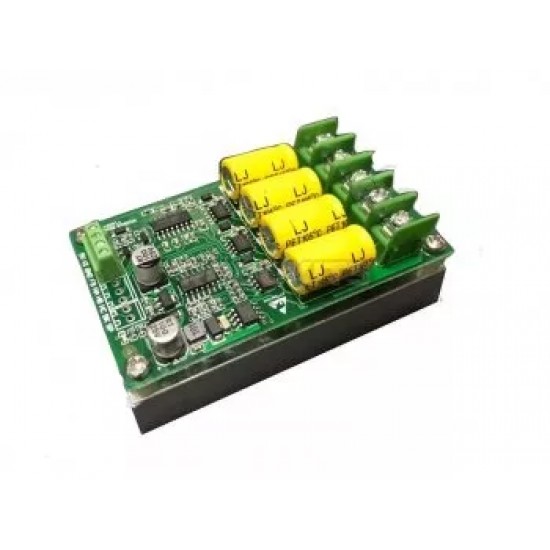

SENSORLESS BRUSHLESS DC MOTOR DRIVE 300W (BLDC DRIVE) PWM SPEED REGULATION

SENSORLESS BRUSHLESS DC MOTOR DRIVE 300W (BLDC DRIVE) PWM SPEED REGULATION
SENSORLESS BRUSHLESS DC MOTOR DRIVE 300W (BLDC DRIVE) PWM SPEED REGULATION
Based on 0 reviews. - Write a review
₹2,808.00
Ex GST: ₹2,379.66
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7929
  • SKU: SAT2091
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This drive is a three-phase DC brushless Hallless control board. Speed of the BLDC motor can be controlled with PWM. To change direction of motor,FB pin should be HIGH.

Features

  • Working voltage: DC 6-60V

  • PWM Speed regulation

  • Watt: 300W

  • Rated Current: 16A

  • Peak Current: 20A

  • Support PLC / 0-5V analog signal control

  • Brushless Hallless DC Motor Driver

  • Maximum speed: 30,000 rpm (one-pole motor)

  • Overcurrent protection: Yes

  • Dimension: 80mm (L) x 45mm (W) x 37mm (H)

  • Weight: 100 g

Interface Description

  • The ABC  output is connected to the motor three phases.

  • HA HB HC  is Hall three-phase input, corresponding to the motor ABC phase (Hall controller is not connected).

  • VCC & GND is controller power supply, voltage range 6-60V.

  • SP  speed pulse signal output, change one phase to output one pulse.

  • FB  is direction Pin (To change direction of motor,FB pin should be High).

  • VI  PWM speed signal input
