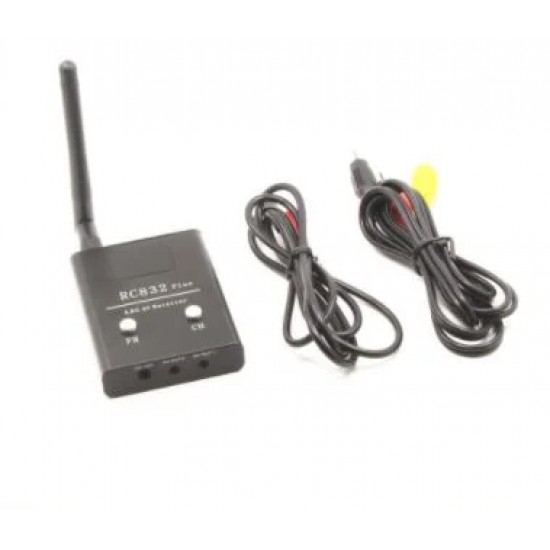

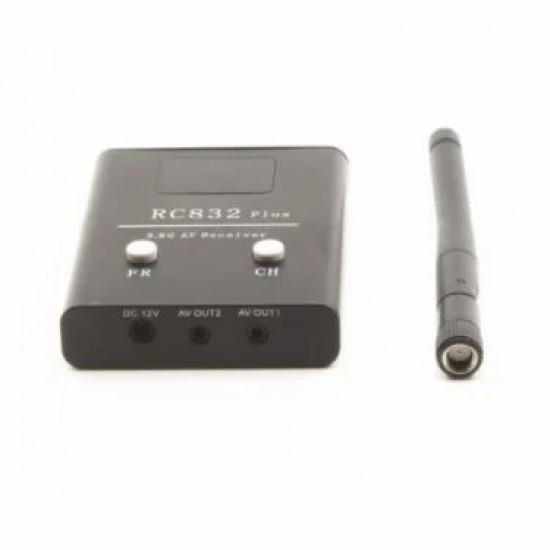

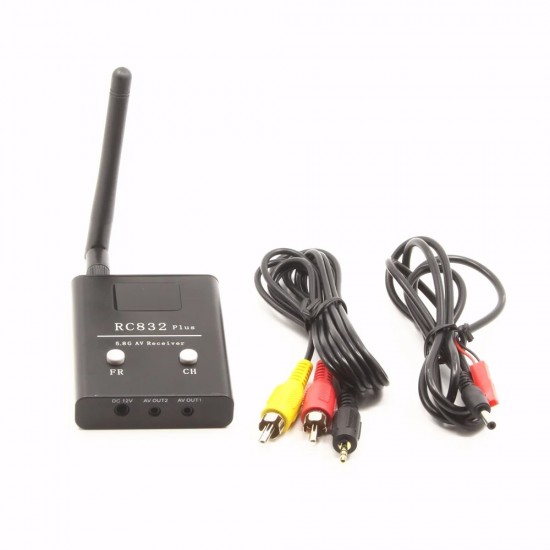

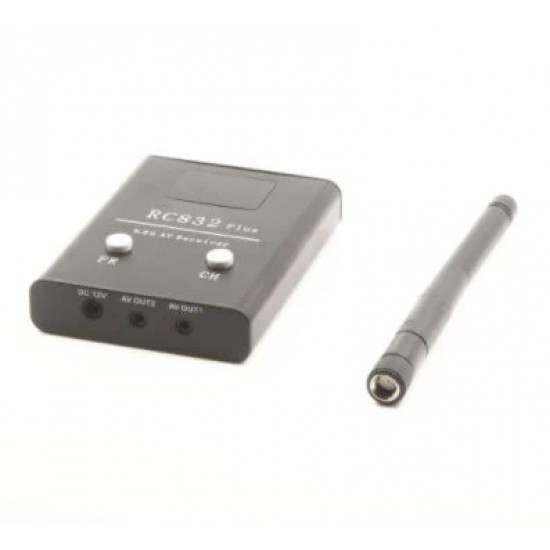

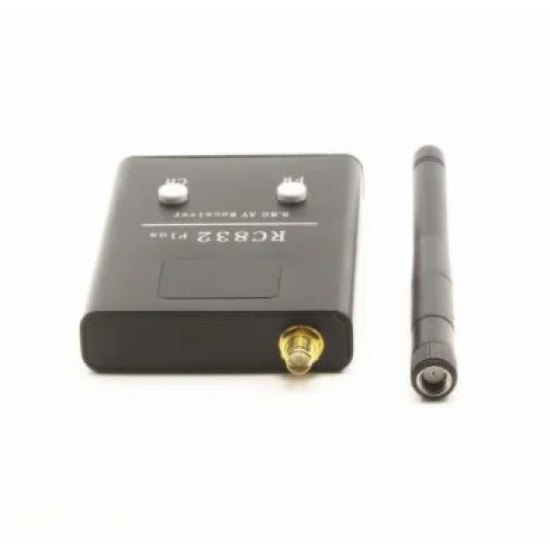

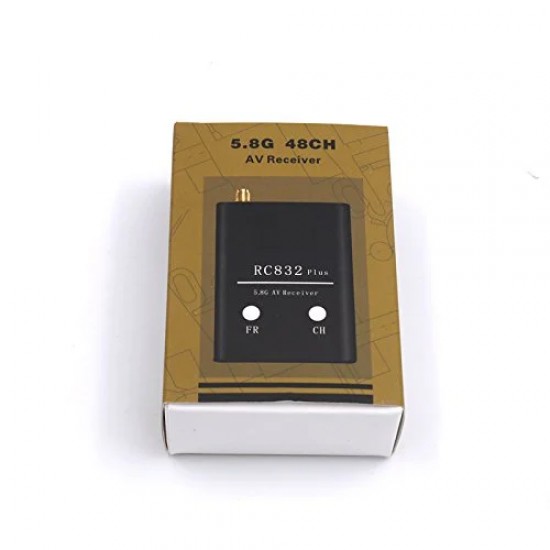

RC832 Plus 5.8G 48CH Wireless AV Receiver

RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
RC832 Plus 5.8G 48CH Wireless AV Receiver
Based on 0 reviews. - Write a review
₹2,089.00
Ex GST: ₹1,770.34
  • Stock: In Stock
  • Model: 8166
  • SKU: SAT2328
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The RC832 Plus 5.8G 48CH AV Receiver is all new 48 channel AV receiver. Small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two-button interface as the TS832 Transmitter making channel swapping a breeze.

There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight.

Powering the receiver at the field is as easy as plugging in a 3 cell lipo with the included prewired cable with mini JST. It just doesn’t get any simpler than this.

Frequency range:

FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M

FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M

FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M

FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M


Features:

  • 48 channels choice to get the best transmitting quality.
  • Smaller size with lighter weight.
  • 48 CH compatible to all FPV 5.8g transmitter.
  • Super small 200mA current for 600mW wireless transmitter power.
  • Video format: NTSC/PAL auto.
  • 48 channels: Cover A, B, E, F, H bands and L bands.
  • Two switching buttons for the band and channel.
  • Two digits display for the band and channel.
  • Power off memory for the last channel and band.
  • Dual Independent video and audio signal outputs.
  • 600mW transmitter power assures 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.


Package Includes:

1 x RC832 Plus 5.8G 48CH AV Receiver.

1 x Detachable antenna.

1 x AV cable.

1 x Power Cable.

1 x User Manual.
