This is a Raspberry Pi GNSS HAT that supports Multi-GNSS systems: GPS, BDS, and QZSS, with advantages such as fast positioning, high accuracy, low power consumption, and so on.

It is an easy way to enable global positioning function for your Raspberry Pi.

What’s on Board:

Waveshare L76X Multi-GNSS HAT for Raspberry Pi, GPS, BDS, QZSS

L76B module

CP2102: USB TO UART converter

CAT24C32: EEPROM

RT9193-33: power manager

Backup mode wakeup button

Standby switch

Indicators:

RXD/TXD: UART RX/TX indicator

PPS: GPS status indicator

PWR: power indicator

Raspberry Pi GPIO connector: for connecting with Raspberry Pi

USB TO UART port

GNSS antenna connector

Battery holder: supports ML1220 rechargeable battery, for preserving ephemeris information and hot starts

UART selection jumpers

A: control the L76B through USB TO UART

B: control the L76B through Raspberry Pi

C: access Raspberry Pi through USB TO UART

Applications:

Vehicle tracking

Asset tracking

Security system

Industrial PDA

GIS application

Features:

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

Supports Multi-GNSS systems: GPS, BDS, and QZSS

EASY, self-track prediction technology, help quick positioning

AlwaysLocate, intelligent controller of periodic mode for power saving

Supports DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

UART communication baudrate: 4800~115200bps (9600bps by default)

Onboard battery holder, supports ML1220 rechargeable battery, for preserving ephemeris information and hot starts

4x LEDs for indicating the module working status

Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

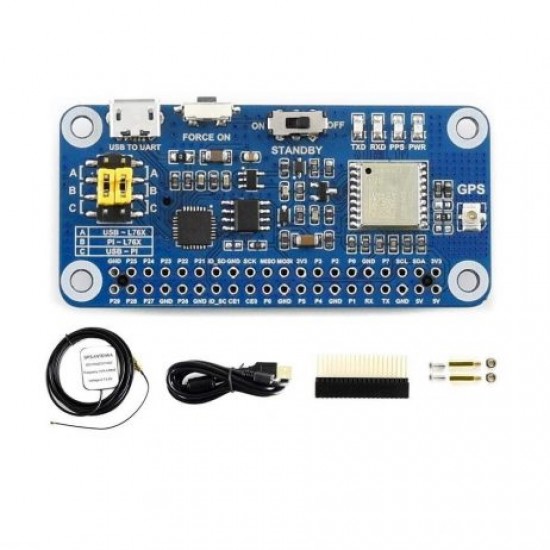

Package Includes:

1 x L76X GPS HAT

1 x GPS External Antenna (B)

1 x USB type A plug to micro plug cable

1 x RPi screws pack (2pcs)

1 x 2x20PIN female header
