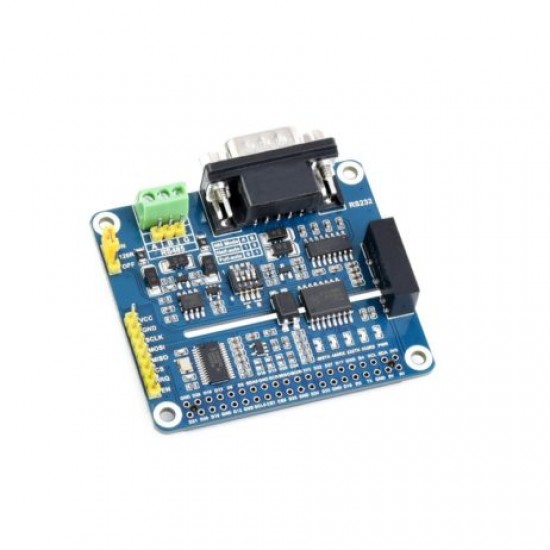

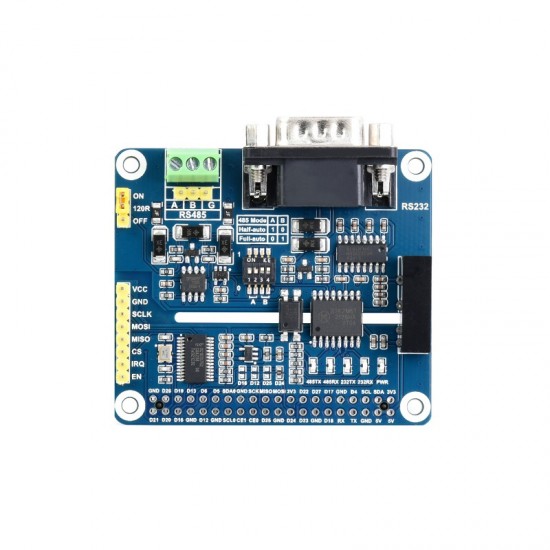

RS485 RS232 HAT is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation and TVS and other protection circuits.

Features:

  • Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards
  • Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps
  • RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch
  • RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance
  • Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity.
  • Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status
  • Lead out the SPI control interface for easy access to main control boards such as Arduino
  • Provide complete supporting information manuals (C and python sample programs and user manuals, etc.)

Specifications:

Serial port expansion chip: SC16IS752

Operating Voltage: 5V

RS485 transceiver： SP3485

RS232 transceiver： SP3232

Communication Interface： SPI

Data Rate: Up to 921600bps

Communication Interface: SPI

UART Expansion Chip: SC16IS752

RS485 transceiver: SP3485

Communication rate： 300~921600 bps

Operating Voltage： 3.3/5V

Dimension： 65mm×56.5mm

Via diameter： 3.0mm

Packages Includes:

1 x Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
