- Stock: In Stock
- Model: 9520
- SKU: SAT3690
- Location: India

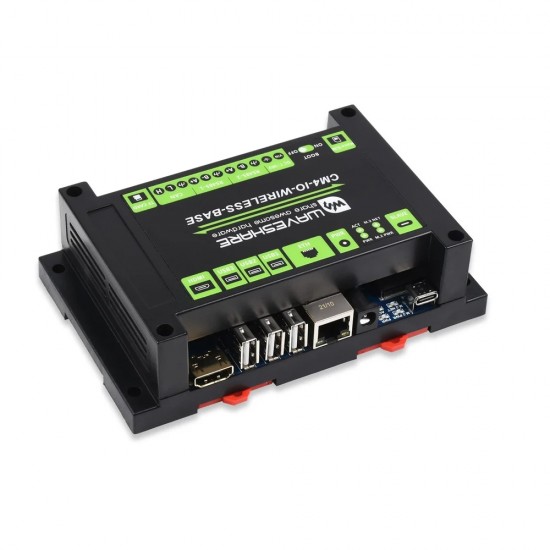

This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allowing additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in the industrial automatic control system, and more.
Specifications and Features:
CM4 SOCKET: suitable for all variants of Compute Module 4
NETWORKING: Gigabit Ethernet RJ45
M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
USB USB: 2.0 × 3
PIN HEADER: Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins
CAMERA MIPI: CSI-2 × 1 (15pin 1.0mm FPC connector)
VIDEO HDMI: × 1, supports 4K 30fps output
RTC Real-time clock with a battery socket and ability to wake Compute Module 4
STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER: 5V/12V, allows speed adjustment and measurement
POWER INPUT: 5V or 7~36V
DIMENSIONS: 145 × 90 × 40mm
Package Includes:
1 x Waveshare Industrial IoT Wireless Expansion Module Kit
Kit Includes:
1 x CM4-IO-WIRELESS-BASE
1 x PCIe to 4G/LoRa adapter
1 x Screwdriver
1 x Screws pack
1 x 4G module
1 x SIM7600G-H-PCIE
1 x PCB antenna IPEX connector
