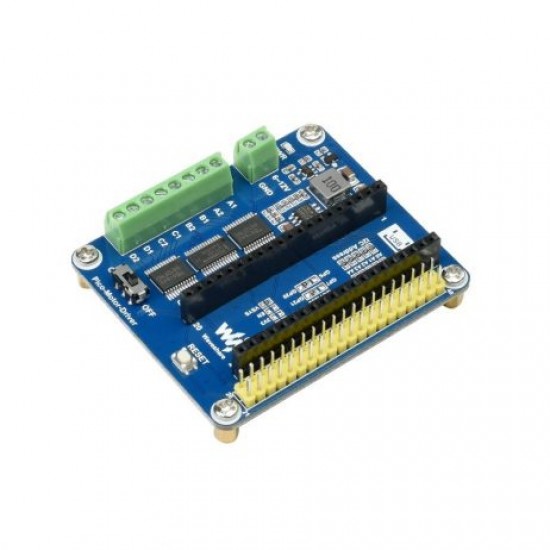

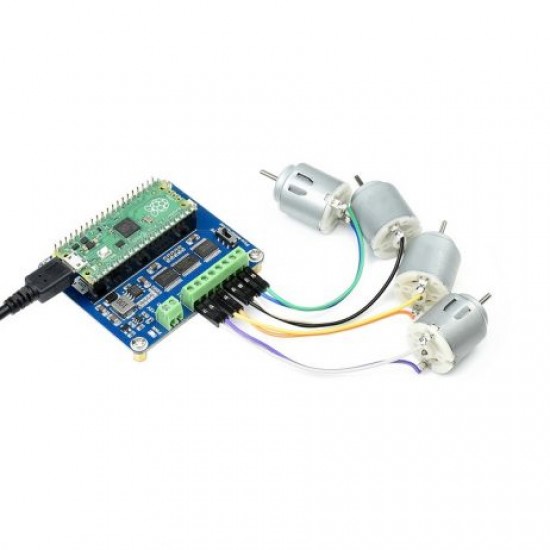

This DC motor driver has been designed specifically for the Raspberry Pi Pico and can PWM control up to 4 DC motors at a constant current of 1.2A (3.2A peak).

Power input between 6-12V can be applied, which conveniently powers the Raspberry Pi Pico thanks to the onboard 5V regulator. An on/off switch and power indicator LED add to this convenience, alongside a breakout section for unused GPIO pins.

Pico will need to have male headers pins to it with the pins pointing downwards and a USB cable to power up Click here Below for PICO with Header Pin & Power cable

Raspberry PI Pico with Headers and Micro USB Cable

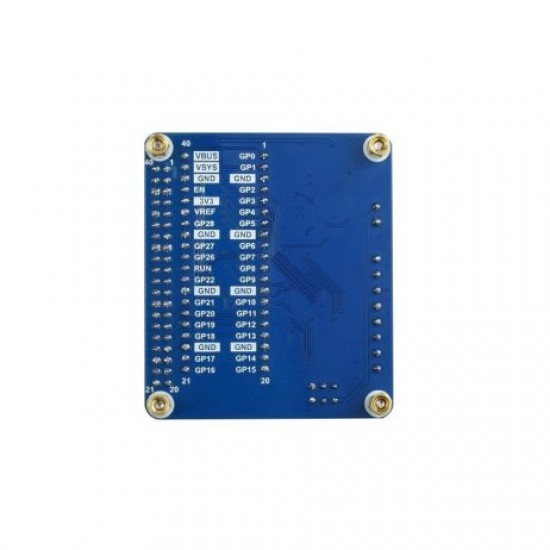

Pin  Configuration:





Note: A Raspberry Pi Pico is not included with this hat – Click here to buy.

Features:

  • Compatible with the Raspberry Pi Pico
  • I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers
  • Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
  • Onboard TB6612FNG dual H-bridge motor driver
  • Integrates 5V regulator, up to 3A output current, can be powered from a battery through the VIN terminal
  • Breaks out unused pins of the Pico for easy extension

Package Includes:

1 x Waveshare 4 DC Motor Driver HAT for Raspberry Pi Pico

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
