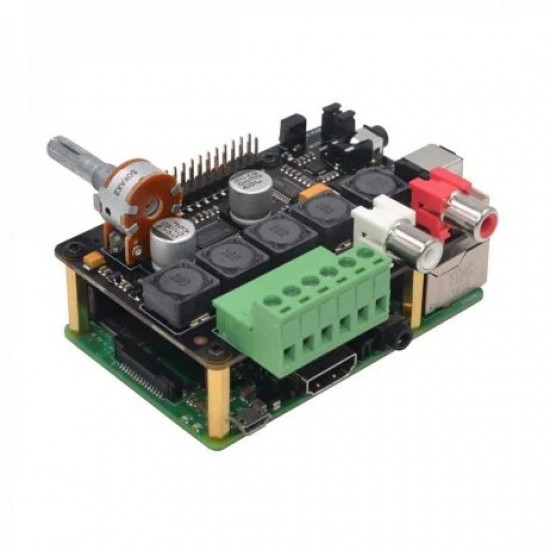

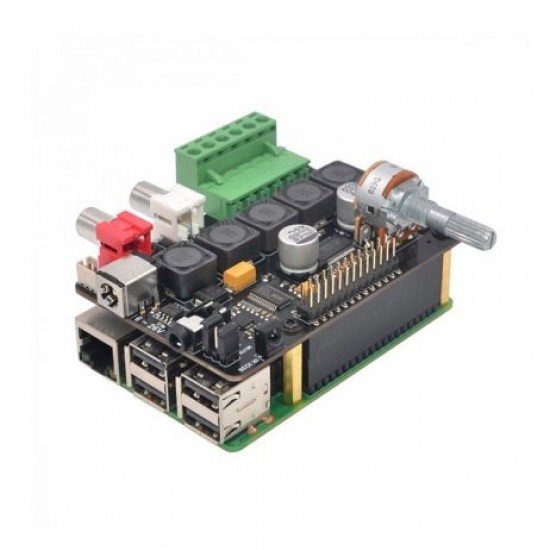

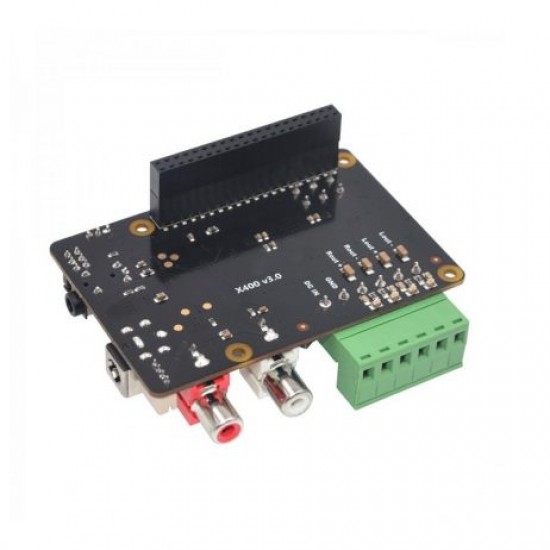

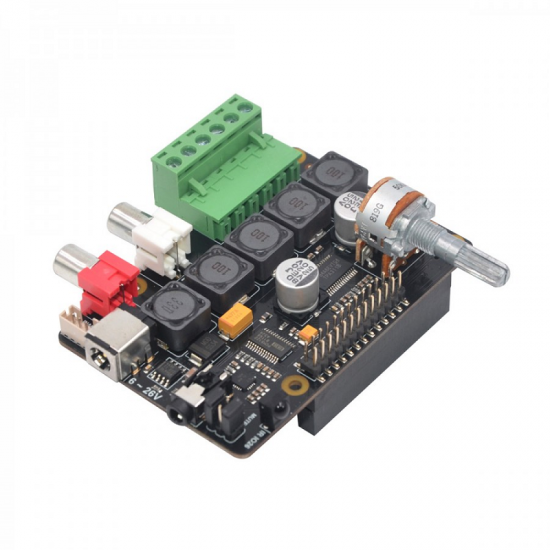

Raspberry Pi X400 Multifunctional Expansion Board

Based on 0 reviews. - Write a review

₹4,548.99

Ex GST: ₹3,855.08

Stock: In Stock
Model: 9502
SKU: SAT3672
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

This Raspberry Pi X400 Multifunctional Expansion Board Raspberry Pi 3 Model B+(Plus)/3B Music Player has been updated to the latest V3.0 Version on November 23rd. The X400 audio expansion board has been redesigned by accepting many customer feedback from all over the world. Now it has much better performance than the previous X400 V2.0 version.

It is available to use an extra power switch to control the X400 V3.0 music player and Raspberry Pi board via the PH2.0 4PIN PWR SW port, but please remember to remove the PWR jumper when connect the external power switch to control power.

Features:

Full-HD audio – up to 24-bit/192kHz playback
Audiophile TI Burr-Brown 32-bit/384kHz DAC (TI PCM5122)
Class-leading audio; 112db SNR, and THD of 0.0019%
Built-in High-quality Class-D stereo audio amplifier (TI TPA3118D2)
Up to 2×30W Into an 8-Ω BTL Load at 24Vdc
Capable of driving 4 Ohm speakers (also works with higher impedance speakers)
Built-in high-quality audio headphone amplifier (TI TPA6133A)
Uses the Texas Instruments ultra-low-noise voltage regulator (output noise< 10μVRMS)
Uses the Texas Instruments high-efficiency step-down DC converter (up to 95%)
6V~26Vdc converted to 5.1V, 3A to power the Raspberry Pi
Uses the genuine ALPS RK163 series potentiometer for smooth volume adjustment
Built-in high-quality IR sensor (Vishay -the world’s leading supplier of infrared receivers)
Onboard RCA connectors
Onboard 3.5mm stereo headphone jack
Onboard speaker & power screw terminals
Onboard 4pin PH2.0 connector allowing to connect an external lighted power switch to control power
Onboard gold-plated high-current DC power jack (5.5×2.5mm)
Package Includes:

1 x Raspberry Pi X400 Multifunctional Expansion Board

1 x Set of brass standoffs and screws

6 Months Warranty
