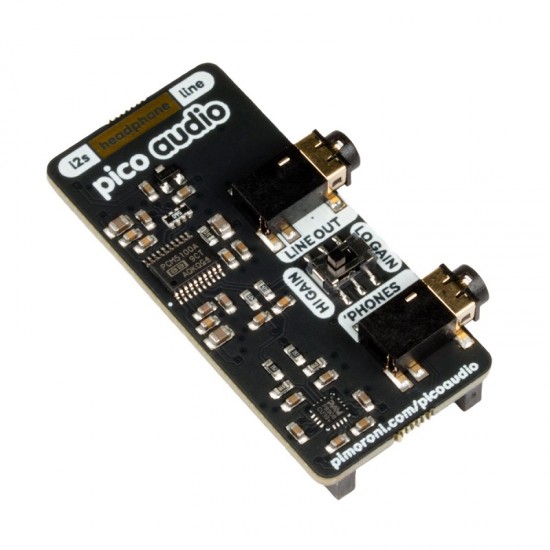

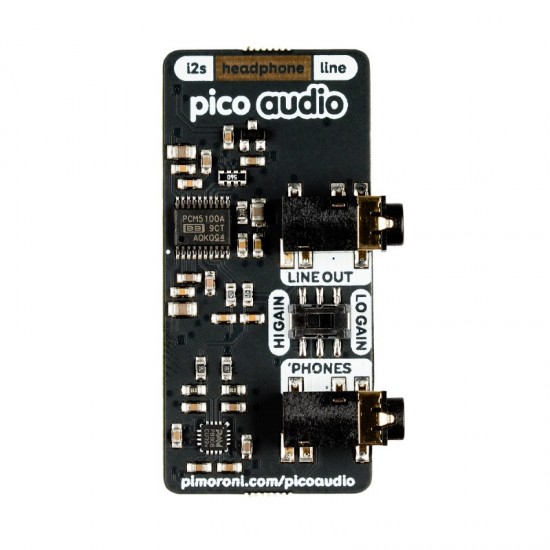

Make some noise with this high quality stereo I2S audio add-on board for your Raspberry Pi Pico, with amplified headphones AND unamplified line-level outputs!

Pico Audio Pack uses its PCM5100A DAC to output up to 32-bit, 384KHz stereo audio along its 3.5mm line out connector, ready for plugging in to an external amp or powered speakers. If you’re after something a little louder for your ears, it can also pump out amplified stereo audio from its 3.5mm headphone jack.

You could generate interesting noises with code on your Pico to output into a lo-fi synth, hook your Pico up to another device and use it as a custom USB sound card, or use it to give your Pico project the ability to play sound effects or short audio clips.


Pinout:

Pico Audio Pack provides a high-quality stereo DAC that uses I2S_DATA, I2S_BCK, and I2S_LRCK to receive audio data.

We also offer a MUTE pin which can be used to silence the output.

You can use Pico Audio Pack with the I2S audio examples provided by Raspberry Pi in their experimental examples (usb_sound_card and sine_wave_i2s). You’ll need to #define PICO_AUDIO_I2S_DATA_PIN and PICO_AUDIO_I2S_CLOCK_PIN_BASE to 9 and 10 respectively to tell the examples which pins are being used for the audio data.


Features:

  • PAM8908JER stereo headphone amp
  • Switch to adjust headphone amp gain (low/high)
  • Pre-soldered female headers for attaching to Pico
  • Compatible with Raspberry Pi Pico
  • Fully assembled
  • No soldering is required (as long as your Pico has header pins attached).


Package Includes :

1 x PIMORONI Pico Audio Pack (Line-Out and Headphone Amp)
