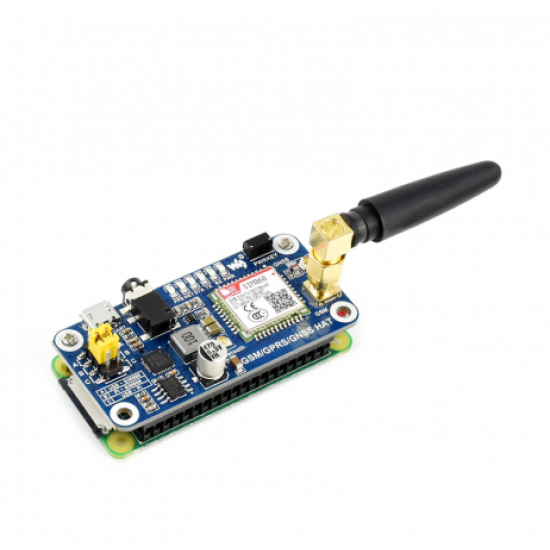

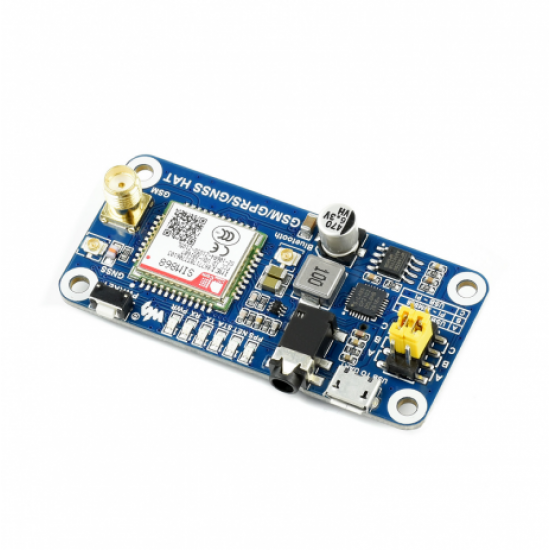

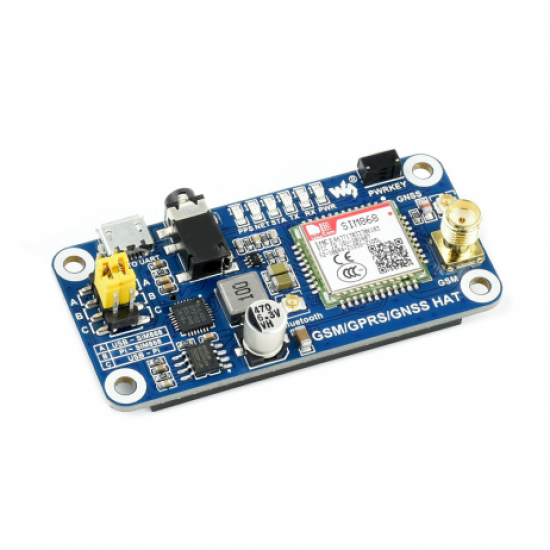

Waveshare GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi

Based on 0 reviews. - Write a review

₹3,199.00

Ex GST: ₹2,711.02

Stock: In Stock
Model: 9474
SKU: SAT3644
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

This is a handy, low power Raspberry Pi HAT that features multi communication functionalities: GSM, GPRS, GNSS, and Bluetooth. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.

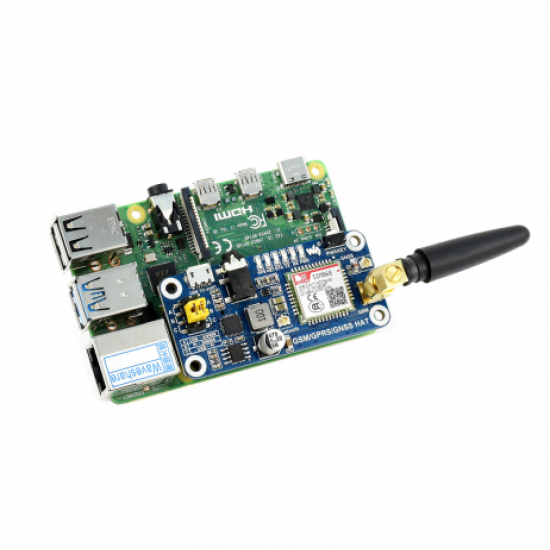

Note: Raspberry Pi Shown in Image Is Not Included With Product You Have to Purchase it Separately.

Features:

General:

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.

Support GPS, COMPASS, Glonass, LBS base station positioning, Omni-positioning

Bluetooth 3.0, supports data transferring through Bluetooth

Onboard USB TO UART Converter CP2102 for UART debugging

6x LEDs for indicating the module working status

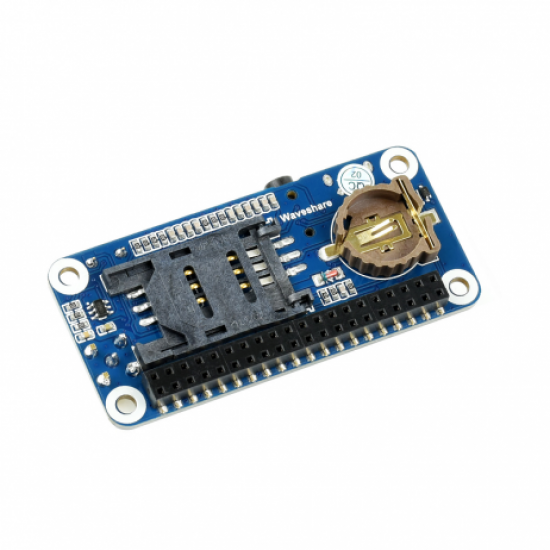

SIM card slot for 1.8V/3V SIM card

RTC with backup battery holder

Baudrate auto-detection (1200bps ~115200bps)

Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

Supports SIM application toolkit: GSM 11.14 Release 99

GSM/GPRS:

Band

GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz

Quad-band auto search

Compliant to GSM phase 2/2+

Emitting power

Class 4 (2W @ GSM 850/EGSM 900 MHz)

Class 1 (1W @ DCS 1800/PCS 1900 MHz)

GPRS connectivity

GPRS multi-slot class 12 (default)

GPRS multi-slot class 1~12 (configurable)

GPRS data feature

Downlink speed: max 85.6kbps

Uplink speed: max 85.6kbps

Coding schemes: CS-1CS-2CS-3CS-4

Supports PAP (Password Authentication Protocol) for PPP connection

Supports PBCCH

Supports USSD

SMS

Supports: MT/MO/CB/Text/PDU mode

SMS storage: SIM card

Audio

Voice encode/decode mode: Half RateFull RateEnhanced Full RateAdaptive muti rate

Supports echo cancellation

Supports noise reduction

GNSS:

Receiver type

33 tracking channels

99 acquisition channels

GPS L1 C/A code

Sensitivity

Tracking: -165 dBm

Cold starts : -148 dBm

Time-To-First-Fix

Cold starts: 28s (Typ.)

Hot starts : < 1s

Warm starts: 26s

Accuracy

Horizontal position : <2.5m CEP

Bluetooth:

Integrates AT commands

Compliant to Bluetooth specification3.0 + EDR

Supports SPP, OPP, HFP/HSP, etc.

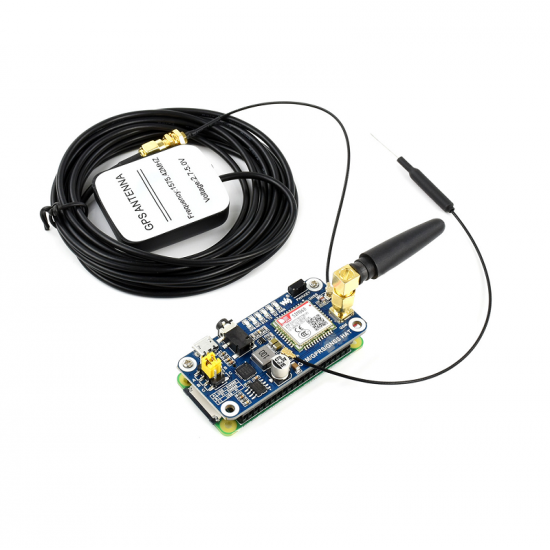

Package Includes:

1 x GSM/GPRS/GNSS HAT

1 x GSM Antenna

1 x GPS External Antenna (B)

1 x Bluetooth Antenna

1 x USB type A plug to micro plug cable

1 x RPi screws pack (2pcs)
