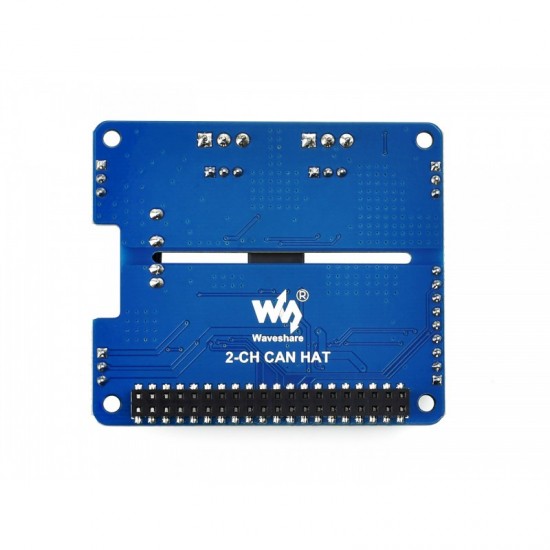

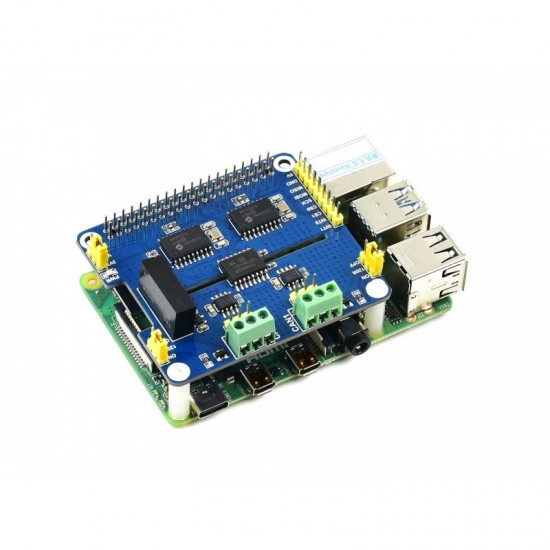

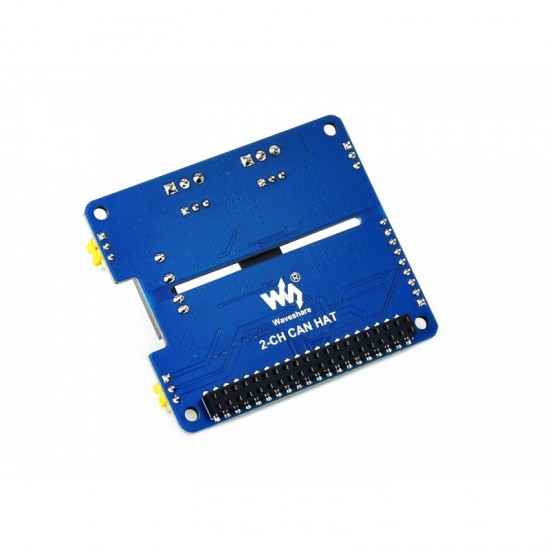

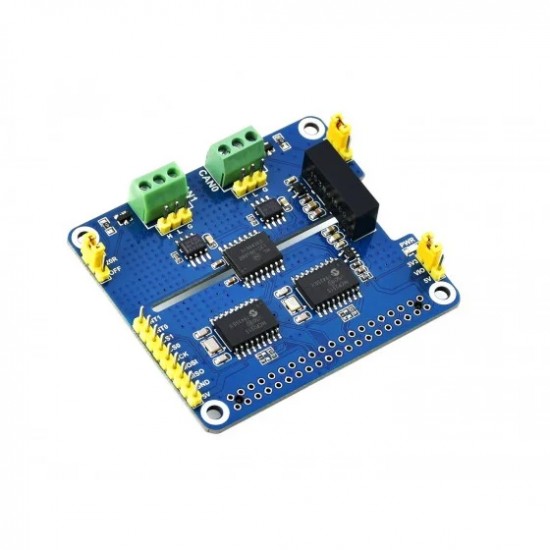

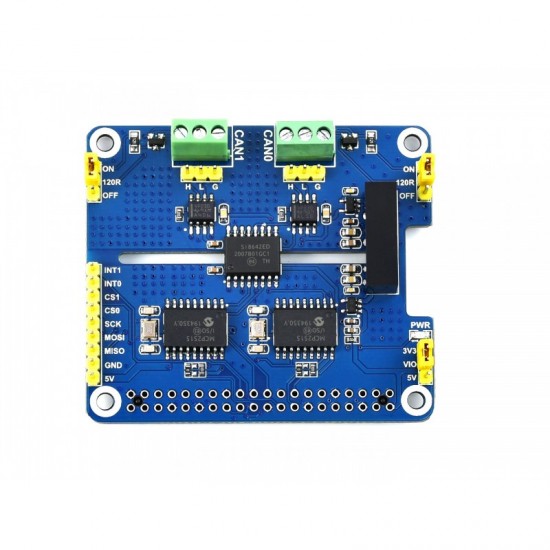

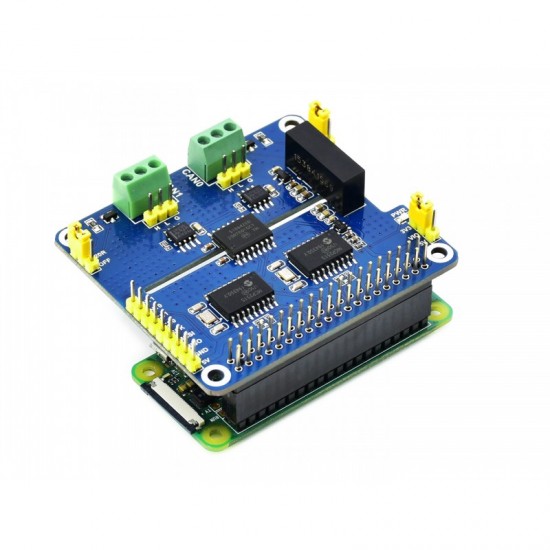

Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution

Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Based on 0 reviews. - Write a review
₹2,188.99
Ex GST: ₹1,855.08
  • Stock: In Stock
  • Model: 8321
  • SKU: SAT2483
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits. Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi .Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards .MCP2515 CAN Controller + SN65HVD230 CAN Transceiver .SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection. high anti-interference capability, and stable operation. It suits for fields such as automotive devices or industrial automation.


features:

  • Adopts MCP2515 and SN65HVD230 dual chips combined solution,
  • allows 2-channel CAN communication
  • Integrated power isolation, providing stable isolated voltage
  • Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
  • Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
  • Onboard voltage translator, select 3.3V/5V operating voltage by jumper
  • Onboard 120Ω terminal resistor, configured by jumper
  • Breakout SPI control pins, for connecting with host control boards like STM32/Arduino


package include:

1 X Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
