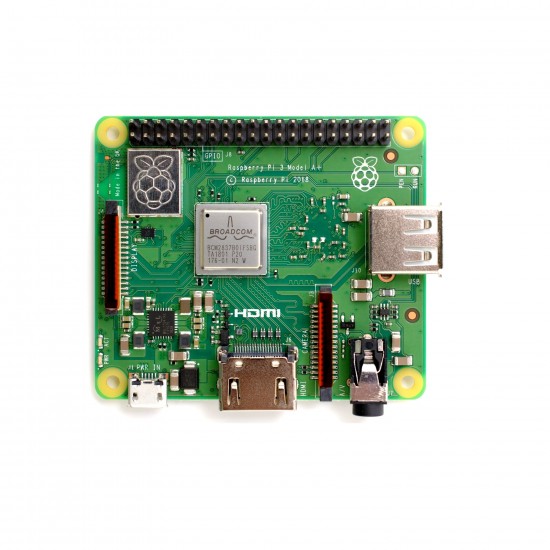

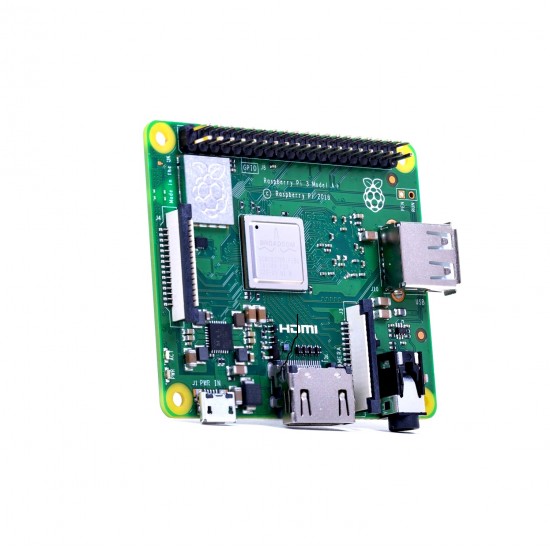

The All new Upgraded 2018s Raspberry Pi 3 Model A+ now comes with the Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz quad-core processor, dual-band wireless LAN, Bluetooth 4.2/BLE in the same mechanical format as the Raspberry Pi 1 Model A+.

With Extended 40-pin GPIO header and Full-size HDMI it is the perfect board for the minimalist Pi fan. This low-cost Pi uses the same processor as the model B+ but does away with the Ethernet jack and three of the USB Ports. This makes it lower power, less expensive and much lighter & smaller!

It’s still compatible with all Pi operating systems and software and has the exact same 40 pin GPIO connector and camera/display sockets, so any HATs or Pi Plates or other things that plug into the model B+ will work just the same.

It also has the same HDMI, sound/composite connector and micro-USB connector for power

Unlike the Raspberry Model B+, there’s only one USB port and no ethernet jack but it’s also significantly smaller at 65mm x 56mm if you don’t include overhang from the connectors.

Don’t forget, you’ll need a USB power supply with micro USB cable, and a microSD card with a Raspberry Pi OS on it (we suggest a Raspbian 4G card or NooBS 8G card)


To Get Started You’ll Need:

  • A micro SD card with NOOBS (see Software & OS tab)
  • A high-quality 2.5A micro USB power supply, such as the official Raspberry Pi Universal Power Supply


Package Includes:

1 x Raspberry Pi 3 Model A+ Board

HardWare Specification
Clock Speed 1.4 GHz
GTIN 652508442181
Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features
On Board Ports 4-pole stereo output and composite video port, CSI camera port for connecting a Raspberry Pi Camera Module, DSI display port for connecting a Raspberry Pi Touch Display, Full-size HDMI Output Port, Micro SD port for loading your operating system and storing data, Micro-USB 5V/2.5A DC Power Input Port, Single USB 2.0 ports
Processor Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
RAM 512MB LPDDR2 SDRAM
UPC 652508442181
Shipment Weight 0.04 kg
Shipment Dimensions 12 × 8 × 3 cm
Operating Power 5V/2.5A DC
Dimensions (mm) LxWxH 65 x 56 x 30

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
