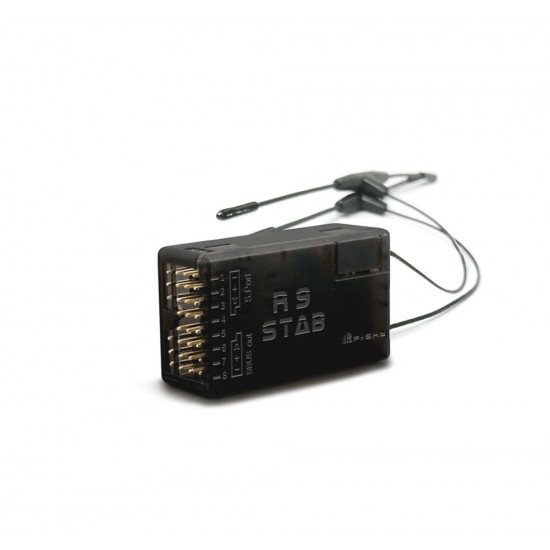

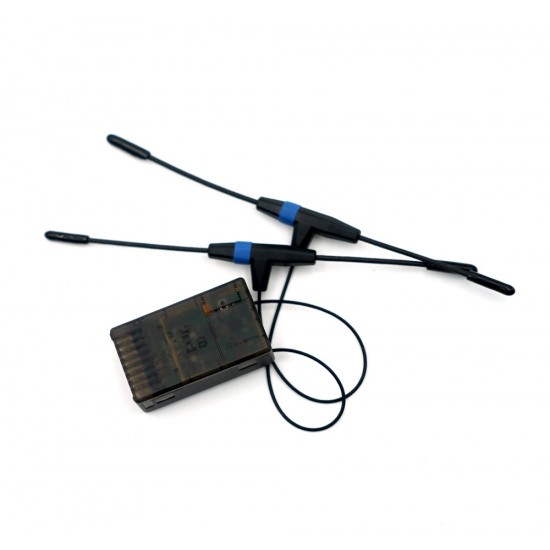

FrSky R9 STAB OTA 900MHz 16CH Long-Range And Stabilization Receiver (ACCESS)

FrSky R9 STAB OTA 900MHz 16CH Long-Range And Stabilization Receiver (ACCESS)
FrSky R9 STAB OTA 900MHz 16CH Long-Range And Stabilization Receiver (ACCESS)
New
FrSky R9 STAB OTA 900MHz 16CH Long-Range And Stabilization Receiver (ACCESS)
FrSky R9 STAB OTA 900MHz 16CH Long-Range And Stabilization Receiver (ACCESS)
FrSky R9 STAB OTA 900MHz 16CH Long-Range And Stabilization Receiver (ACCESS)
Based on 0 reviews. - Write a review
₹4,718.82
Ex GST: ₹3,999.00
  • Stock: In Stock
  • Model: 10466
  • SKU: SAT4636
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

About this product

R9 STAB OTA is a 900MHz long-range and stabilization receiver with a built-in 3-axis gyroscope and 3-axis accelerometer.


Multiple Flight Modes

R9 STAB OTA has 8 PWM channels, on traditional fixed-wing models it will support stabilization, automatic level, hover and knife-edge flight modes. For delta wings and V-tail models, it supports stabilization and automatic level flight modes.


ACCESS Protocol

R9 STAB OTA receiver implements the ACCESS protocol and brings the user improved performance and features. It supports wireless over-the-air firmware updates, making binding to receivers even easier as well as conveniently checking the current receiver firmware version.


Configurations Parameter

Paired with a FrSky radio transmitter, the parameters can be adjusted conveniently through the LUA script. In addition, parameters may also be adjusted by FreeLink (PC) and FreeLink App (with AirLink S)


Specifications

  • Brand Name: FrSky
  • Item Name: R9 STAB OTA Receiver
  • Dimension: 45.7*26.3*16.2mm
  • Weight: 18.6g
  • Numbers of Channel: 8/16CH (CH16 outputs RSSI)
  • Operating Voltage: DC 3.5V~10V
  • Operating Current: 140mA@7.4V
  • Gyroscope Precision: ±2000dps
  • Acceleration Precision: ±4g
  • Compatibility: R9M 2019/R9M Lite/R9M lite Pro with ACCESS firmware
  • The compatible ACCST firmware for this receiver will be released later. Please stay tuned for the update.


Features

  • ACCESS protocol and supports OTA functions
  • 900MHz/868MHz long-range with low latency
  • Built-in 3-axis gyroscope and 3-axis accelerometer
  • Support S.Port
  • Supports quick configuration for setting multiple flight modes (quick mode)
  • Detachable Ipex1 connector antenna
  • Multiple configuration methods (LUA script and FreeLink)


Includes

1 x R9 STAB OTA Receiver
