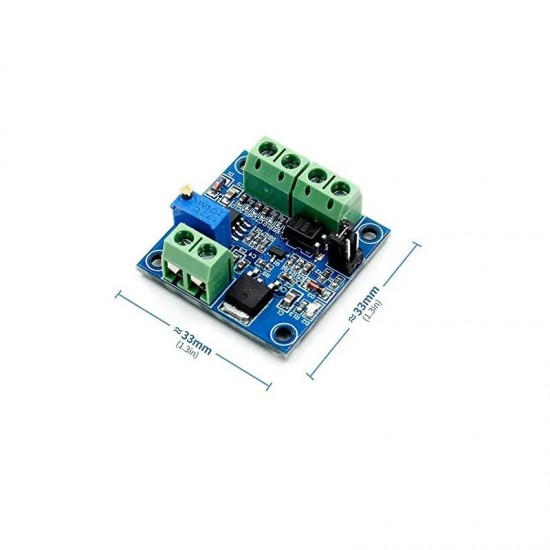

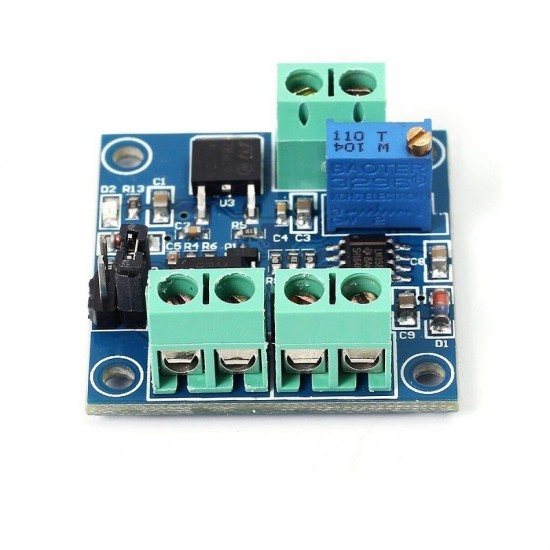

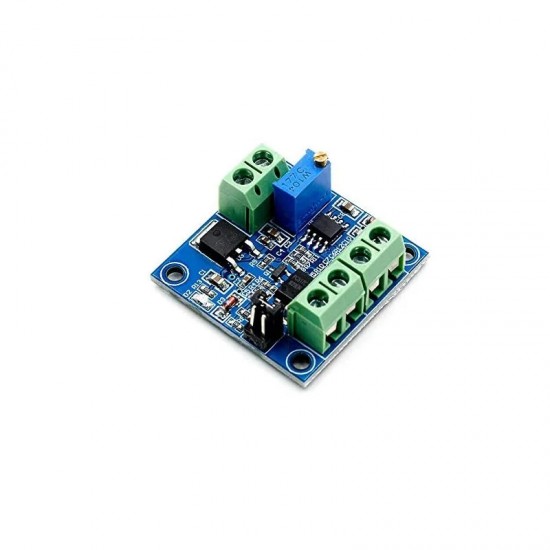

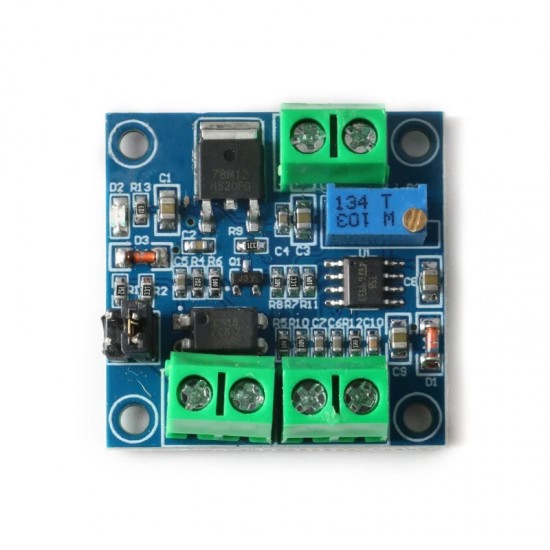

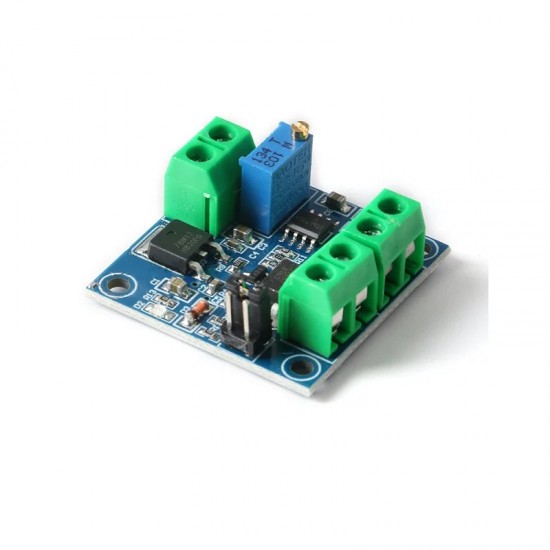

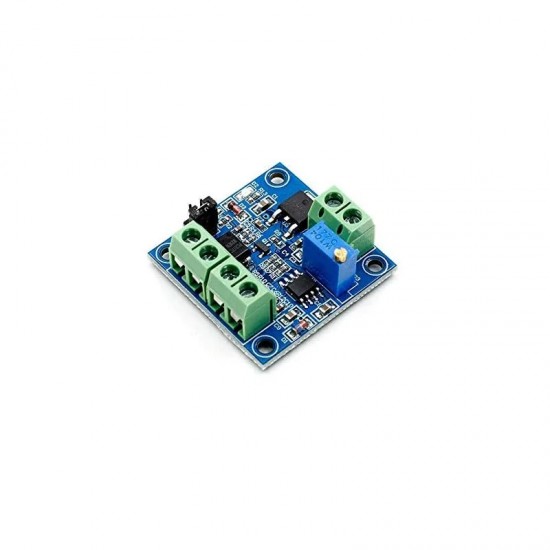

PWM to Voltage 0-100% to-10V Converter Module

PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
PWM to Voltage 0-100% to-10V Converter Module
Based on 0 reviews. - Write a review
₹369.00
Ex GST: ₹312.71
  • Stock: In Stock
  • Model: 9897
  • SKU: SAT4067
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

PWM to Voltage 0-100% to-10V Converter Module

This Module can convert PWM digital signals into 0 to 10V analog signals. This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. Module size is small, easy to apply in different places.

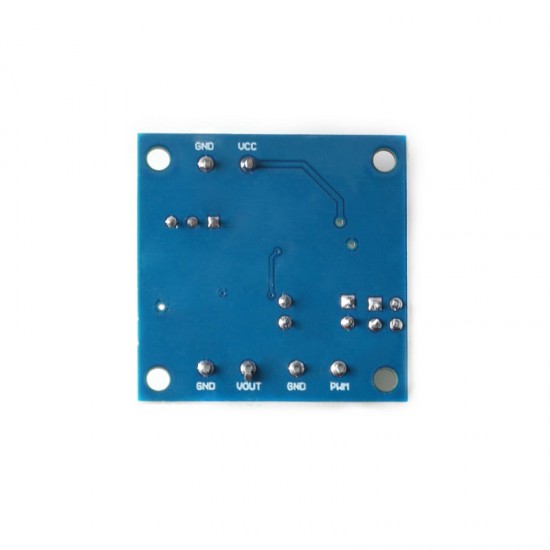

Pin Definition:

VCC -Working power 12-30V

GND -Ground

PWM – Input PWM signal positive

GND -Input voltage ground

VOUT-Output voltage: 0-10V

GND – Output ground

Application:

This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage


Features:

  • Using single-chip embedded technology
  • Easy to operate, can be fine-tuned by potentiometer
  • Select the PWM signal input level range through the short cap
  • The module is small, easy to carry and use
  • PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in ‘5V’. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
  • PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in ‘24V’. This level is used for normal PLC controllers. Insert jumper in the outer side.


Package Includes:

1 x PWM to Voltage 0-100% to-10V Converter Module
