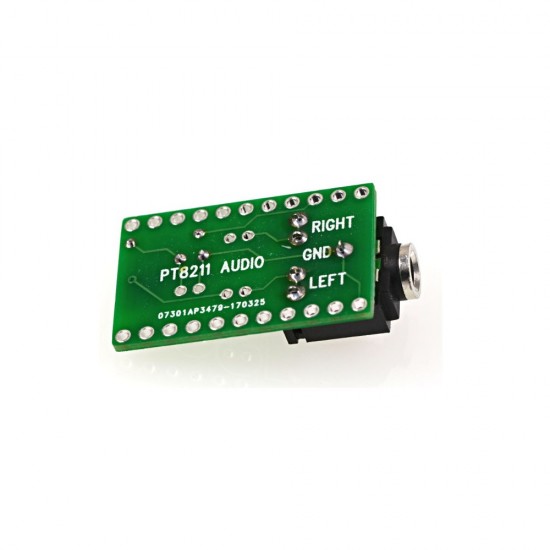

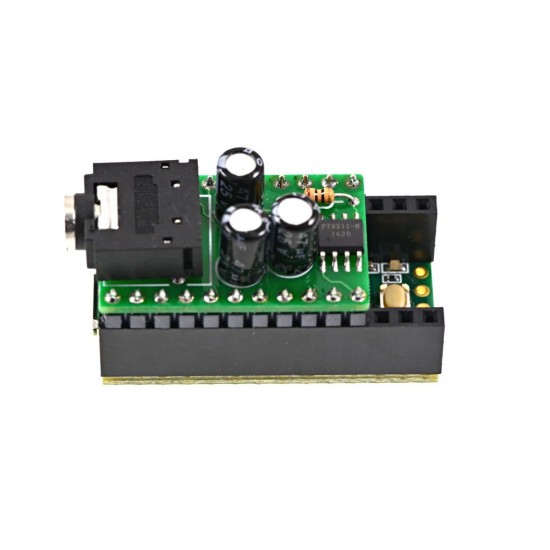

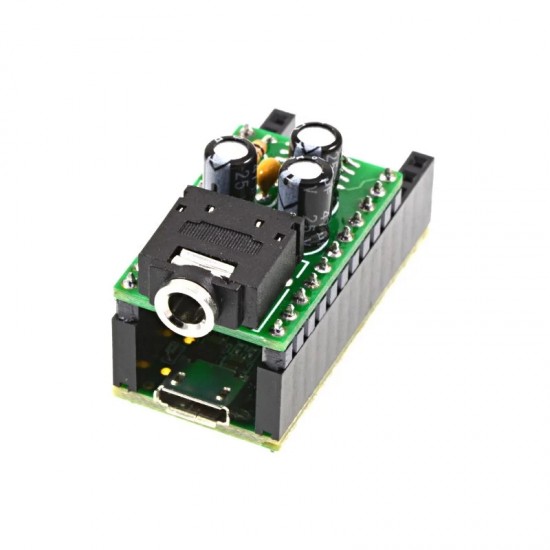

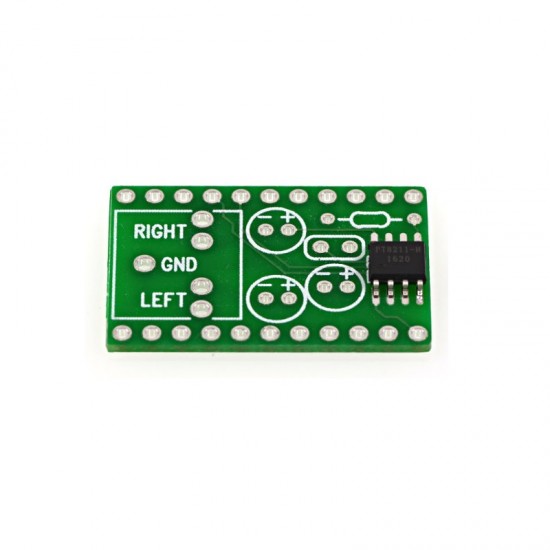

PT8211 Unassembled Audio Kit for Teensy 3.x

PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
PT8211 Unassembled Audio Kit for Teensy 3.x
Based on 0 reviews. - Write a review
₹249.00
Ex GST: ₹211.02
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7767
  • SKU: SAT1929
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

PT8211 is a dual channel, 16 bit Digital-to-Analog Converter IC utilizing CMOS technology specially designed for the digital audio applications. The internal conversion architecture is based on an R-2R resister ladder network, an internal circuit is well matched and a 16 bit dynamic range is achieved even in whole supply voltage range.

PT8211 also enhanced the performance of timing responsibility in a digital serial bus, in a company with the fast switching R-2R network that makes 8X oversampling audio signal is also supported. PT8211 can be supported by a wide range of sample frequency, it is compatible with TDA1311 by functionally. Its digital input timing format is Least Significant Bit Justified(LSBJ), or so-called Japanese input format. Digital code format is two’s complement and MSB first. PT8211 is available in 8-pin SO or DIP package.

Application:

  1. Digital Audio Equipment
  2. CD ROM/VCD
  3. Multimedia Sound Card
  4. MPEG Decoder Card
Pin Configuration:
Signal    Teensy Pin     PT8211 Pin
BCK 9 11
DIN223
WS232
+3.3V3.3V5
GNDGND4



Features:

  1. CMOS technology.
  2. Support 3.3V bus input level
  3. Low power consumption.
  4. Two audio channel output in the same chip.
  5. 16-bit dynamic range.
  6. Low total harmonic distortion.
  7. No phase shift between both output channel.
  8. Available in 8 pins, SO or DIP package.

Package Includes:

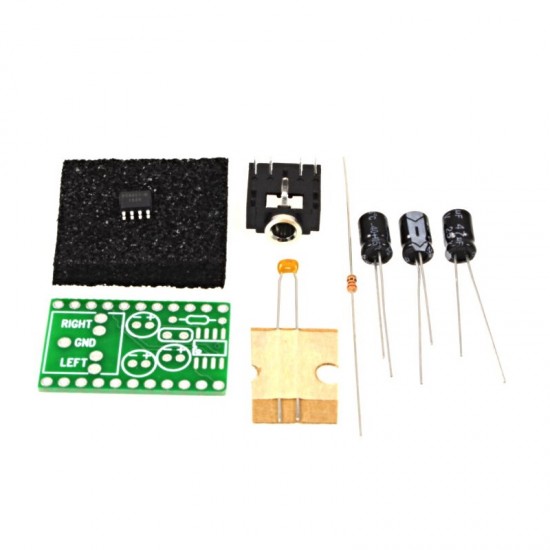

1 x PT8211 Unassembled Audio Kit for Teensy 3.x
