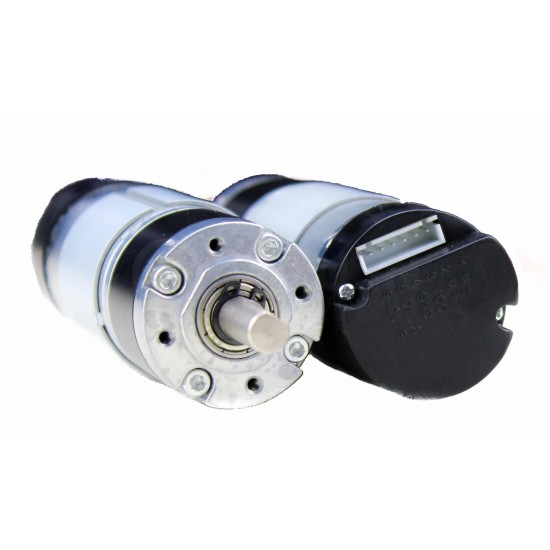

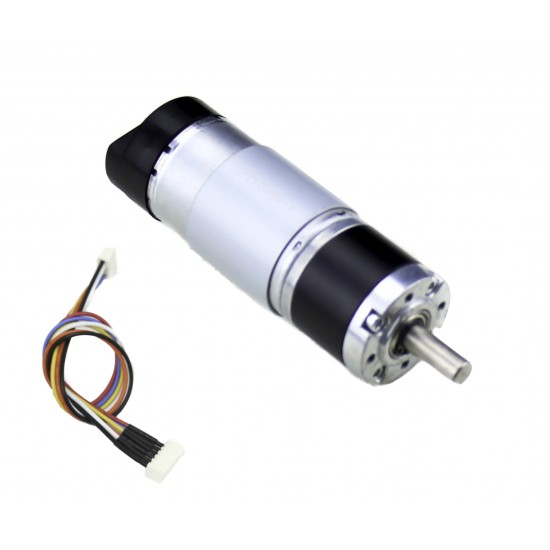

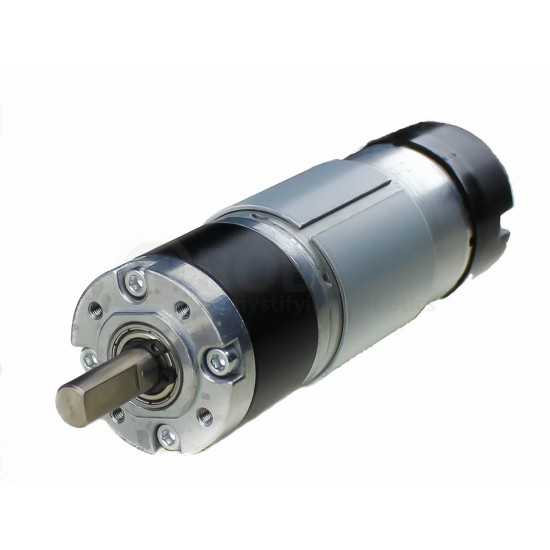

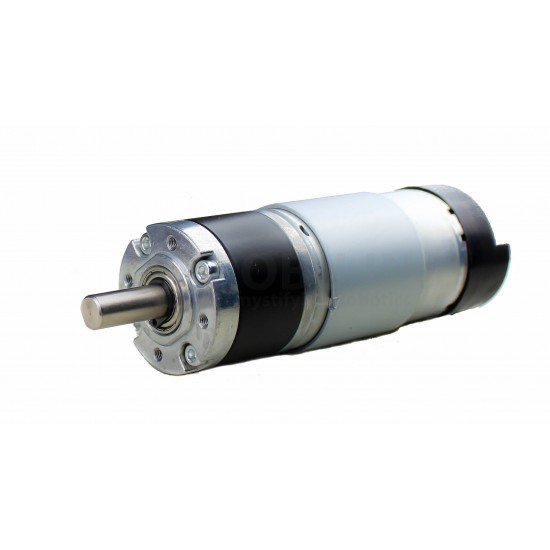

HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder

HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder
Based on 0 reviews. - Write a review
₹2,051.01
Ex GST: ₹1,738.14
  • Stock: In Stock
  • Model: 10040
  • SKU: SAT4210
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This motor is specially designed for robotics applications with an ideal balance of quality, performance, and price. This 12V DC motor with planetary gearbox can produce stall torque around 231 N-CM.

The planetary geared motor is always well known for its low backlash and higher efficiency characteristic to meet your higher expectation. The HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder is imported from an established Taiwanese motor manufacturing company which is well known for its quality and durability.

As these Epicyclic Gear Train motors are very popular amongst our Robotics designer. So we must ensure them for the quality and performance of these motors. For that purpose when we receive these Planetary DC Geared Motor at our Robu.in warehouse, we get them out and start testing each motor in our lab for the extreme pushable limits they can withstand.

This is 12V DC motor which has a gearbox of 36mm diameter. The planetary type gearbox of this motor has a reduction ratio of 13.7 which produces 438 RPM with the torque value of around 29.5 N-cm.

We highly suggest you this motor for the general purpose automation projects. It comes with 96PPR(Pulse per Revolution) single channel output encoder feedback to provide you real-time feedback of rotating position.

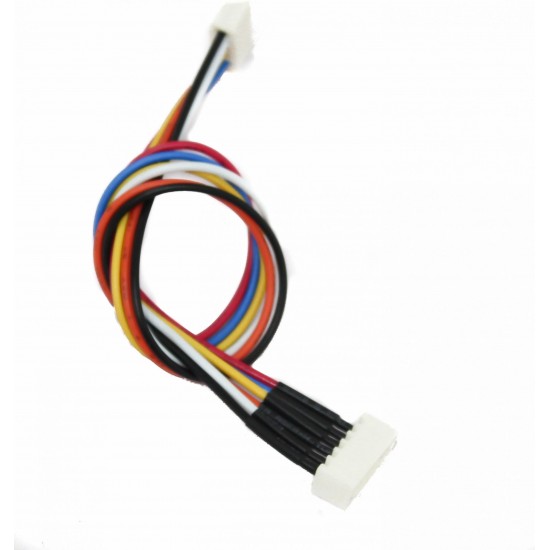

Click here for the Replacement cable for HD Planetary Motor

Note: While using motor make sure that connections are right; Don’t go through wire color, Go with Pin description.

Features :

  • Brushed permanent magnet DC motor
  • Variable speed and reversible
  • Planetary Gear Box

Package Includes :

1 x HD Planetary DC Geared Motor 438 RPM 29.5N-CM 12V with Encoder

We have 12V and 24V DC Planetary geared motors with RPM range from 10 to 1700 with the torque capacity of more than 20 kg-cm, do not forget to check them out

Planetary DC Geared Motor

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
