What can your PikaBot do? It can follow line, simple yet practical navigation that is widely used in AGV (Automated Guided Vehicle) and many robot competition. The kit comes with a pair of infrared sensors that you can calibrate/teach it to recognize black and white surfaces. Calibration is fairly straight forward by tuning a potentiometer on the sensor itself.PikaBot also includes an ultrasonic distance sensor so it can measures distance in front of it. With that, it can further avoid obstacle which is near to it.

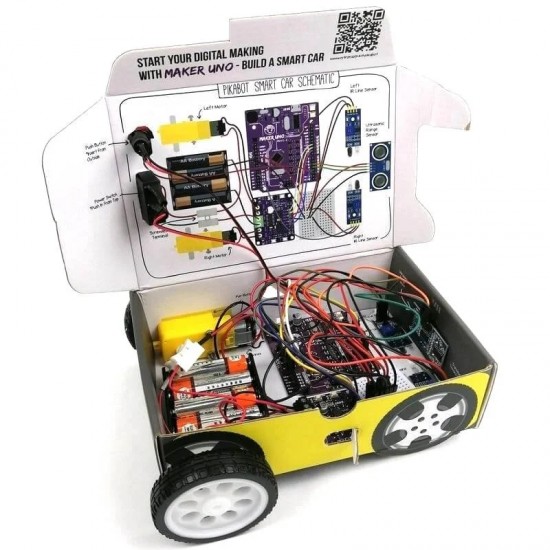

Start Your Digital Making with Maker UNO Build Your Own Smart Car: PIKABOT
No Soldering! Just Jumper Wires
Features:
- Do It Yourself (DIY) mobile robot kit
- No soldering needed, only requires to connect jumper wires
- Motor Driver: Maker Drive dual-channel DC brush motor driver
- Driven by two TT motor with pre-solder wires
- Power both controller and motor with 4 x AA battery, with battery holder too
- Comes with IR Line Sensor module, for line following
- Open-source example code, free to modify and learn coding
- Panel mount rocker switch as power activation switch
- Panel mount push button as a start button

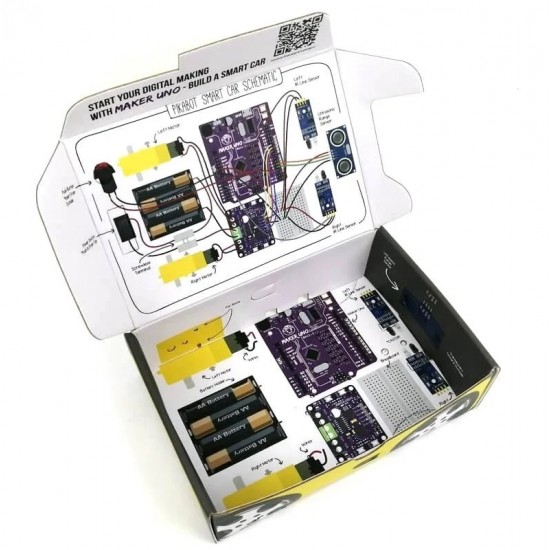

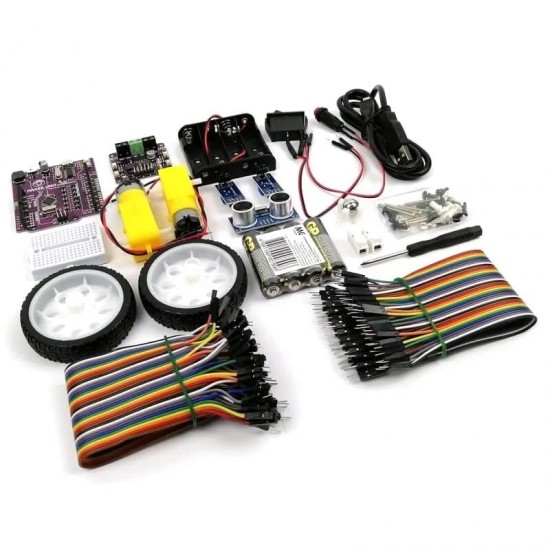

Package Includes:
- 1 x Maker UNO (Simplifying Arduino for Education)
- 1 x Maker Drive: Dual H-Bridge Motor Driver for Beginner
- 2 x 3 – 6VDC Dual Axis TT Gear Motor (with pre-solder wires)
- 2 x Rubber Wheel for TT Gear Motor (63mm x 15mm)
- 2 x IR Line Tracking Module
- 1 x HC-SR04 Ultrasonic Ranging Module
- 1 x 4xAA Batteries
- 1 x 4xAA battery holder
- 1 x Breadboard Mini (35mmx42mm) – White
- 1 x 40 ways Male to Female Jumper Wire
- 1 x 40 ways Male to Male Jumper Wire
- 1 x USB Micro B cable
- 1 x mBot N20 Vacuum Steel Ball Castor
- 1 x Tiny Phillips Screwdriver – 85mm
- 4 x Bolt M3x25mm
- 4 x M3 Nut
- 1 x CH2 Quick Wiring Terminal Press Type
- 1 x Rocker Switch with wires
- 1 x Push Button with wires
- 14 x Plastic Rivet (M3)
- 2 x Plastic Rivet (M4)
- 1 x PikaBot Track
- 1 x PikaBot Booklet – A step-by-step guide to build & program PikaBot.
- 1 x PikaBot Paper Box
