Olimex PIC32-PINGUINO-MICRO ARDUINO like PIC32MX440F256H USB OTG

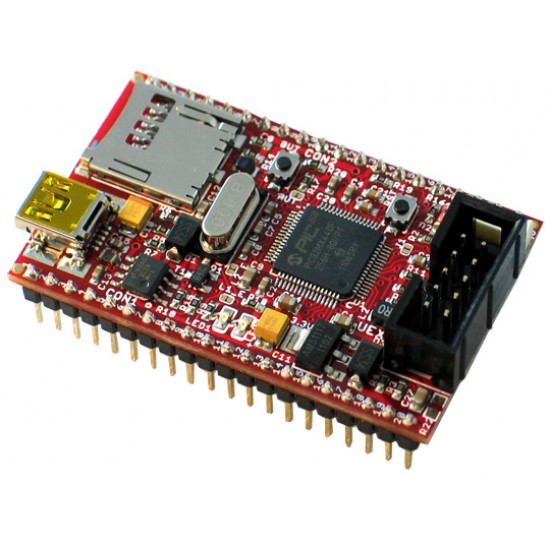

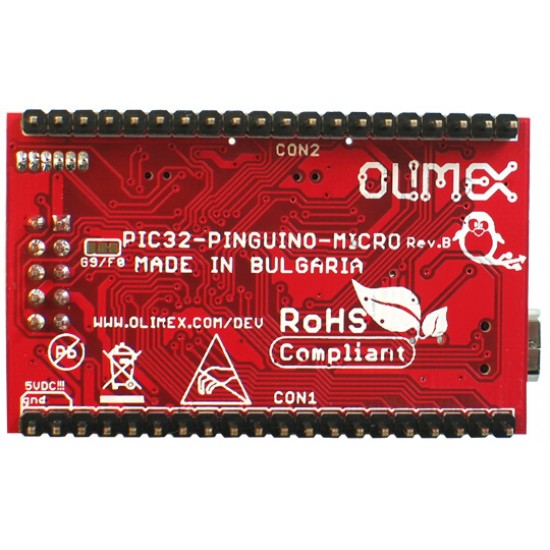

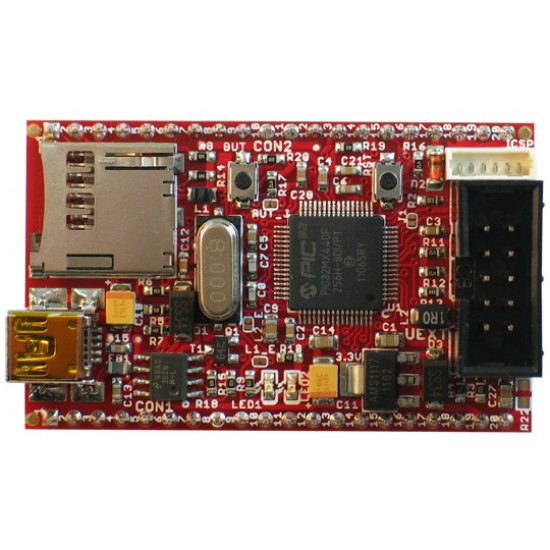

This is Olimex PIC32-PINGUINO-MICRO ARDUINO like PIC32MX440F256H USB OTG. The PIC32-PINGUINO-MICRO development board enables code development of applications running on the PIC32MX220F032D microcontroller, manufactured by Microchip technology.

The Olimex PIC32-Pinguino-Micro is a PIC32 development board that is similar to the Arduino but which features several important improvements. The most important of these is the use of the 80MHz PIC32MX440F256H 32-bit microcontroller which has 256KB flash and 32KB of RAM and is substantially more powerful than the 8-bit AVR MCUs.

The board also features a USB OTG port which doubles as a programming port for the MCU using the supplied bootloader. Should you want to use an alternative development system there is also a mini-ICSP (0.05in 1.27mm pitch) connector for direct programming. All the MCU IO signals are available on 0.1in (2.54mm) pitch pins on either side of the board making it completely breadboard compatible, unlike the Arduino.

WARNING!!!

Do not use the “programmer-to-go” button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 because that might put your microcontroller in an irrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our nd the original Microchip PICKIT3). We don’t take responsibility if you break your chip that way. For more info check the following:

www.microchip.com/forums/m635420.aspx

Features :

• PIC32MX440F256H 80 Mhz microcontroller 256KB Flash 32KB RAM
• MicroSD card for data logging
• UEXT connector which allows many existing modules like RF, ZIGBEE, GSM, GPS to be connected
• Two LEDs
• One BUTTON
• RESET button
• A Mini USB connector is used, which is common and used in most cell phones, so you do not have to buy other cables
• All PIC ports available on 0.1″ connectors
• miniICSP connector 0.05″step. If you do not want to use Pinguino IDE and you want to program this board with a PIC-ICD2-POCKET or PIC-KIT3, you should use also a PIC-ICSP converter board, the same applies for Microchip programmers.

Package Includes :

1 x Olimex PIC32-PINGUINO-MICRO

Software :

Pinguino IDE installation related:

PINGUINO IDE INSTALLATION on Windows

PINGUINO IDE Linux installation script

Pinguino IDE example:

Blinking LED example

Blink interrupt example

PIC32-PINGUINO-MICRO SD card example check the info inside the package

PIC32-PINGUINO and MOD-RFID125-BOX – check the note inside for additional info

PIC32-PINGUINO and MOD-RFID1356-BOX – check the note inside for additional info

PIC32-PINGUINO-MICRO and MOD-GPS example v1.1

PIC32-PINGUINO-OTG and MOD-MAG example

PIC32-PINGUINO-MICRO with MOD-CC2540 example receive character demo(refer to the readme and the comments in the code for more info)

PIC32-PINGUINO-MICRO with SHIELD-EKG-EMGexample (refer to the readme and the comments in the code for more info)

PIC32-PINGUINO-MICRO and MOD-MP3-X demo code

PIC32-PINGUINO-MICRO with MOD-BT command recognition example (refer to the readme and the comments in the code for more info)

PIC32-PINGUINO-MICRO with MOD-GSM call recognition example (refer to the readme and the comments in the code for more info)

PIC32-PINGUINO-MICRO with MOD-GSM send receive SMS example (refer to the readme and the comments in the code for more info)

PIC32-PINGUINO-MICRO with MOD-ZIGBEE-PIR and MOD-ZIGBEE movement sensor example (refer to the readme and the comments in the code for more info)

PIC32-PINGUINO-MICRO with MOD-RTC example

MPIDE related:°C

PIC32-PINGUINO-MICRO complete library example for MPIDE

MPIDE wiki article
