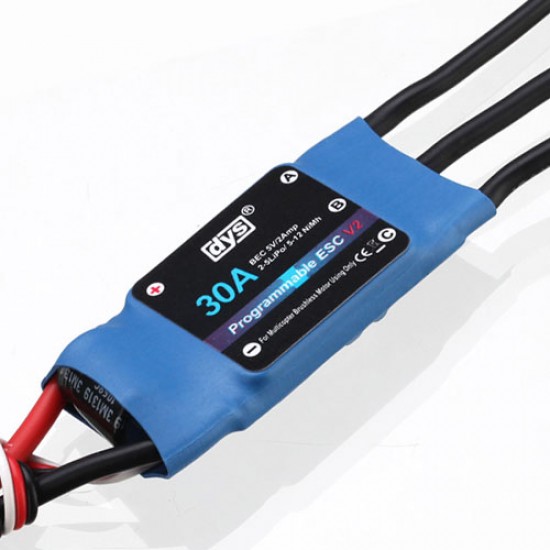

Original DYS 30A 2-5S ESC for Multicopter (Simonk Firmware)

Original DYS 30A 2-5S ESC for Multicopter (Simonk Firmware)
Original DYS 30A 2-5S ESC for Multicopter (Simonk Firmware)
Original DYS 30A 2-5S ESC for Multicopter (Simonk Firmware)
Original DYS 30A 2-5S ESC for Multicopter (Simonk Firmware)
Original DYS 30A 2-5S ESC for Multicopter (Simonk Firmware)
Based on 14 reviews. - Write a review
₹930.01
Ex GST: ₹788.14
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7334
  • SKU: SAT1496
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Description:

  • This is a 30A ESC, Multi-copter Brushless Motor Speed Controller with a running current of 30A. The power input uses extreme low output resistance greatly enhances the power stability and has a protective effect on the battery. Separately voltage regulator IC for the microprocessor. Providing good anti-jamming capability. Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.

Specification :

  • Running current:30A(Output:  Continuous 30A, Burst 40A up to 10 Secs.)
  • Input Voltage: DC 6-16.8V(2-4S Lixx)
  • BEC: 5V  2amp.
  • Size: 46mm (L) * 26mm (W) * 11mm (H).
  • Weight: 23g
  • With SimonK updated firmware for multicopter

Features:

  • The power input uses extreme low output resistance greatly enhances power stability and has a protective effect on the battery.
  • Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
  • Separately voltage regulator IC for the microprocessor. providing the good anti-jamming capability.
  • Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
  • Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.

Package Include:

1 X ESC (Electronic Speed Control)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
