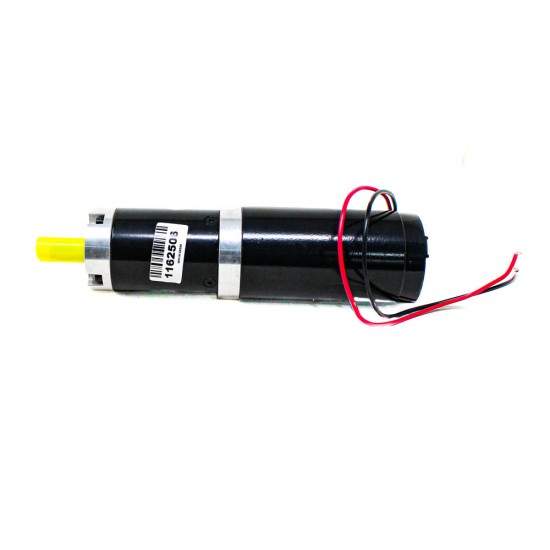

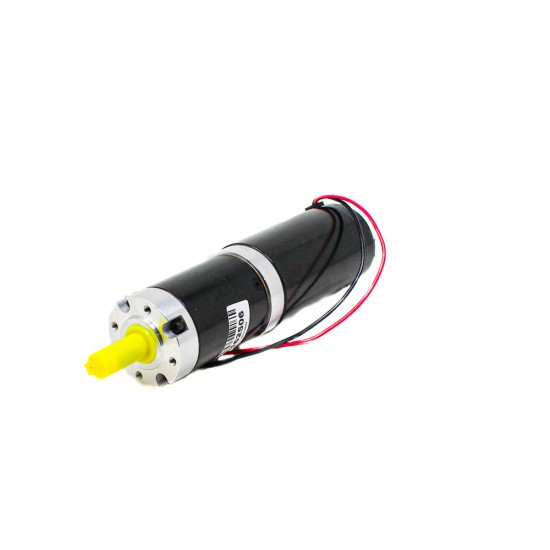

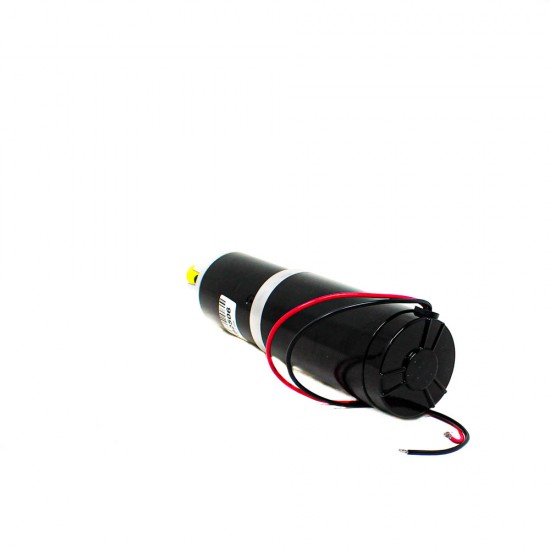

Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM

Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM
Based on 0 reviews. - Write a review
₹6,999.00
Ex GST: ₹5,931.36
  • Stock: In Stock
  • Model: 10010
  • SKU: SAT4180
  • Location: India
Orange Orange
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

A planetary gear motor mimics a planetary rotation system, the input shaft drives the central gear, also known as the sun gear, which then turns the surrounding gears, also known as planet gears When you couple a dc motor with a planetary gearbox a speed reduction occurs resulting in increased rotational torque at the gearbox output shaft. A planetary gearboxes consist of an internal sun gear that drives multiple outer ring gears known as planet gears, hence its name.

The efficiency loss in a planetary gear train is typically about 3% per stage. This type of efficiency ensures that a high proportion (about 97%) of the energy being input is transmitted through the gearbox, rather than being wasted on mechanical losses inside the gearbox.

The planetary gear is the most powerful gear system then other gear system it is compact and versatile High efficiency due to low rolling power it is use in more of application in world just like car to get more best driving  preformation and many more Compared with traditional fixed-shaft gearing systems, a planetary gearbox has compact structure and light weight, while its load-carrying capacity, transmission precision, and efficiency are much higher.

This product is combination of  DC Motor & planetary Gear System

Applications:

Transmissions of helicopters

Wind turbines

Mining machinery

Aircraft engines

Automobiles

Robotics

Note: How the planetary Gear works, video is uploaded in video section

Features:

  • High efficiency due to low rolling power
  • Load distribution to several planetary gears
  • Almost unlimited transmission ratio options due to combination of several planet stages
  • Multiple planet gears
  • low maintenance
  • 4th grade gearbox ratio
  • Gearbox: planetary gearbox
  • Direction: CW/ CCW
  • Gear material: steel/powdered/POM
  • Housing material: steel


Packages Includes:

1 x Orange DC Planetary Gear Motor PG56/63ZY125-2440-168k 380KG.CM

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
