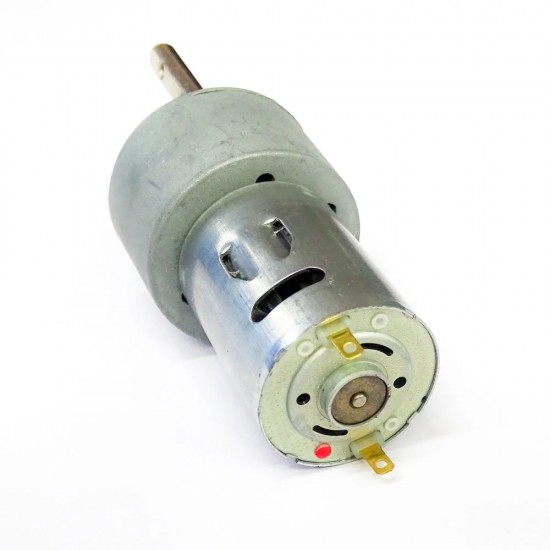

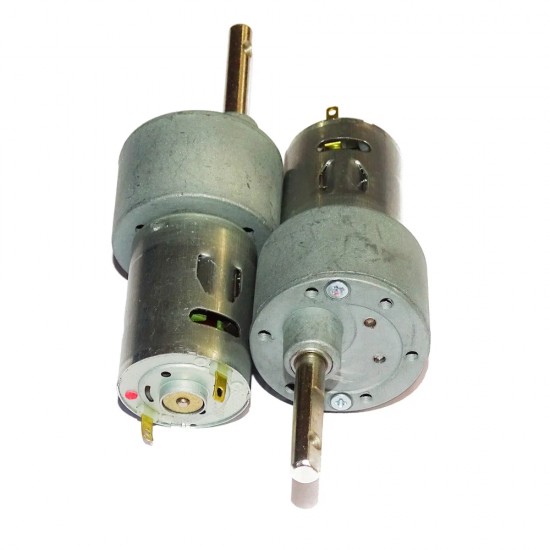

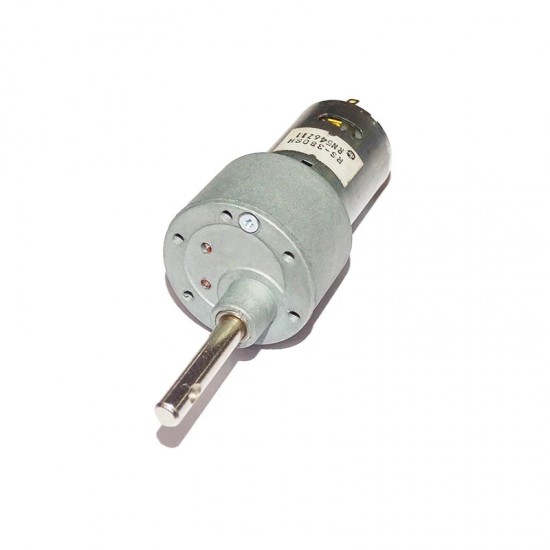

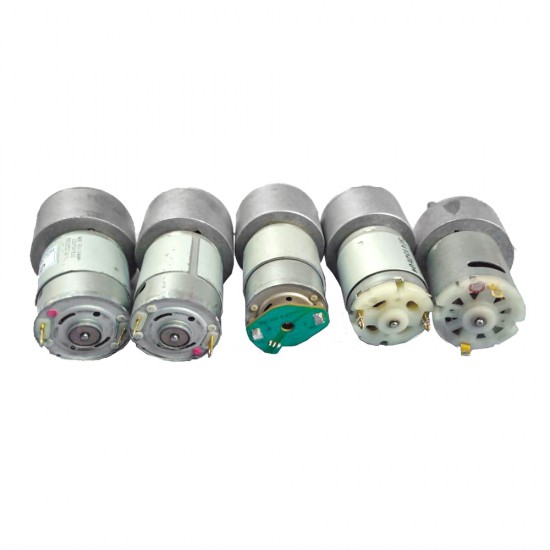

Johnson Geared Motor (Grade B) 200 RPM

Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Johnson Geared Motor (Grade B) 200 RPM
Based on 0 reviews. - Write a review
₹384.00
Ex GST: ₹325.42
  • Stock: In Stock
  • Model: 10018
  • SKU: SAT4188
  • Location: India
Orange Orange
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This Johnson Geared Motor from Robu.in provides torque which falls intermediate to the torques by center shaft gear motors and side shaft dc gear motors, at a reasonable cost .These “B Grade Johnson DC Motors” are in fame for their performance even at a low price compared to “Grade A Quality Johnson DC Motors”.(to know the difference between the two motors please read the Note below)It is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.

The Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.

Features:

  • The motor has a sturdy construction.
  • Shaft equips metal bushes for long life.
  • It comes with High-Quality gears.
  • The shaft has a hole for better coupling.

Specifications:

Rated Base Motor RPM: 18000

Gear Material: Metal

Rated Speed (RPM): 200

Operating Voltage (VDC): 6 ~ 18

Nominal Voltage (V): 12

Rated Torque(kg-cm): 3.9

Stall Torque(Kg-Cm): 15.6

No-Load Current (mA): 300

Load Current Max (mA): 900

Shaft Diameter (mm): 6

Shaft Length (mm): 30

Gearbox Diameter (mm): 37
