- Stock: In Stock
- Model: 10293
- SKU: SAT4463
- Location: India
ODROID-HC4 is new Home-Cloud platform based on the same ARM CPU as the ODROID-C4. We adopted a 12nm fabricated energy efficient 1.8Ghz Cortex-A55 quad core processor with faster 4GB DDR4 RAM. A 16MiB SPI flash chip exists on the board for the useful Petitboot feature.
Technical information at WiKi : https://wiki.odroid.com/odroid-hc4/odroid-hc4
- This page product doesn’t include OLED
We adopted a 12nm fabricated energy efficient 1.8Ghz Cortex-A55 quad core processor with faster 4GB DDR4 RAM. A 16MiB SPI flash chip exists on the board for the useful Petitboot feature.
We decided to drop the use of USB3.0 to SATA bridge solutions (quirks, additional IO layer, etc) for the ODROID HC4. We are therefore using a more native and reliable PCIe to SATA direct bridge solutions. In doing so the HC4 board provides two SATA storage docks.

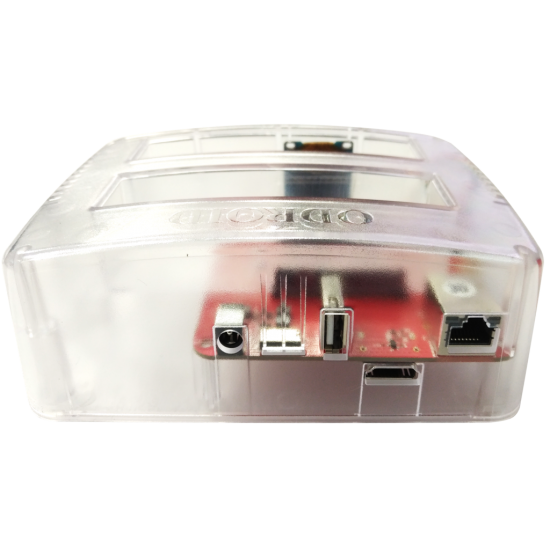

A 5.5mm DC power jack, UHS-1 compatible micro-SD slot, USB 2.0, HDMI 2.0 and 1GbE port are available on the rear side of the transparent shell case.
Board Detail
- A. CPU (Amlogic S905X3)
- B. DDR4 memory (4GiB)
- C. 2x SATA ports
- D. 1x RJ45 Ethernet port (10/100/1000)
- E. 1x HDMI 2.0
- F. 1x USB 2.0 host port
- G. 1x DC power jack (Outer diameter : 5.5mm, inner diameter 2.1mm)
- H. 2x System LED indicators
- I. 1x UART for system console
- J. 1x IR receiver
- K. 5x GPIO pins (for optional OLED display)
- L. 1x Micro SD slot
- M. 1x Cooling fan
- N. 1x Boot switch
Specifications
| FORM FACTOR | Board Dimensions: 84mm x 90.5mm x 25.0mm Heatsink Dimensions: 40mm x 32mm x 10mm Weight: 280g including heatsink, fan and case |
| PROCESSOR | Amlogic S905X3 Processor L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor ARMv8-A architecture with Neon and Crypto extensions Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) |
| MEMORY | DDR4 4GiB with 32-bit bus width Data rate: 2640 MT/s (PC4-21333 grade) 1.2Volt low power design |
| STORAGE | 1x Micro SD slot (DS/HS mode up to UHS-I SDR104) |
| NETWORKING | 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) * Green LED: Flashing by data traffics at 100Mbps connection * Amber LED: Flashing by data traffics at 1000Mbps connection |
| VIDEO | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) |
| AUDIO | 1 x HDMI digital output |
| COOLER | 1 x Hydraulic Bearing FAN 1 x Passive heatsink ( 40x32x10 mm ) on the CPU of PCB board |
| EXTERNAL I/O | 1 x USB 2.0 host port 1 x Debug serial console (UART) 2 x SATA Connectors |
| OTHER FEATURES | IR receiver for remote controller System LED Indicators: RED, BLUE |
| POWER | 1 x DC jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm |
PACKAGE INCLUDES:
1 x ODROID-HC4
