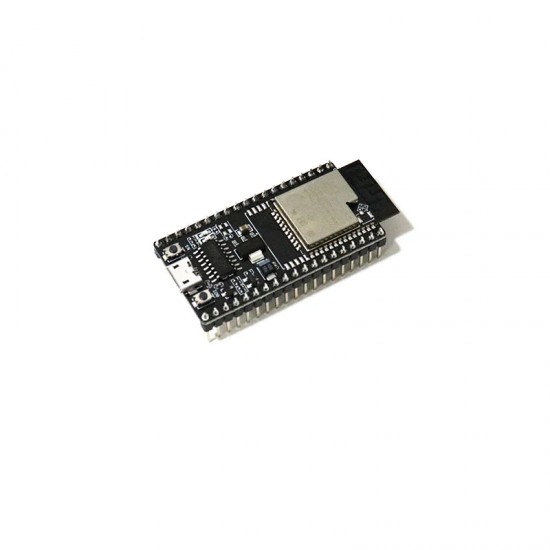

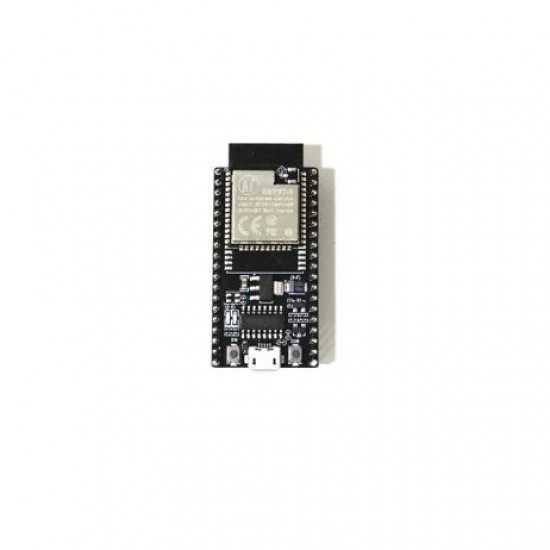

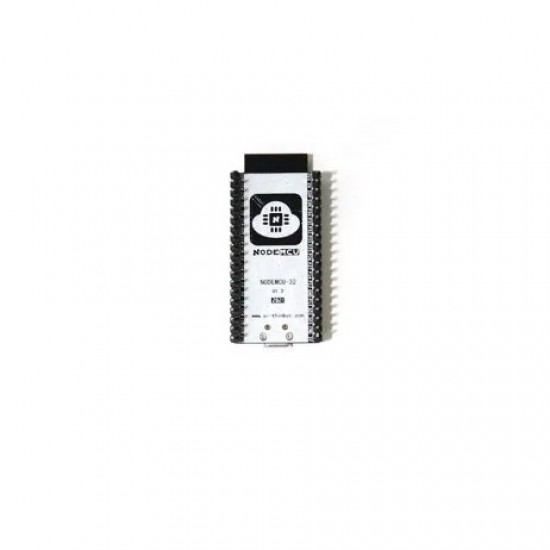

Ai Thinker NodeMCU-32S-ESP32 Development Board

Ai Thinker NodeMCU-32S-ESP32 Development Board
Ai Thinker NodeMCU-32S-ESP32 Development Board
Ai Thinker NodeMCU-32S-ESP32 Development Board
Ai Thinker NodeMCU-32S-ESP32 Development Board
Ai Thinker NodeMCU-32S-ESP32 Development Board
Ai Thinker NodeMCU-32S-ESP32 Development Board
Ai Thinker NodeMCU-32S-ESP32 Development Board
Based on 0 reviews. - Write a review
₹799.00
Ex GST: ₹677.12
  • Stock: In Stock
  • Model: 9211
  • SKU: SAT3381
  • Location: India
Ai-Thinker Ai-Thinker
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The core of this module is the ESP32 chip, which is scalable and adaptive. Two CPU cores can be individually controlled. The clock frequency is adjustable from 80 MHz to 240 MHz and supports RTOS.

It is a general-purpose  Wi-Fi+BT+BLE MCU module.ESP-WROOM-32s The module integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi. Wide range of uses: Wi-Fi supports a wide range of communication connections, as well as a direct connection to the Internet via a router; Bluetooth allows users to connect to a mobile phone or broadcast a BLE Beacon for signal detection.

The module supports data rates up to 150 Mbps and antenna output power of 20dBm for maximum wireless communication. As a result, this module has industry-leading specifications and performs well in terms of high integration, wireless transmission distance, power consumption, and network connectivity

Features:

802.11b/g/n （802.11n，speed up to 150Mbps）

WIFI Frequency Range 2.4GHz ~ 2.5GHz

Clock frequency adjustment range from 80 MHz to 240 MHz, support for

RTOS

Built-in 2-channel 12-bit high-precision ADC with up to 18 channels

Support UART/GPIO/ADC/DAC/SDIO/SD card/PWM/I2C/I2S interface

Support multiple sleep modes, ESP32 chip sleep current is less than 5 μA

Embedded Lwip protocol stack

Supports STA/AP/STA + AP operation mode

Supports remote firmware upgrade (FOTA)

General AT commands can be used quickly

Support secondary development, integrated Windows, Linux development

Package includes:

1 x Ai Thinker NodeMCU-32S-ESP32 Development Board
