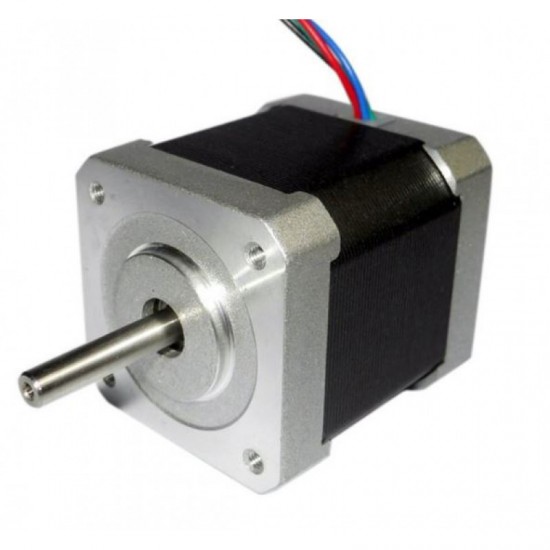

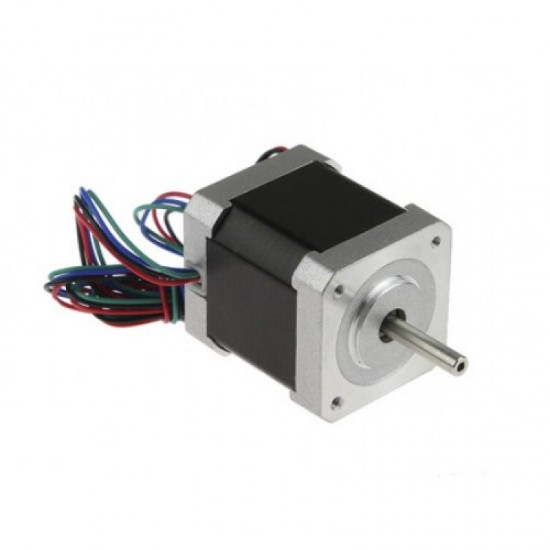

NEMA17 4.2 KGCM Stepper Motor

NEMA17 4.2 KGCM Stepper Motor
NEMA17 4.2 KGCM Stepper Motor
NEMA17 4.2 KGCM Stepper Motor
NEMA17 4.2 KGCM Stepper Motor
NEMA17 4.2 KGCM Stepper Motor
Based on 15 reviews. - Write a review
₹589.00
Ex GST: ₹499.15
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7485
  • SKU: SAT1647
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The NEMA17 4.2 kg-cm Stepper Motor can provide 4.2 kg-cm of torque at 1.2A current per phase. The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The NEMA17 4.2 kg-cm Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.


Features:

  • The input pulse decides the rotation angle of the motor.
  • High accuracy of around 3 to 5% a step.
  • Provides good starting, stopping, and reversing.
  • Control of this motor is less costly because of the exclusion of complex control circuitry.
  • The speed is proportional to the frequency of the input pulses.
  • Step Angle: 1.8°
  • Number of Phases: 2
  • Rated Voltage: 2.5-3.0V
  • Rated Current: 1.6A
  • Resistance per phase: 1.6E
  • Inductance per phase: 3mH
  • Holding Torque: 4.2 kg-cm
  • Weight:300 grams
  • Coil A: Red & Blue
  • Coil B: Green & Black
  • Length without shaft: 40mm
  • Shaft Length: 23mm
  • Shaft Dia: 5mm
  • Shaft Lenght: D-shaft
  • Width: 42mm

Package Includes:

1 x NEMA17 4.2 KGCM Stepper Motor
