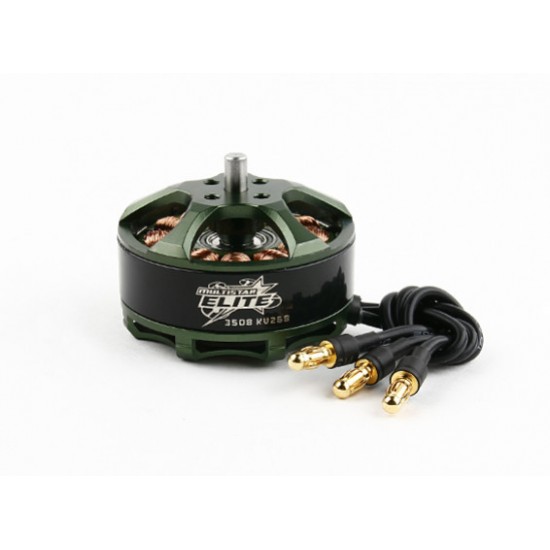

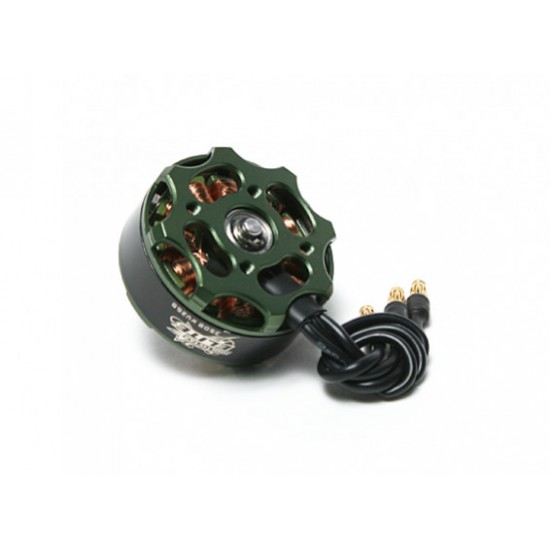

Multistar Elite 3508-268KV High Voltage Endurance Motor

Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Multistar Elite 3508-268KV High Voltage Endurance Motor
Based on 0 reviews. - Write a review
₹4,836.82
Ex GST: ₹4,099.00
  • Stock: In Stock
  • Model: 8097
  • SKU: SAT2259
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The Turnigy Multistar Elite Outrunners are designed with one thing in mind – maximizing Multi-rotor performance! The new Multistar Elite motors are the new standard in Multirotor performance. Each Elite motor is built for a specific type/application allowing for further refinement and efficacy/power to be optimized.

Multistar Elite motors are more than a fancy name and new dark green color.. Built using the highest quality components from EZO Japan bearings, n45sh Magnets, .2mm laminations, 180deg oxygen free copper wire, .005g balancing, Perfect wind laid down and 100% QC, and then the design of each motor are also evaluated for their type application and everything from their mounting, to the prop type adapters are taken into consideration. The Elite motors are truly works of art

The Elite 3508 268kv Has been optimized for 8s operation and a 12~14inch propeller.  The Motor comes with removable/replaceable knurled prop shaft and direct bolt style propeller mounting options. The high efficiency and low amp draw of HV setups take advantage of higher density/low C batteries, and offer record breaking flight times.

Multistar Elite is unmatched in quality and value, and the performance speaks for its self.


Features:

  • EZO Japan Bearings
  • N45SH Magnets
  • .2mm Laminations
  • 180deg oxygen free Copper wire
  • .005g Or better balancing
  • Perfect laydown windings
  • 100% QC

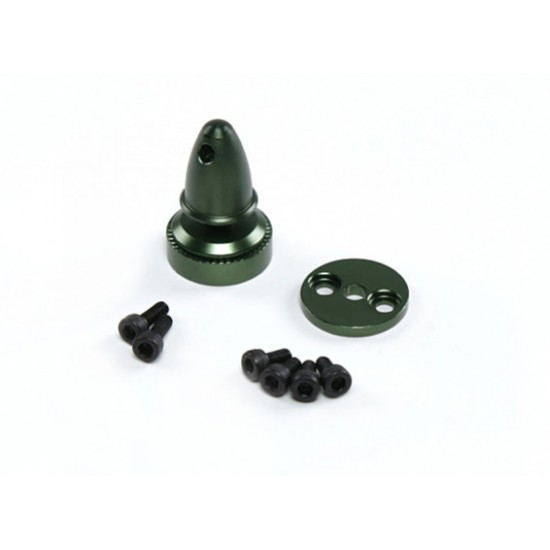

  • Replaceable CW/CCW prop adapter and direct bolt prop supported


Specs:

  • KV(RPM/V): 268KV
  • Lipo cells:  4-8 s
  • Max current:  330W
  • Max Amps:  11A
  • No Load Current:  0.13A/10V
  • Internal Resistance:  0.618 ohm
  • Number of Poles:  12/14
  • Dimensions(Dia.xL): 35×8 mm
  • Motor Shaft:  4mm
  • prop shaft: 5mm
  • Weight: 96g
  • bolt hole spacing: 19*25 mm
  • Lamination thickness: 0.2 mm
  • Magnets: N45 SH
  • Bearing: EZO Japan
  • Balancing spec: 0.005g


Prop data:

Multistar 3508 268KV @ 32V (8s)

12.5×6           50%  800g 4A      100% 1200g 7A

13×3.8 SF      50%  580g 1.5A    100% 1320g 4.9A

13×4.7 SF      50%  620g 2.2A    100% 1410g 5.2A

13×5.5 C        50%  670g 2.7A    100% 1600g 6.8A

14×4.7           50%  710g 3A       100% 1460g 7.8A


Multistar 3508 268KV @ 25V (6s)

14×4.7           50%  598g 2.4A   100% 1030g 5.6A

15×5 M.S.W   50%  712g 2.8A   100% 1144g 5.8A


A 680mm Hex such as the Tarot or 680UC pro Quanum AUW with battery and gimbal weighs 2.5~3.2Kg @ 3Kg/6(motors)=500g lift needed per motor to hover.


Hover efficiency 3508 268KV @ 32V (8s) 500g thrust x 6 =3K

12 wood                     1.96A

11×5.5 APC speed     2.3A

13×3.8 sf                     1.5A        (X 6= 9A hover)

13×4.7 sf                     1.6A

13×5.5 C                      1.6A

13×6.5 APC                 1.9A

14×4.7 sf                     1.4A        (X 6= 8.6A hover)

Hover efficiency 3508 268KV @ 25V (6s) 500g thrust x 6 =3Kg

15×5 Multistar White 1.7A         (x 6=10.2A hover)

14×4.7 SF                      2A


This sub 10A hover can allow the use of high density low discharge batteries. The increased capacity vs weight will increase flight time. Flights over 1 hour are possible with special batteries such as the Panasonic 18650 or GEB cells.
