MPR-121 Proximity Capacitive Touch Sensor Controller

MPR-121 Proximity Capacitive Touch Sensor Controller
MPR-121 Proximity Capacitive Touch Sensor Controller
MPR-121 Proximity Capacitive Touch Sensor Controller
MPR-121 Proximity Capacitive Touch Sensor Controller
MPR-121 Proximity Capacitive Touch Sensor Controller
MPR-121 Proximity Capacitive Touch Sensor Controller
MPR-121 Proximity Capacitive Touch Sensor Controller
Based on 11 reviews. - Write a review
₹199.00
Ex GST: ₹168.64
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7154
  • SKU: SAT1316
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

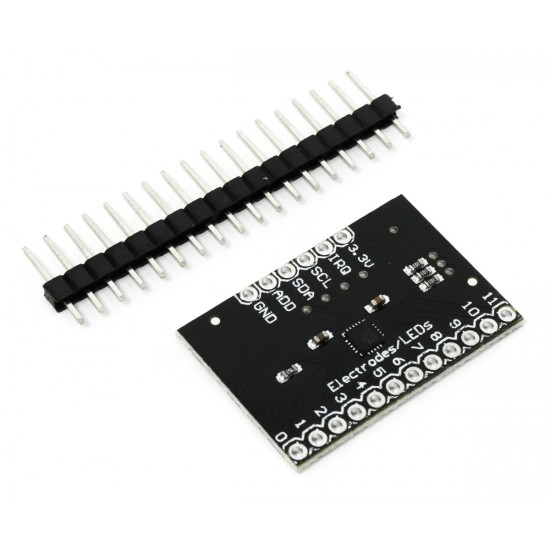

The MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode. The MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.

There a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to the ground, meaning the default I2C address of the chip will be 0x5A. If you need to change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL, and the interrupt pin to 10k pull-up resistors. If you don't require the pull-up resistors you can open the jumpers by cutting the trace connecting them.

There is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low-supply voltage mode (1.71-2.75VDC).


Specifications:

  • MPR121 Breakout Board
  • The capacitive touch sensor controller
  • Communication Protocol: I2C
  • Gives you 12 capacitive touch inputs and 1 virtual input
  • Features eight LED driving pins (When these pins are not configured as capacitive inputs, they may be used to drive LEDs)
  • Operating Voltage: 2.5 and 3.6V DC
  • Low-supply voltage mode (1.71-2.75VDC) activated by removing the 0.1uf capacitor between VREG and ground.
  • Size: 3 x 2cm (approx)


Package Includes:

1 X MPR-121 Proximity Capacitive Touch Sensor Controller.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
