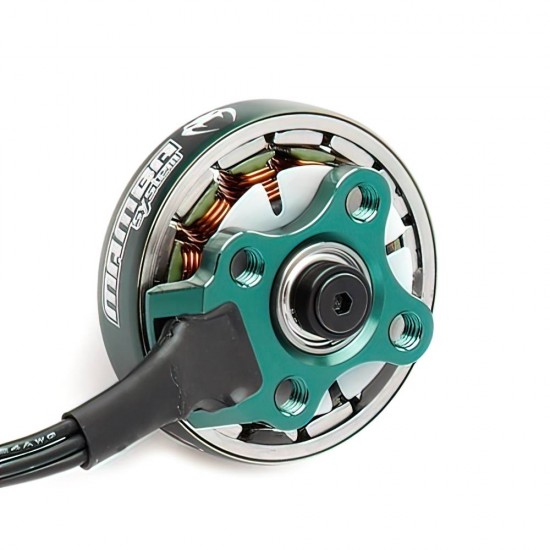

Diatone Mamba Toka 2203.5 Motor - 2200KV

Diatone Mamba Toka 2203.5 Motor - 2200KV
Diatone Mamba Toka 2203.5 Motor - 2200KV
Diatone Mamba Toka 2203.5 Motor - 2200KV
Diatone Mamba Toka 2203.5 Motor - 2200KV
Diatone Mamba Toka 2203.5 Motor - 2200KV
Based on 0 reviews. - Write a review
₹1,699.00
Ex GST: ₹1,439.83
  • Stock: In Stock
  • Model: 10404
  • SKU: SAT4574
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The Mamba Toka 2203.5 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3″-4″ builds!


Specifications

KV:1650

  • Installation hole position: 16×16mm, M3
  • Prop mounting shaft diameter: 5mm
  • Rated Voltage: 4S~6S (16.8V~25.2V)
  • Magnet Wire: 240℃ Enameled Wire
  • Lead Wire Size: 24AWG×190mm
  • Overall Dimension: 28.9×29.4mm
  • Internal Resistance: 232Ω
  • Maximum Power: 380.8W
  • Stator Diameter: 23mm
  • ldle Current: 10V/0.3~1.0A
  • Shaft Diameter: 22mm
  • Slots/poles: 12N14P
  • Stator Height: 3.5mm
  • Peak Current: 15.59A
  • Prop: 5inch
  • Bearing: 9x4x4


KV: 2200

  • Prop mounting shaft diameter: M5
  • Installation hole position: 16×16mm, M3
  • Rated Voltage: 4-6S (16.8V-25.2VV)
  • Magnet Wire: 240℃ Enameled Wire
  • Lead Wire Size: 24AWG×190mm
  • Overall Dimension: 28.9×29.4mm
  • Internal Resistance: 160Ω
  • Maximum Power: 466.5W
  • Stator Diameter: 22mm
  • Peak Current: 19.43A
  • Shaft Diameter: 4mm
  • Stator Height: 3.5mm
  • Slots/poles: 12N14P
  • ldle Current: 1.0A
  • Bearing: 9x4x4
  • Prop: 4inch


Includes

1x Diatone Mamba Toka 2203.5 Motor 2200KV

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
