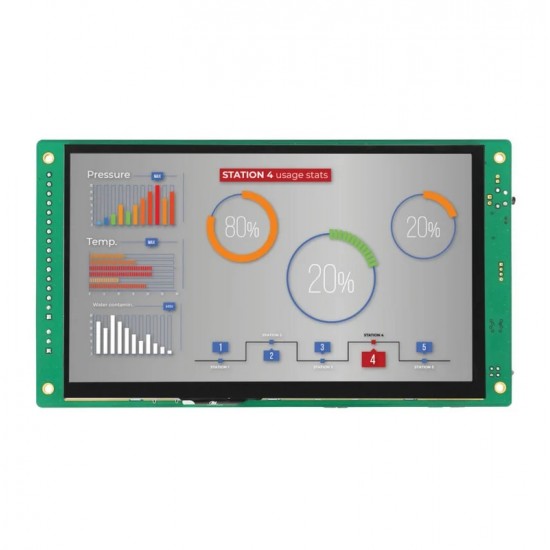

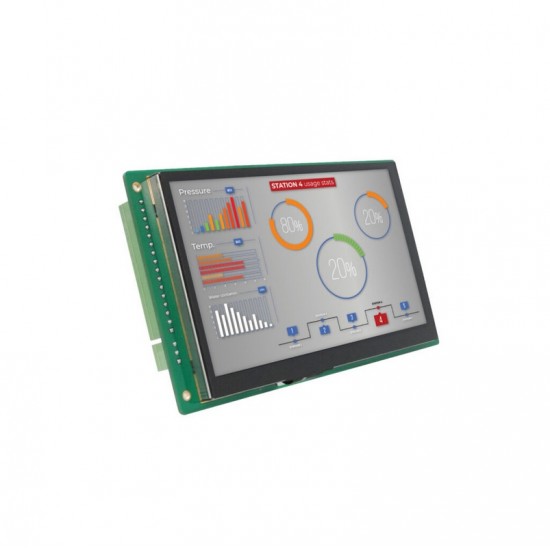

Chipsee EPC-A72-70-C Industrial embedded 7 Inch PC with Android OS
₹26,199.00
Ex GST: ₹22,202.54
- Stock: In Stock
- Model: 8980
- SKU: SAT3142
- Location: India
₹56.64
Ex GST: ₹48.00
₹17,319.00
Ex GST: ₹14,677.12

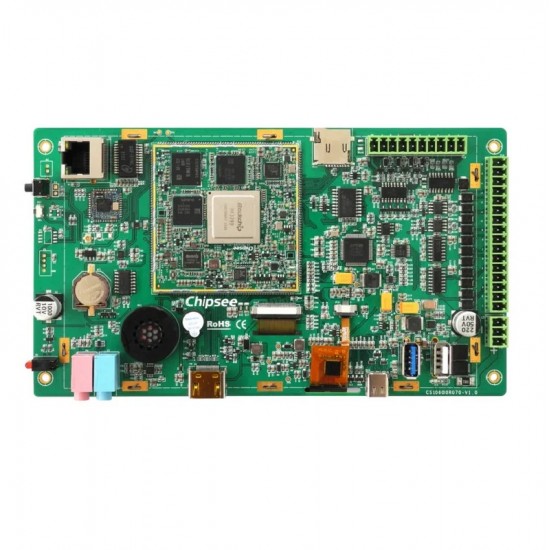

The EPC-A72-70-C (CS10600R070E) is a high-quality industrial embedded computer, that features a 7 inch LCD with a five-point capacitive touchscreen, an ARM dual Cortex-A72 (1.8GHz) plus Quad Cortex-A53 (1.4GHz) processor with 4GB DDR3 RAM and 16GB eMMC Flash, 1Gb Ethernet, 1 USB 2.0 port, 1 USB 3.0 port, 1 Type-C port, 1 LAN port, 4 RS232 connectors, and 2 RS485 connectors, as well as a 3.5mm audio connector.
Features:
- The EPC-A72-70-C has a 7’’ five-point capacitive touch screen, with a 1024×600 resolution
- Five-point capacitive touchscreens offer stable and accurate control over the device
- Capacitive touchscreens offer great image clarity
- They are also very durable and resistant to environmental contaminants like dust and water
- The EPC-A72-70-C has one channel 1Gb Ethernet port and one TF (uSD) card connector
- This device supports a TF card of up to 32GB
Specifications:
- Form-factor: Embedded
- Display Size (inch.): 7.0
- CPU: Rockchip RK3399
- RAM: 4GB DDR3
- External storage: TF (microSD) Card Slot
- FLASH: 16GB
- Resolution: 1024 X 600
- Brightness (NIT): 500 NIT
- Touch Screen: Capacitive
- Bluetooth: Onboard Bluetooth
- WiFi: Onboard WiFi
- HDMI: 1x HDMI
- Ethernet: 1x LAN 1000M
- USB: 1x USB 3.0 HOST, 1x USB Type-C, 1x USB 2.0 HOST
- GPIO: 8x GPIO
- RS232+RS485: Default 4xRS232 and 2x RS485 (1 debug port)
- Buzzer: Yes
- Power Consumption: 8W
- Power Input: 12~36V DC
- Working Temperature: -20°C ~ 70°C
- Mounting Method: Embedded Mounting
- Preinstalled OS: Android 7.1, Debian 10
- Weight:345 g
- Dimensions: 190 × 107 × 27.7 mm
Connection Diagram:
Packages Includes:
1 x Chipsee EPC-A72-70-C Industrial embedded 7 Inch PC with Android OS
