- Stock: In Stock
- Model: 9089
- SKU: SAT3259
- Location: India

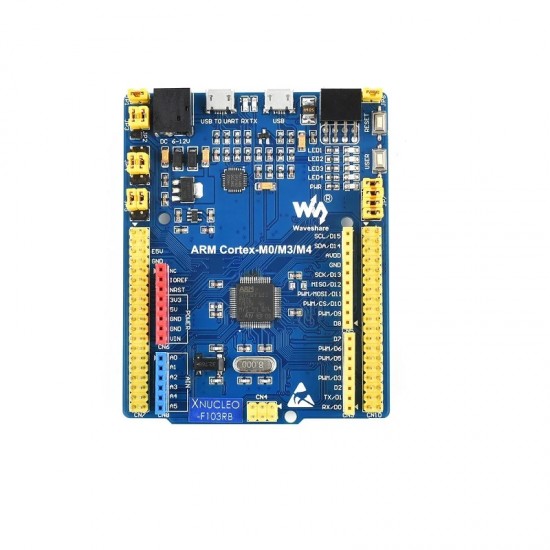

Waveshare XNUCLEO-F103RB, Improved STM32 NUCLEO Board
Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6
Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
Supports mbed, build prototype quickly by mbed SDK and online tools
Comprehensive free software HAL library including a variety of software examples
Comes with a separated ST-LINK/V2 module
What’s on the XNUCLEO-F103RB:
- STM32F103RBT6
- Core : ARM® 32-bit Cortex™-M3
- Operating frequency : 72MHz
- Operating voltage : 2.0V-3.6V
- Package : LQFP64
- Memories : 128kB Flash, 20kB SRAM
- Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
- AD/DA : 2 x AD (12 bit, 16 channels)
- SPX3819M5 : 3.3V voltage regulator
- AMS1117-5.0 : 5.0V voltage regulator
- CP2102 : USB to UART convertor
- Arduino connector : for connecting Arduino shields
- ICSP interface : Arduino ICSP
- USB TO UART : for debugging
- USB connector : USB communication interface
- SWD interface : for programming and debugging
- ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
- 6-12V DC input
- User button
- Reset button
- Power indicator
- User LED
- 500mA fast self-recovery fuse
- Serial port Rx/Tx indicator
- 8MHz crystal
- 32.768KHz crystal
- ADC/I2C selection jumper
- short A and B : Arduino A4, A5 is used as I2C
- short B and C : Arduino A4, A5 is used as ADC
- UART selection jumper
- MCU current test jumper : for low power tests
- Power selection jumper
- short 5V and U5V : powered from USB connection
- short 5V and E5V : powered from external power supply
- USB enable jumper
- short the jumper to enable
- open the jumper to disable
- User button jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
- User LED jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
Package Includes:
1 x Waveshare XNUCLEO-F103RB, Improved STM32 NUCLEO BoardWaveshare XNUCLEO-F103RB, Improved STM32 NUCLEO Board
