- Stock: In Stock
- Model: 8974
- SKU: SAT3136
- Location: India

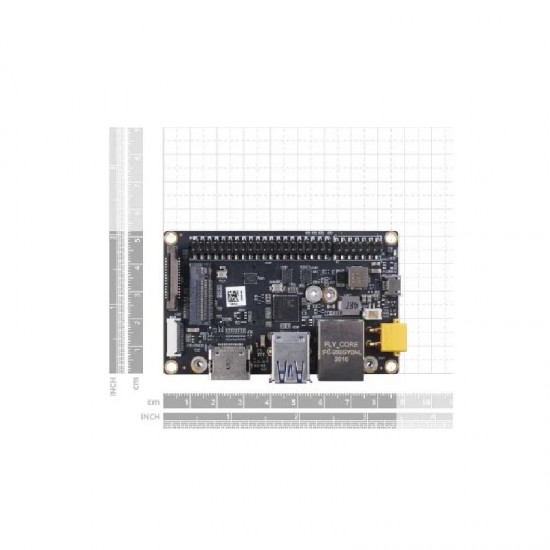

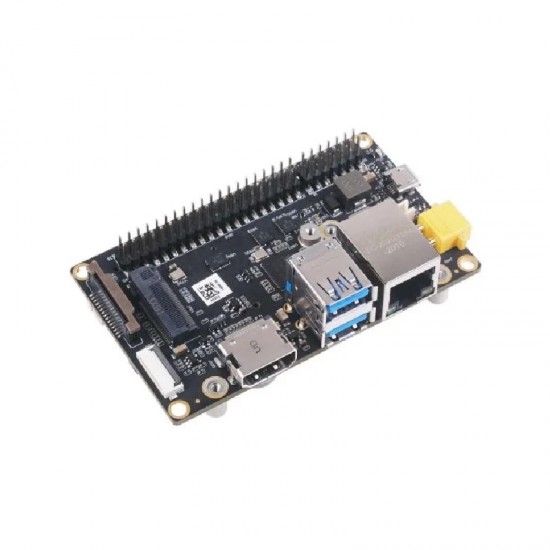

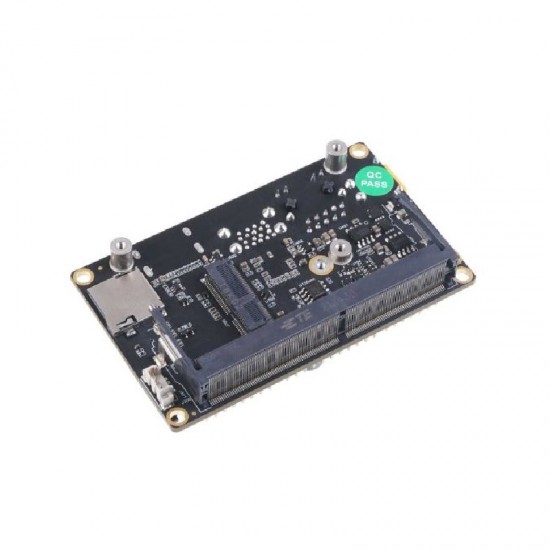

A203 Version 2 is an updated version of A203. It adds additional pins and one USB 3.0 20-pin ZIF Connector. It is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, M.2 key E Wi-fi / BT, M.2 key M solid-state drive, CSI camera, RS232, SD card, CAN, PIO, I2C, I2S, fan and other rich peripheral interfaces are suitable for environments with strict environmental requirements, small size and powerful functions.
Basically, it works with an NVIDIA module mentioned above to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX / TX2 NX module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and Tensor RT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It is suitable for small size AI graphical applications such as smart-city IoT edge devices, Home robots, UAVs, Unmanned boats and Unmanned submarines which need to have a lightweight, low power consumption and small overall design.
Applications:
- Home robots
- UAVs
- Unmanned boats
- Drone
- Unmanned submarines
- Sentiment Analysis
Features:
- Compact size (87mm x 52mm x 26mm) saves precious space
- Lightweight (100g) good for small AI or IoT Application
- Compact & all-in-one design
- Equipped with an anti-fall aviation plug that supports high currents
- Cost-effective, suitable for narrow and small operation environment
- Additional USB 3.0 ZIF connector compared to its original version(A203)
- Certificate: FCC CE RoHS
Packages Includes:
1 x A203 v2 Carrier Board
1 x Power Adapter 90W 19V (power cable not included)
1x Exchange line (XT30 female to DC Power Jack male)
