MD13S 13Amp DC Motor Driver – GROVE Compatible

MD13S 13Amp DC Motor Driver – GROVE Compatible
MD13S 13Amp DC Motor Driver – GROVE Compatible
MD13S 13Amp DC Motor Driver – GROVE Compatible
MD13S 13Amp DC Motor Driver – GROVE Compatible
MD13S 13Amp DC Motor Driver – GROVE Compatible
Based on 0 reviews. - Write a review
₹1,299.00
Ex GST: ₹1,100.85
  • Stock: In Stock
  • Model: 10286
  • SKU: SAT4456
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

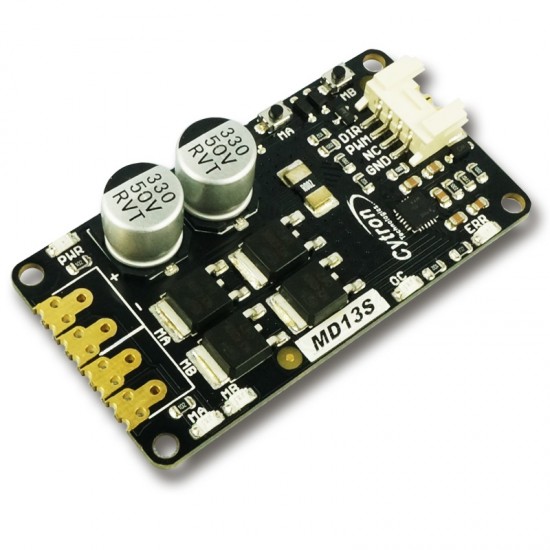

MD13S 13Amp DC Motor Driver has great improvement in current protection which MD10C does not have. With new circuit and desin, MD13S is able to output current to 30A max. And the continuous current is at 13A (in room temperature of 25°C).

Brush motor is the most used motor worldwide because of the ease of operation. Just supply two terminals of brush motor with DC voltage, it will start rotating! Yet, you need a good motor driver to control the speed and direction of a microcontroller. MD10C is a great motor driver and now it is already in Revision 3.

Anyway, we would like to introduce MD13S where the S stands for SMD (Surface Mount Device).

Oh, did I mention? MD13S is smaller than MD10C.

Features :

Bi-directional control for 1 brushed DC motor.

Support motor voltage ranges from  6V to 30V

Maximum current up to 13A continuous and 30A peak (10 seconds).

GROVE compatible

3.3V and 5V logic level input.

Solid state components provide faster response time and eliminate the wear and tear of a mechanical relay.

Fully NMOS H-Bridge for better efficiency and no heat sink is required.

Speed control PWM frequency up to 20KHz (Actual output frequency is the same as input frequency).

Support both locked-antiphase and sign-magnitude PWM operation, NOT RC (Radio Control) PWM.

SMD compatible.

Package Includes :

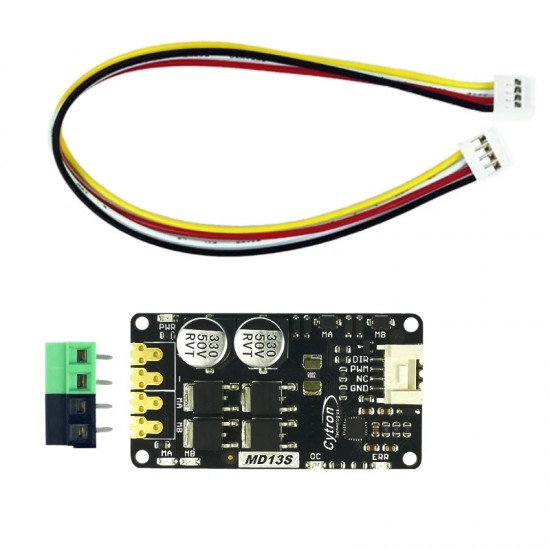

1 x MD13S 13Amp DC Motor Driver – GROVE Compatible

1 x Grove cable and accessories(as shown in the image)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
