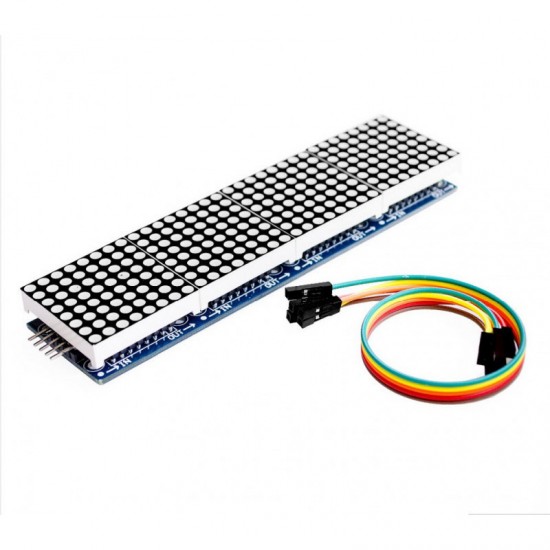

MAX7219 Dot Matrix 4 in 1 Display Module

MAX7219 Dot Matrix 4 in 1 Display Module
MAX7219 Dot Matrix 4 in 1 Display Module
Based on 11 reviews. - Write a review
₹439.00
Ex GST: ₹372.03
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7142
  • SKU: SAT1304
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

MAX7219 4-in-1 Display Dot Matrix Module is an integrated serial input/output common-cathode display driver, it connects the microprocessor 7-segment digital LED display with 8 digits, you can also connect a bar graph display or 64 independent LED.Thereon including a B-type BCD encoder chip, multi-channel scanning loop segment word driver, but also a static RAM 8 x 8 for storing each data. Only one external register is used to set the segment current of each LED.


Specifications:


  • Dimensions: 128 x 32  x 1.5cm(LxWxH)(All 4 in 1)
  • Dimension 32 x 32 x 1.5 cm (LxWxH) (Single Module)
  • A single module can drive an 8×8 dot matrix common cathode
  • Operating voltage: 5V
  • Weight: 55 gm
  • Fixing screws with 64 holes with a diameter 3mm
  • Module with input and output interfaces
  • Support for cascading multiple modules

Package Includes:

1 x MAX7219 Dot Matrix 4 in 1 Display Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
