MAX7219 Dot Led Matrix Module MCU Control LED Display Module

MAX7219 Dot Led Matrix Module MCU Control LED Display Module
MAX7219 Dot Led Matrix Module MCU Control LED Display Module
MAX7219 Dot Led Matrix Module MCU Control LED Display Module
MAX7219 Dot Led Matrix Module MCU Control LED Display Module
MAX7219 Dot Led Matrix Module MCU Control LED Display Module
Based on 12 reviews. - Write a review
₹149.00
Ex GST: ₹126.27
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7141
  • SKU: SAT1303
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

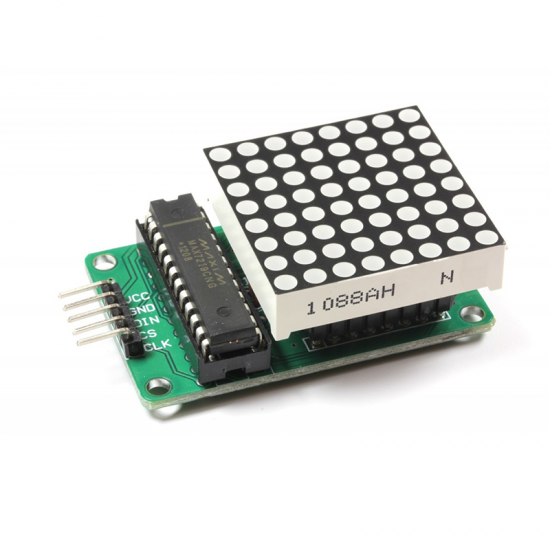

This is Dot Led Matrix Module incorporating the MAX7219 Driver chip. By using this dot LED module in your upcoming project,  you will be able to add some great cool animation.

The individual module features 8×8 LED’s, each controlled very precisely by the MAX7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc.

Connecting the two modules is also very easy. Only connect the output pins of the previous breakout board to the input pins of the new module, thus with such arrangement, you can connect as many DOT LED Modules to the Arduino as you wish!!!

The MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects. Only one external register is used to set the segment current of each LED.


Pin Connection:

Dot LED Module to the Arduino

VCC     –     5V

GND   –    GND

DIN    –    Pin 12

CS       –    Pin 10

CLK    –    Pin 11


Features:

  • Requires only 3 communication wires of MCU
  • Cascading multiple Matrix LED Module is very easy
  • Size of the display is very compact
  • The PCB features M3 holes for mounting.


Package Includes :

1 x Dot LED Matrix Module

1 x Connecting Wire

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
