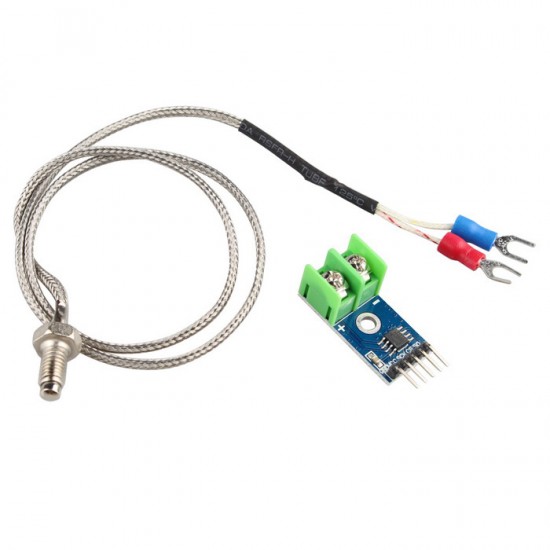

MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface for giving an accurate temperature-compensated measurement of the supplied K-Type thermocouple sensor.

It has a 12-bit resolution providing temperature readings from 0°C to 1024°C with a resolution of 0.25°C.

Features :

  • Internal integrated cold junction compensation circuit.
  • Temperature signals can be converted into 12-bit digital.
  • Embedded thermocouple break detection circuitry.
  • K-type temperature probe.
  • Simple SPI serial output temperature.
  • High impedance differential inputs.
  • Thermocouple break detection.
  • 2000V of ESD signal.
  • with fixed mounting holes for easy fixed installation.

Specifications:

  • Temperature measuring range: -2°C to 800 °C [Test procedure for 2-800 °C]
  • Temperature measurement accuracy: ± 1.5 °C
  • Storage temperature: -20 ~ 80 °C
  • Temperature resolution: 0.25 °C
  • The output mode: SPI digital signal
  • Working voltage: 3 ~ 5.5 V
  • Operating Current: 50mA

Package Includes:

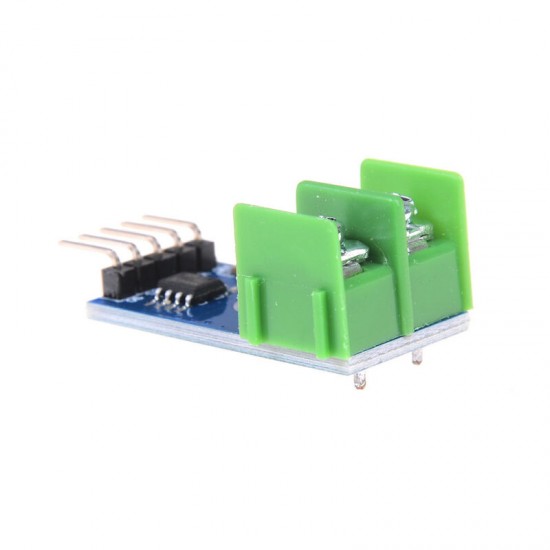

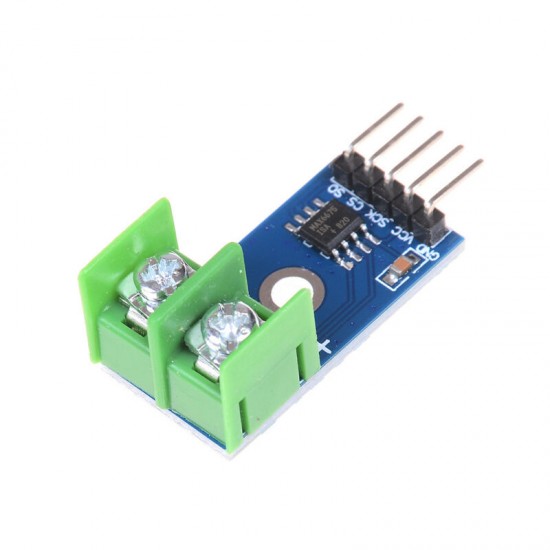

1 x MAX6675 Module

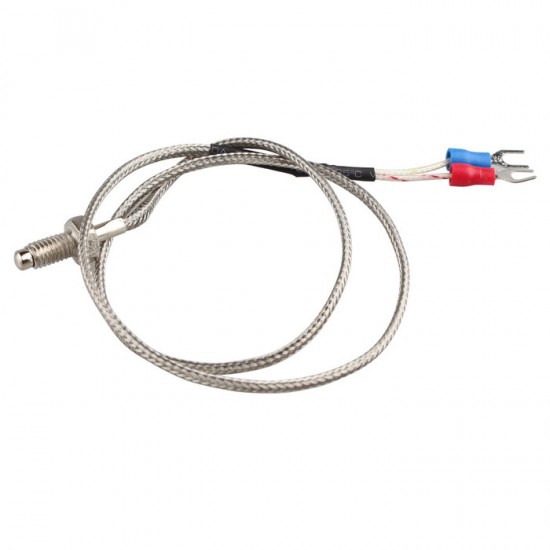

1 x K Type Thermocouple

6 Months Warranty
