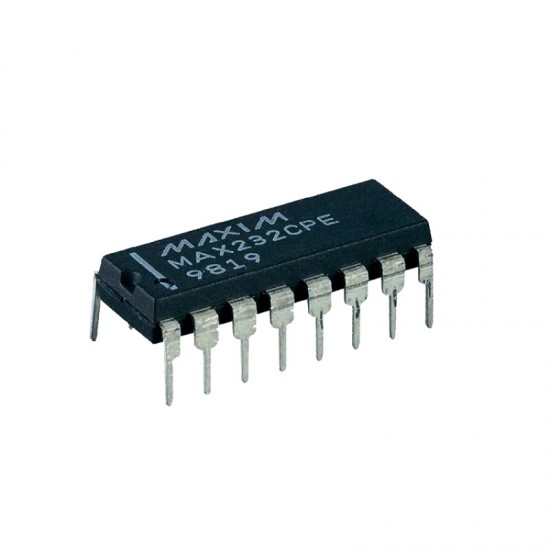

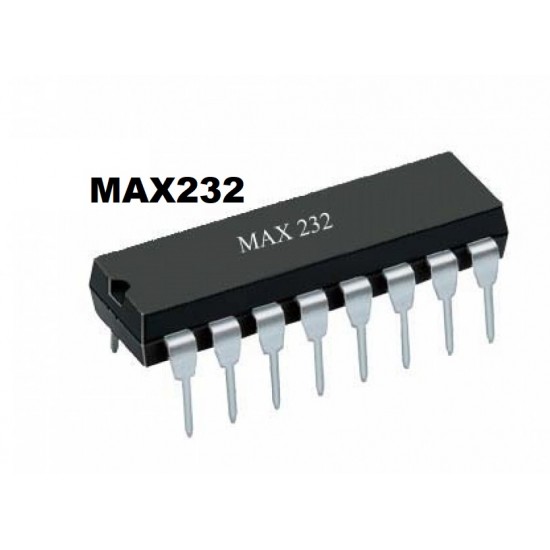

MAX232 - Dual Driver/Receiver IC

MAX232 - Dual Driver/Receiver IC
MAX232 - Dual Driver/Receiver IC
MAX232 - Dual Driver/Receiver IC
MAX232 - Dual Driver/Receiver IC
MAX232 - Dual Driver/Receiver IC
MAX232 - Dual Driver/Receiver IC
MAX232 - Dual Driver/Receiver IC
Based on 0 reviews. - Write a review
₹34.22
Ex GST: ₹29.00
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7539
  • SKU: SAT1701
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The MAX232 IC is used to convert the TTL/CMOS logic levels to RS232 logic levels during serial communication of microcontrollers with PC. The MAX232 is a dual driver/receiver and typically converts the RX, TX, CTS and RTS signals. The drivers provide RS-232 voltage level outputs (approx. ± 7.5 V) from a single + 5 V supply via on-chip charge pumps and external capacitors. This makes it useful for implementing RS-232 in devices that otherwise do not need any voltages outside the 0 V to + 5 V range, as power supply design does not need to be made more complicated just for driving the RS-232 in this case. The receivers reduce RS-232 inputs (which may be as high as ± 25 V), to standard 5 V TTL levels. These receivers have a typical threshold of 1.3 V, and a typical hysteresis of 0.5 V. The later MAX232A is backward compatible with the original MAX232 but may operate at higher baud rates and can use smaller external capacitors – 0.1 μF in place of the 1.0 μF capacitors used with the original device.

Features:

  • Superior to bipolar
  • 120kbits/sec Data Rate
  • Low Power Shutdown Current
  • Designed for RS232 and V.28 Applications
  • Three state TTL/CMOS Receiver Outputs

Applications:

  • Battery-Powered Systems requiring UART communication with COM port of older PC.
  • Connection of Modems to microcontrollers.
  • DIY projects for connecting to a COM port of a computer and various other components such as GSM module etc.
Datasheet: Download


Package Content:

1 x MAX232 - Dual Driver/Receiver IC

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
