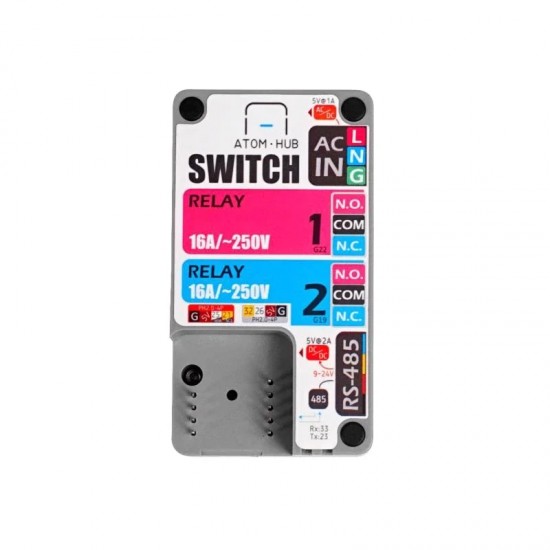

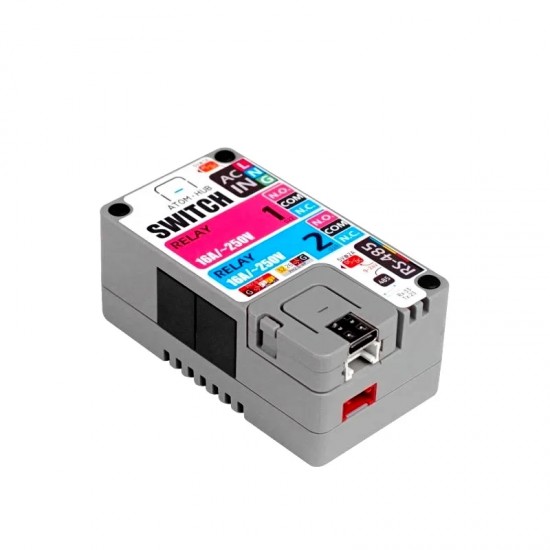

ATOM SWITCH is a bi-directional control programable switch for the M5ATOM. It can be connected to bi-directional AC circuits for simultaneous on-off control. The onboard relay can support up to 250V / 10A AC(Instantaneous current 16A).

The built-in step-down module can provide a 5V / 1A DC power supply for ATOM. In order to ensure safe use, its DC circuit has overheating and short circuit protection functions. In order to facilitate the use of users in industrial scenarios, an SP485EE level-conversion IC is built-in.

There are also a set of RS485 interfaces provided for the user to connect RS485 equipment.RS485 has the ability to supply power to ATOM, the support voltage is 9-24V. In addition, a set of HY2.0 interfaces is also provided for connecting I2C peripheral equipment or general I/O equipment.

With the Bluetooth and WiFi functions of M5ATOM, you can easily set up a remote control switch. If you have multiple M5ATOM HUB SWITCH modules, you can set them up in parallel through the RS485 interface.

Arduino:

Click here to download the Arduino example

Features:

Compatible ATOM Matrix/ATOM Lite

Built-in AC-DC circuit

2-way relay

Built-in RS485 level-conversion, supporting Modbus

HY2.0 port extend

Short circuit protection

Remote control via Bluetooth, WiFi, and RS485

Package Includes:

1x ATOM SWITCH

1x ATOM Lite

4x Magnet

1x double-side tape

1x DIN Rail

1x 3.96*4P plug

3x 3.96*3P plug

1x M4 Hex Key

1x M2 Hex Key

2x M4*10mm Hexagon countersunk screw

1x M2*20mm Hexagon socket cup head machine screw
