M5STACK BALA2 ESP32 Self-balancing Robot Kit

M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
M5STACK BALA2 ESP32 Self-balancing Robot Kit
Based on 0 reviews. - Write a review
₹6,769.00
Ex GST: ₹5,736.44
  • Stock: In Stock
  • Model: 9629
  • SKU: SAT3799
  • Location: India
M5 STACK M5 STACK
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

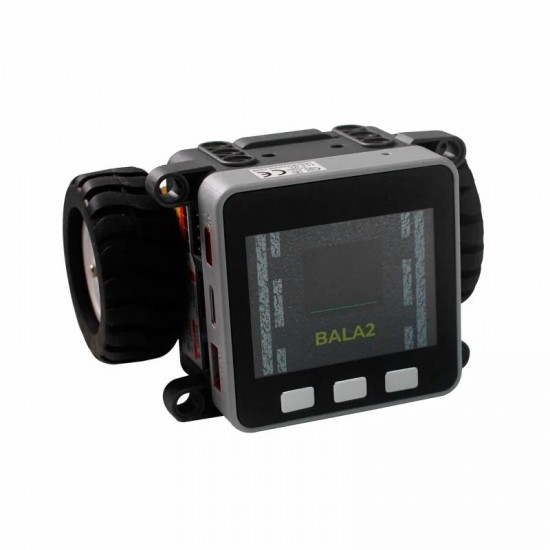

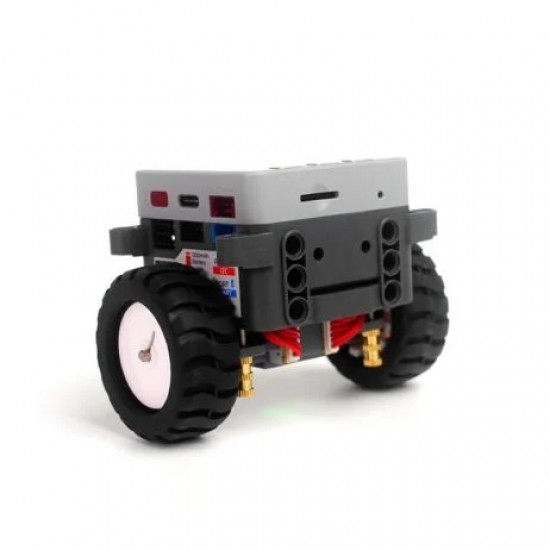

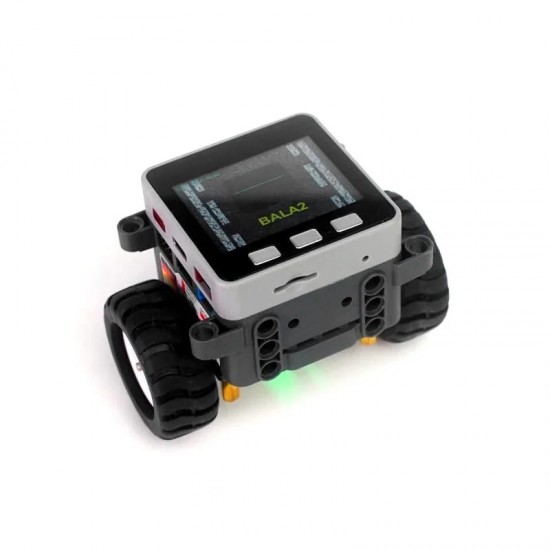

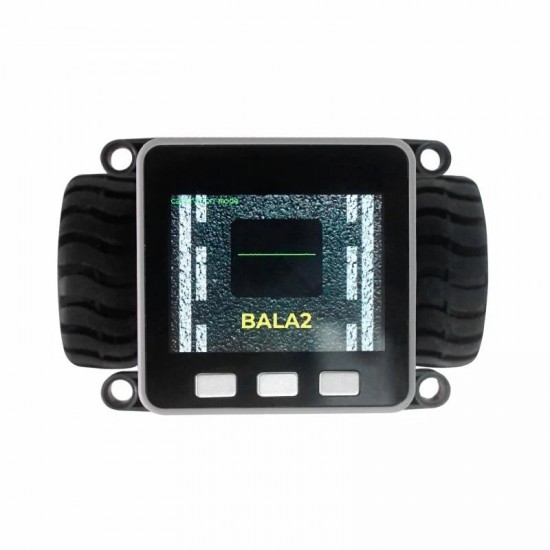

BALA2 is short for ‘Balance’, as its name suggests, it is the second generation of the M5Stacks balancing robot series. BALA2 is a Self Balancing Robot consisting of an M5Stack Gray and two wheels(DC motors). The base uses STM32F030C8T6 as the main control and has a two-way encoding motor driver and a built-in 1200mAh battery.

This robotics product comes with preloaded software. A self-balancing robot application that balances the robot vertically using a closed-loop algorithm. You can program it to automatically move around through programming, or you can combine WiFi and Bluetooth to develop remote control functions.

This Robot is controllable by a Smartphone device or a Transmitter. The BALA2 base contains a wealth of interfaces. In addition to the conventional PortB and PortC, it also supports 8-channel servos, of which 4 channels can be directly connected, and the remaining 4 channels need to be connected from the inside of the base. Even if you have never attempted such a balancing robot program, you can quickly get the hang of it and control it through UIFlow. The self-balancing robot uses data from the Accelerometer and Gyroscope to correct its orientation and position. The 2 DC driver module communicates with M5Stack Gray through I2C(0x3A).

Example:

To get complete code, please click, click

Tutorial&Quick-Start

Features:

  • 9-DOF IMU
  • Two-wheel drive, PID control balance
  • Grove extension ports
  • 8-channel servo drive, 4-channel external connection, 4-channel built-in
  • Support WiFi/Bluetooth, programmable
  • Built-in speaker
  • TF Card Support
  • LEGO™ Compatible
  • Programming Support
  • Python
  • UIFlow (Blockly)
  • Arduino

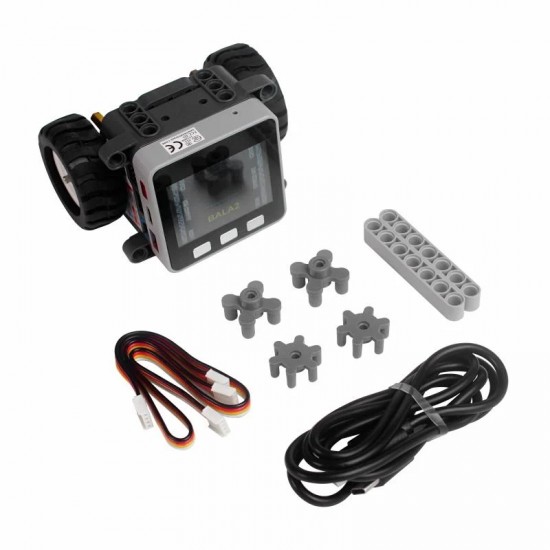

Package Includes:

1x M5Stack Gray + BALA2

4x Wheel connector

2x HY2.0-4P Cables(20cm)

2x Bricks

1x Hex wrench

Type-C USB Cable(120cm)
