Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth

Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth
Based on 0 reviews. - Write a review
₹3,699.01
Ex GST: ₹3,134.75
  • Stock: In Stock
  • Model: 8291
  • SKU: SAT2453
  • Location: India
Raspberry Pi Raspberry Pi
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

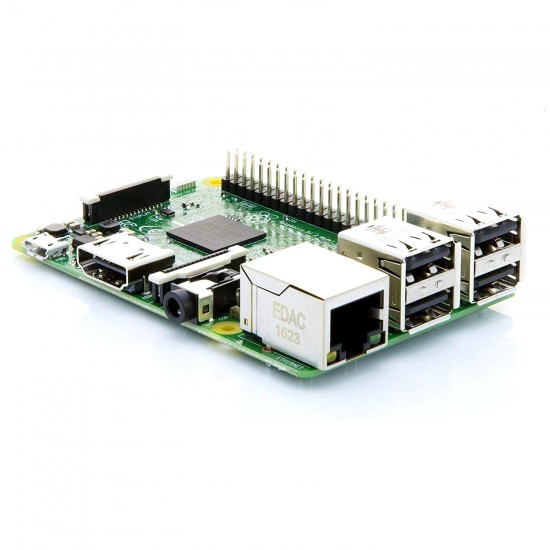

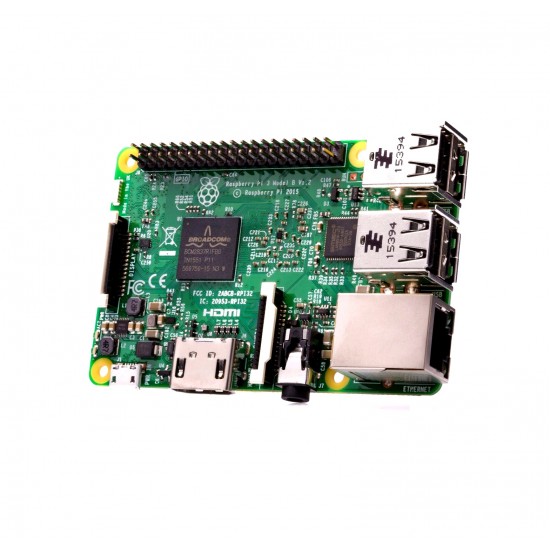

The Latest Raspberry Pi 3 – Model B Original quad-core 1.2GHz 64Bit SoC and onboard WiFi and Bluetooth is the latest product in Robu.in among raspberry pi family. The Latest Raspberry Pi 3 – Model B Original is a third generation product which maintains the same popular board format as other raspberry pi modules, but it has faster 1.2GHz 64Bit SoC, and onboard WiFi and Bluetooth

Raspberry Pi 3 Model B ARMv8 w/ 1GB RAM provides the same Pi features as before but with double the ram and a much faster processor. The Pi 3 has two major upgrades. The first is a next-generation Quad-Core Broadcom BCM2837 64-bit ARMv8 processor. This processor has speeds of up to 1.2GHz compared to the previous 900MHz on the Pi 2. The second upgrade is the addition of a built-in BCM43143 WiFi chip, allowing the Pi 3 to go wireless without additional peripherals. No more WiFi adapters. The Raspberry Pi 3 is also an excellent IoT solution with onboard Bluetooth Low Energy (BLE).

Back-Compatibility note: The Raspberry Pi 3 Model B original quad-core 1.2GHz 64Bit SoC and onboard WiFi and Bluetooth has the same footprint and layout as the previous Model 2/B+ version, so will fit all Model 2/B+ items. However, the addition of a WiFi & Bluetooth Antenna has resulted in the ACT and PWR LEDs being moved to the opposite side of the SD card slot. Cases for the 2/B+ with LED light pipes will fit the new RPi 3, but the light pipes will not match up with the LEDs.


Features :

Processor:

  • Broadcom BCM2837 chipset.
  • 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
  • 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)

GPU:

  • Dual-Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
  • Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure

Operating System:

  • Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT


Connectors and Ports:

Ethernet:

  • 10/100 BaseT Ethernet socket

Video Output:

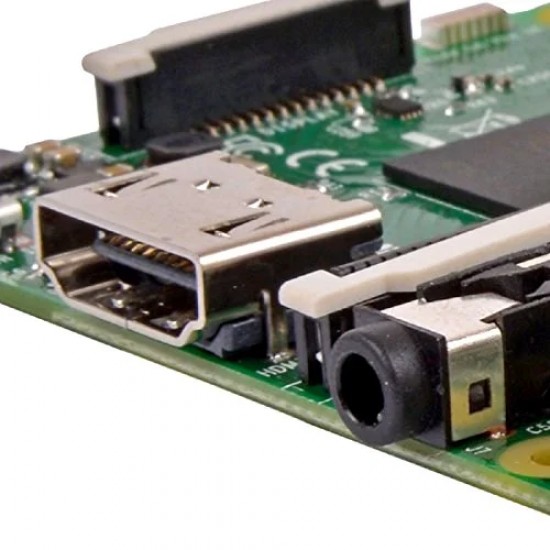

  • HDMI (rev 1.3 & 1.4)
  • Composite RCA (PAL and NTSC)

Audio Output:

  • Audio Output 3.5mm jack
  • HDMI
  • 4 x USB 2.0 Connector

GPIO Connector:

  • 40-pin 2.54 mm (100 mil) expansion header: 2×20 strip
  • Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines

Camera Connector:

  • 15-pin MIPI Camera Serial Interface (CSI-2)

Display Connector:

  • Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane

Memory Card Slot:

  • Push/pull Micro SDIO


Package Includes :

1x Raspberry Pi 3 – Model B Original with Onboard WiFi and Bluetooth

HardWare Specification
Clock Speed 1.2 GHz
Micro-SD Card Slot Yes
Model Pi 3 – Model B (Original)
On Board Ports 0/100 BaseT Ethernet socket, 15-pin MIPI Camera Serial Interface (CSI-2), 4 x USB 2.0 Connector, 40-pin 2.54 mm (2×20 strip) GPIO, Combined 3.5 mm audio jack and composite video, Composite RCA (PAL and NTSC), HDMI (rev 1.3 & 1.4), Push/pull Micro SD I/O,
Processor Broadcom BCM2837 chipset, 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
RAM 1GB LPDDR2
Weight (gm) 44
Shipment Weight 0.047 kg
Shipment Dimensions 8 × 6 × 4 cm
Operating Power 5V, 2.5~3A

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
