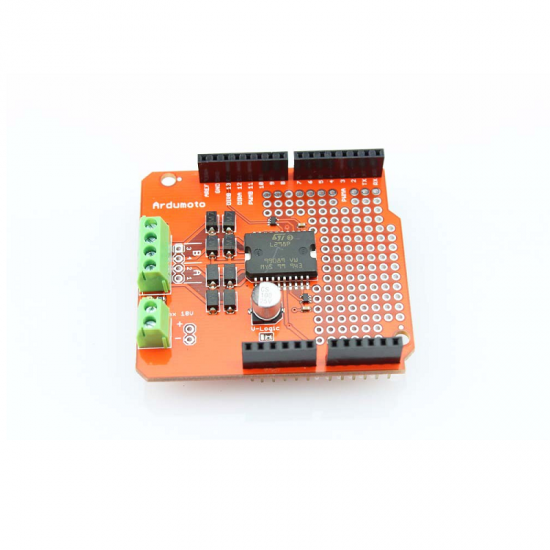

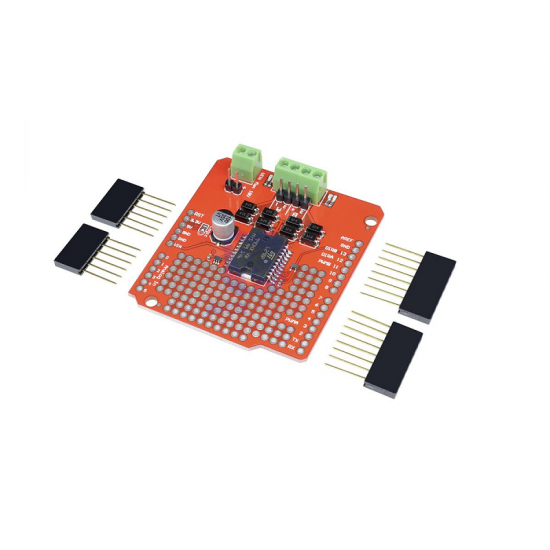

L298P Motor Driver Shield

L298P Motor Driver Shield
L298P Motor Driver Shield
L298P Motor Driver Shield
L298P Motor Driver Shield
L298P Motor Driver Shield
Based on 0 reviews. - Write a review
₹422.00
Ex GST: ₹357.63
  • Stock: In Stock
  • Model: 10280
  • SKU: SAT4450
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This is a motor shield for Arduino that can control two DC motors. Based on the L298P, the motor driver shield can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board, includes blue and yellow LEDs to indicate active direction, and all driver lines are diode protected from back EMF. The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has moved to pin 3. Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A). Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B).

Features:

  • A convenient motor interface can be divided into two motor outputs.
  • Forward and Backward steering are indicators.
  • Extra Soldering Points for Prototyping.
  • Maximum Supply Voltage: 18V

Package Includes:

1  x L298P Motor Driver Shield
